OPTICS

A wide range of optics to meet every need

Our optics ensure optimal light distribution to meet nearly every requirement. Whether for public squares, wide or narrow footpaths, or service roads and thoroughfares. You make the decision entirely according to what you require and prefer.

HARMOLIGHT® is a registered trademark that stands for particularly sustainable and environmentally friendly solutions. Part of this concept are the amber-coloured optics, which almost completely reduce the blue component of the light and enable us to meet the growing demands for sustainability and nature conservation. The amber-coloured optics are available in combination with the ASY12, ASY14, ASY26, CIR06 and SYM02 optics.

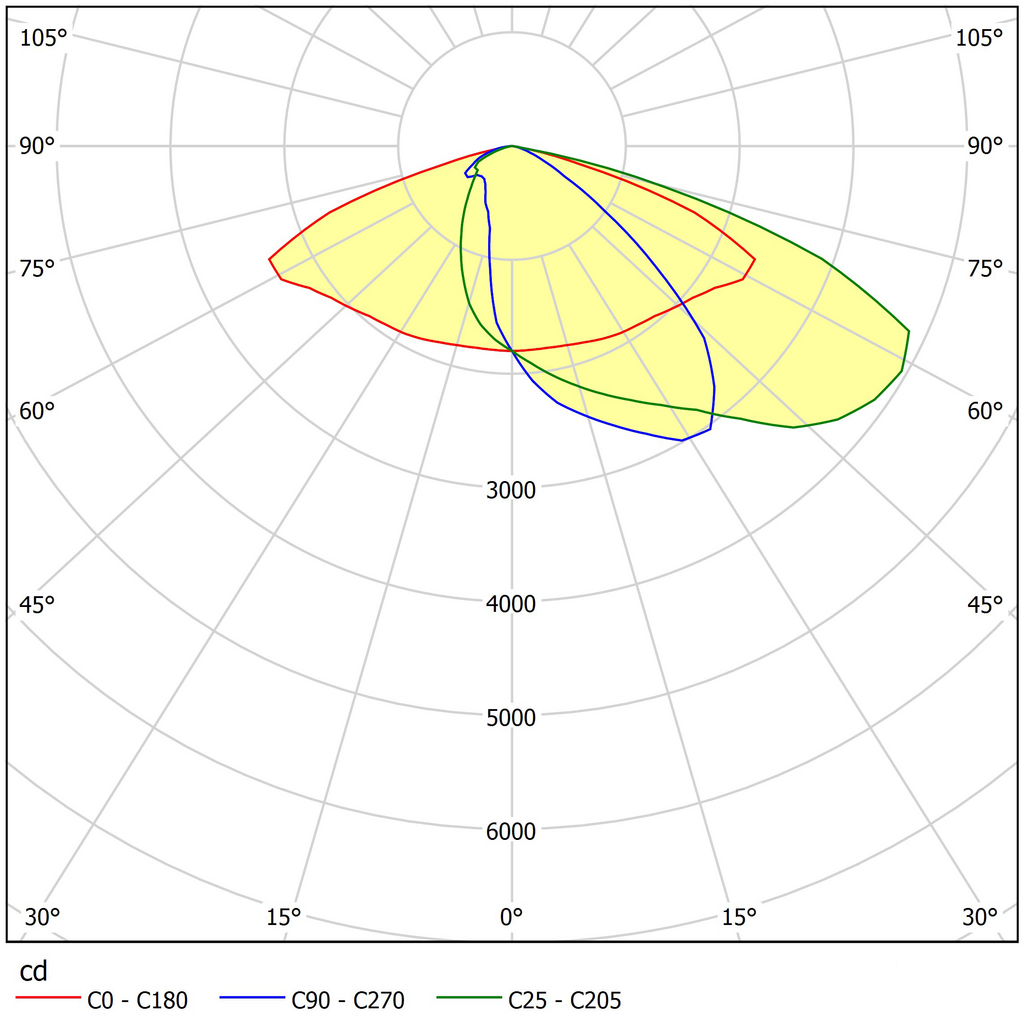

Optics ASY10

Light distribution: ASY10 asymmetrical wide beam
Possible application: streets, pathways

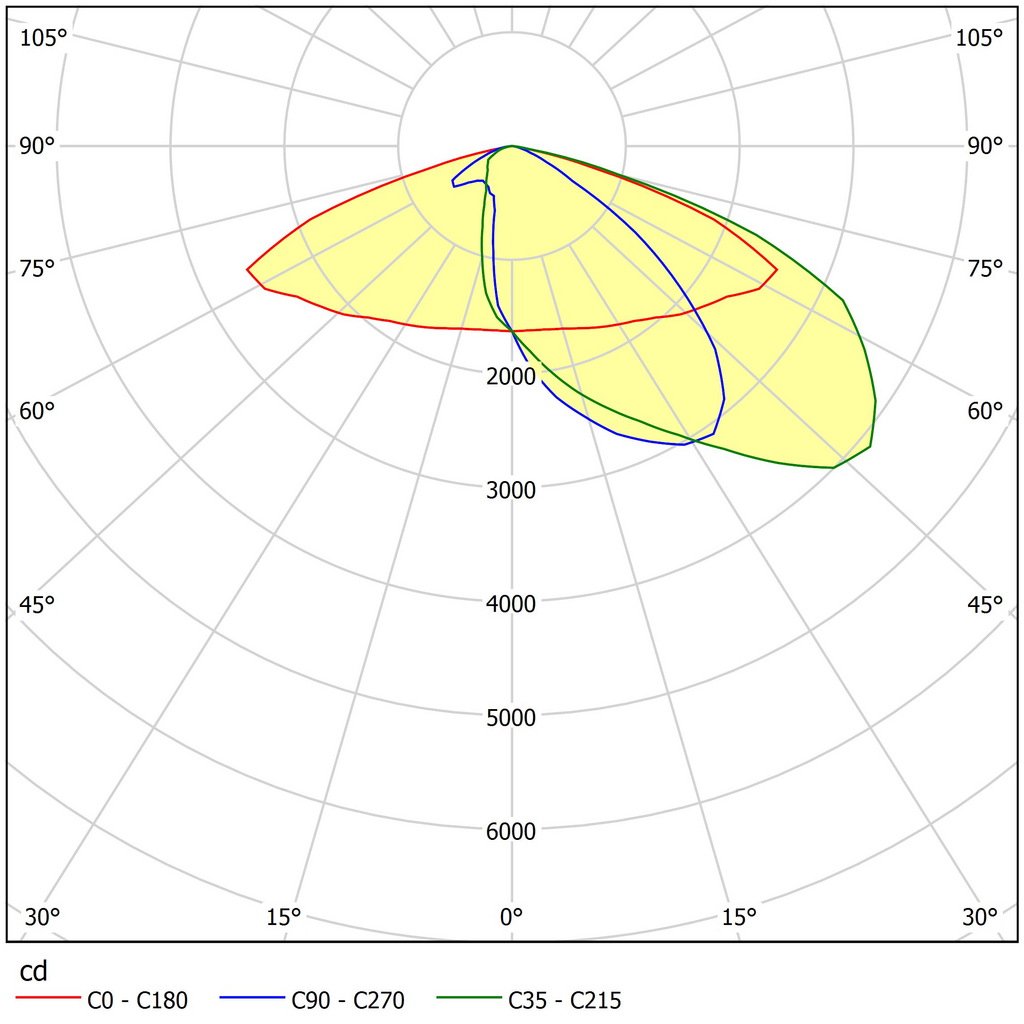

Optics ASY11 (equals O2)

Light distribution: ASY11 asymmetrical wide beam
Possible application: streets, pathways

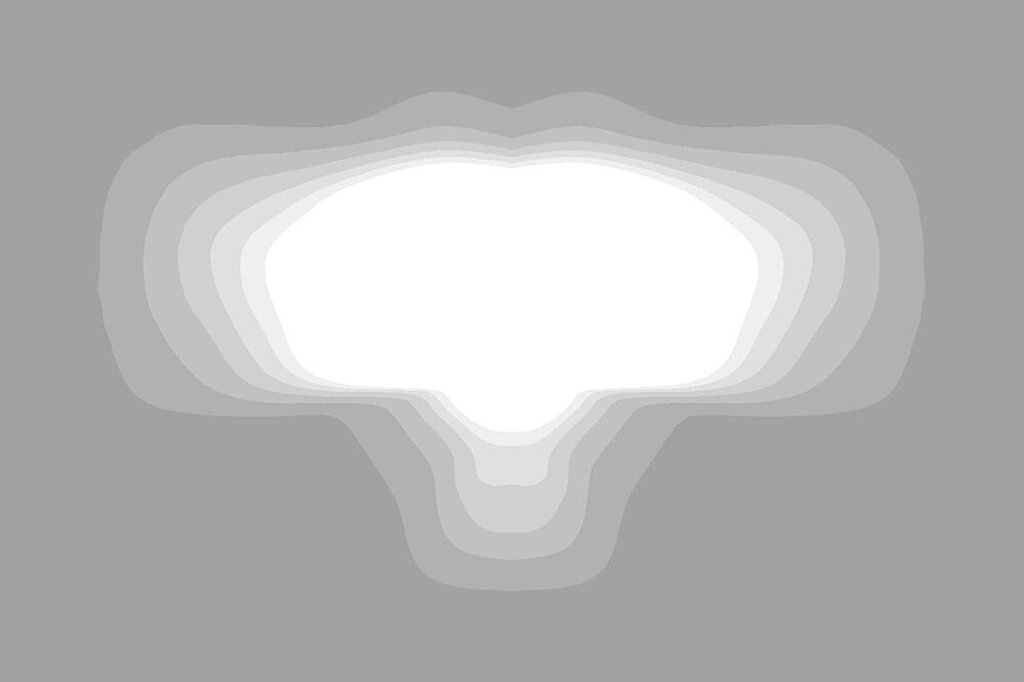

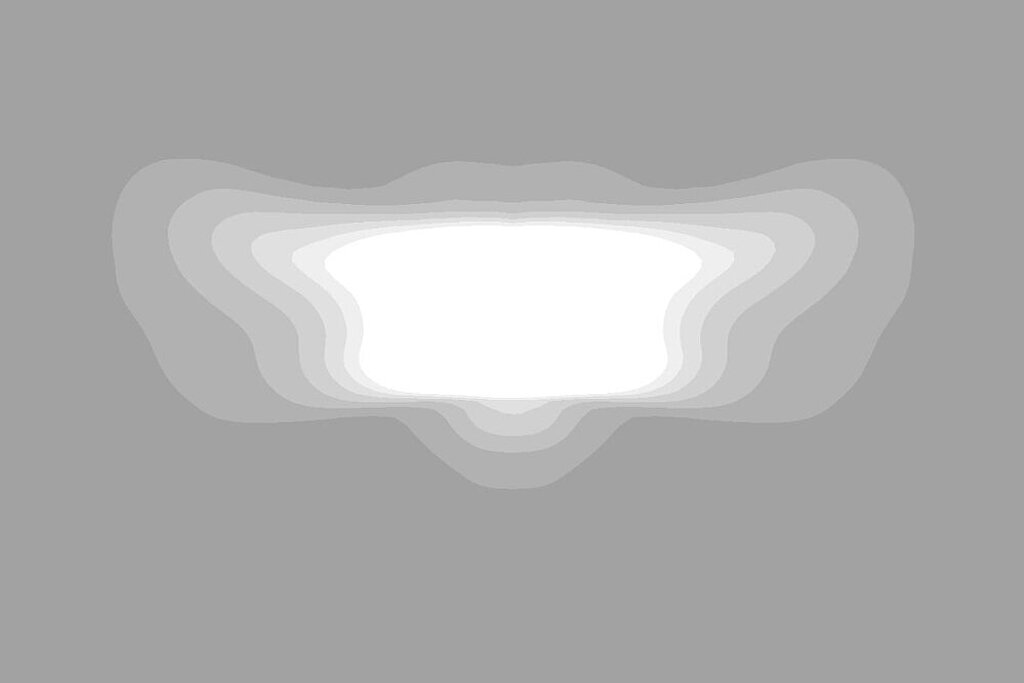

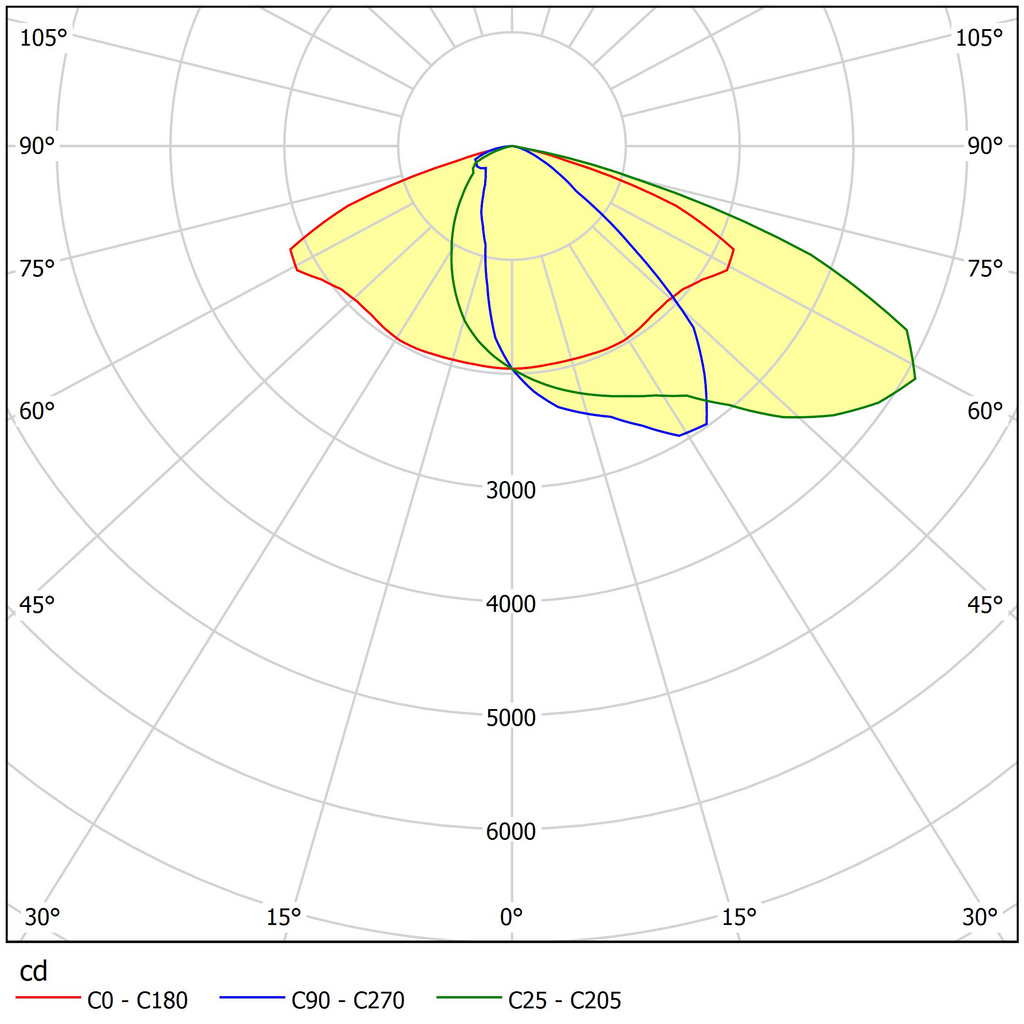

Optics ASY12 (equals O3)

Light distribution: ASY12 asymmetrical wide beam
Possible application: streets, pathways

Also available as amber-coloured optic.

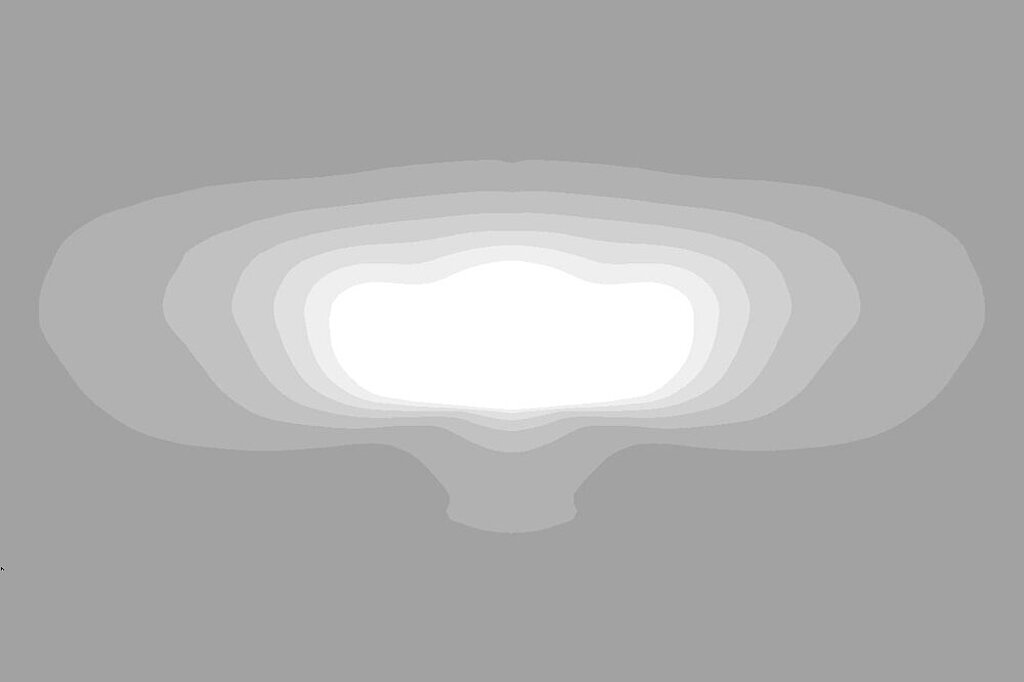

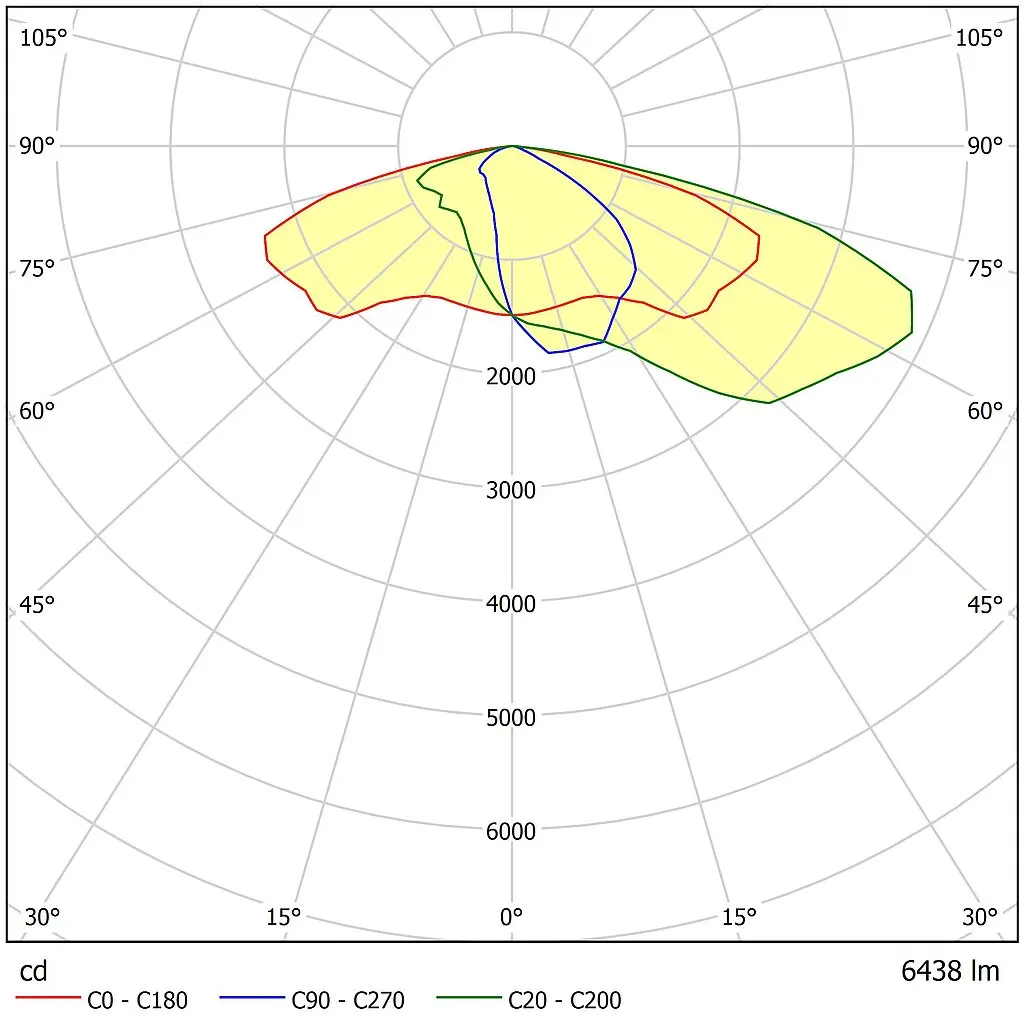

Optics ASY13 (equals O7)

Light distribution: ASY13 asymmetrical extra wide beam
Possible application: streets, pathways

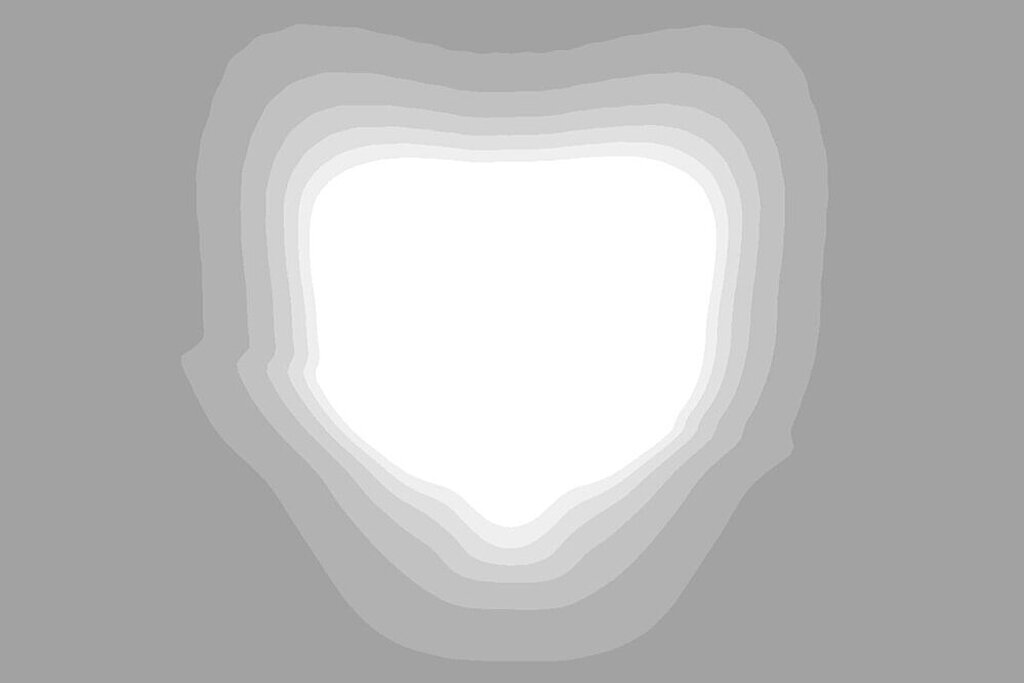

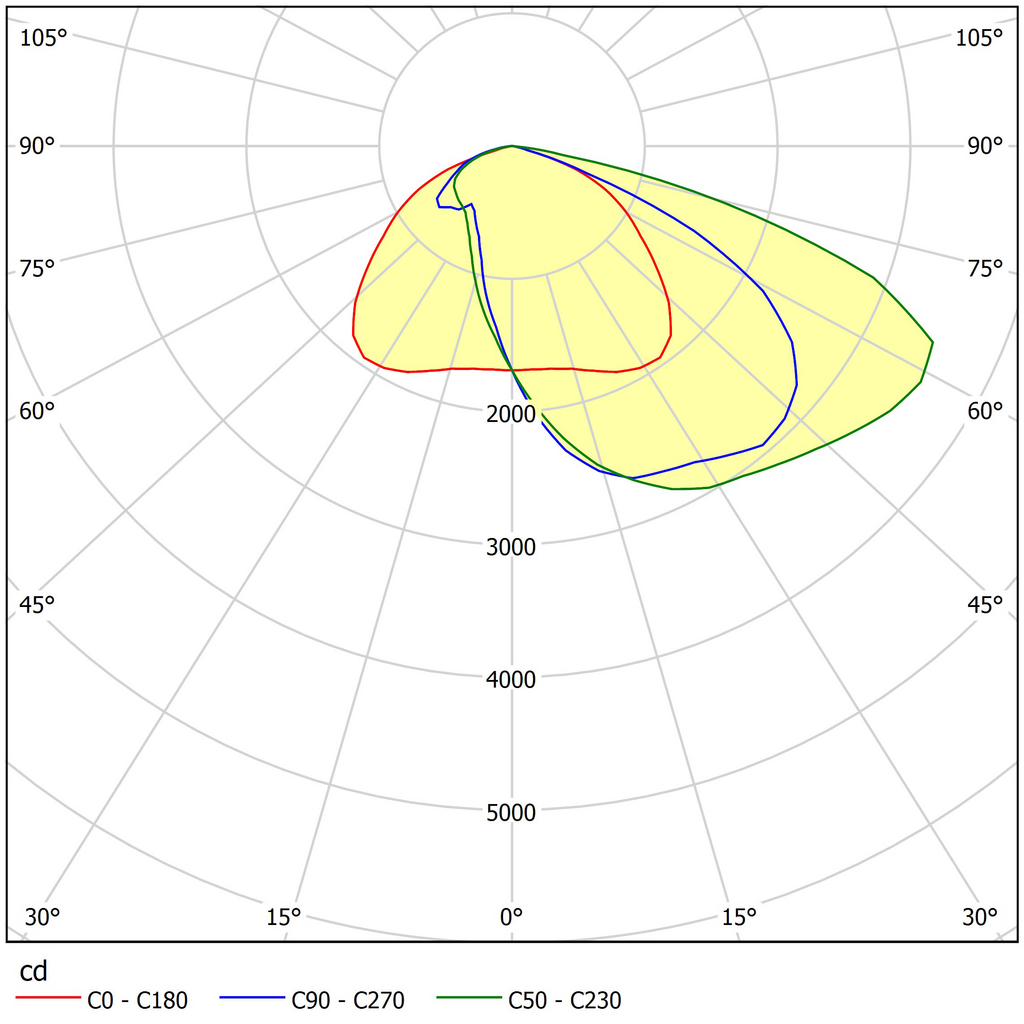

Optics ASY14 (equals O14)

Light distribution: ASY14 asymmetrical deep beam
Possible application: squares, traffic junctions

Also available as amber-coloured optic.

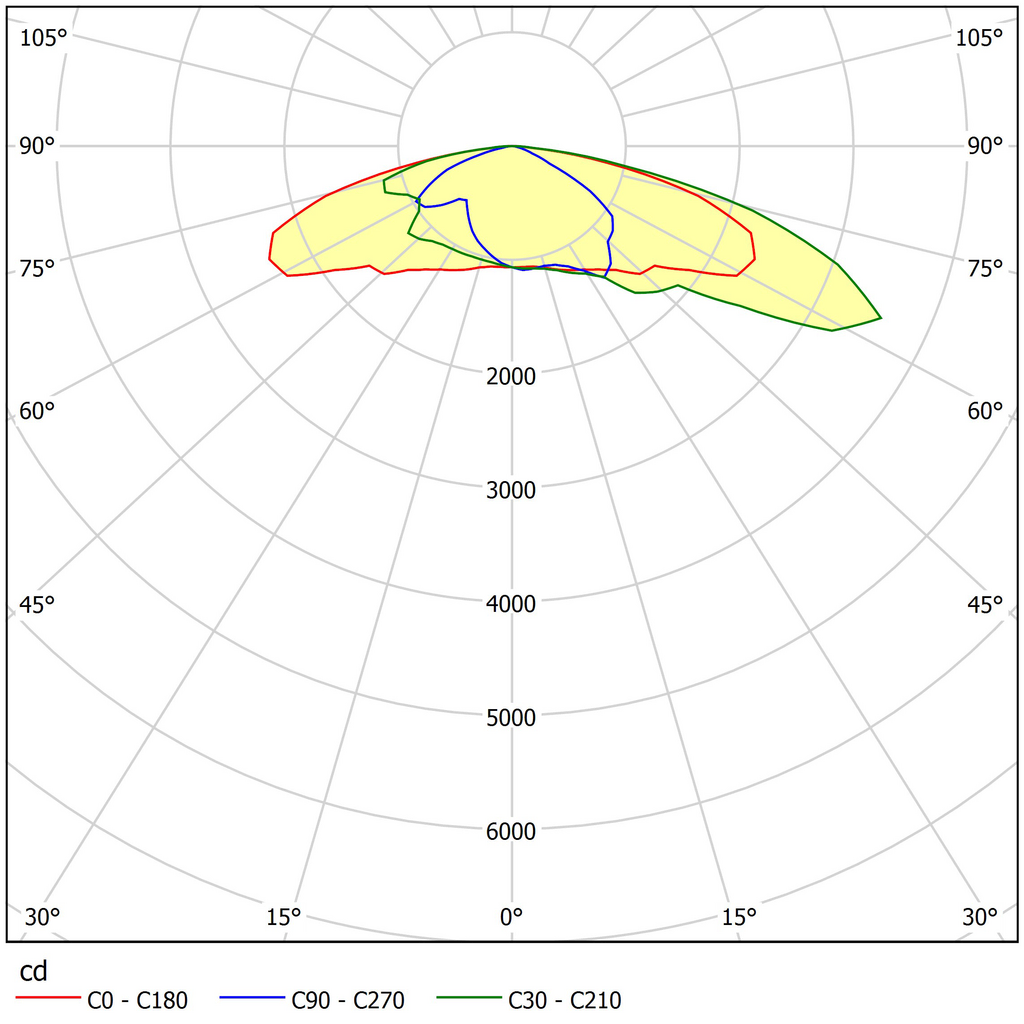

Optics ASY17 (equals O22)

Light distribution: ASY17 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares

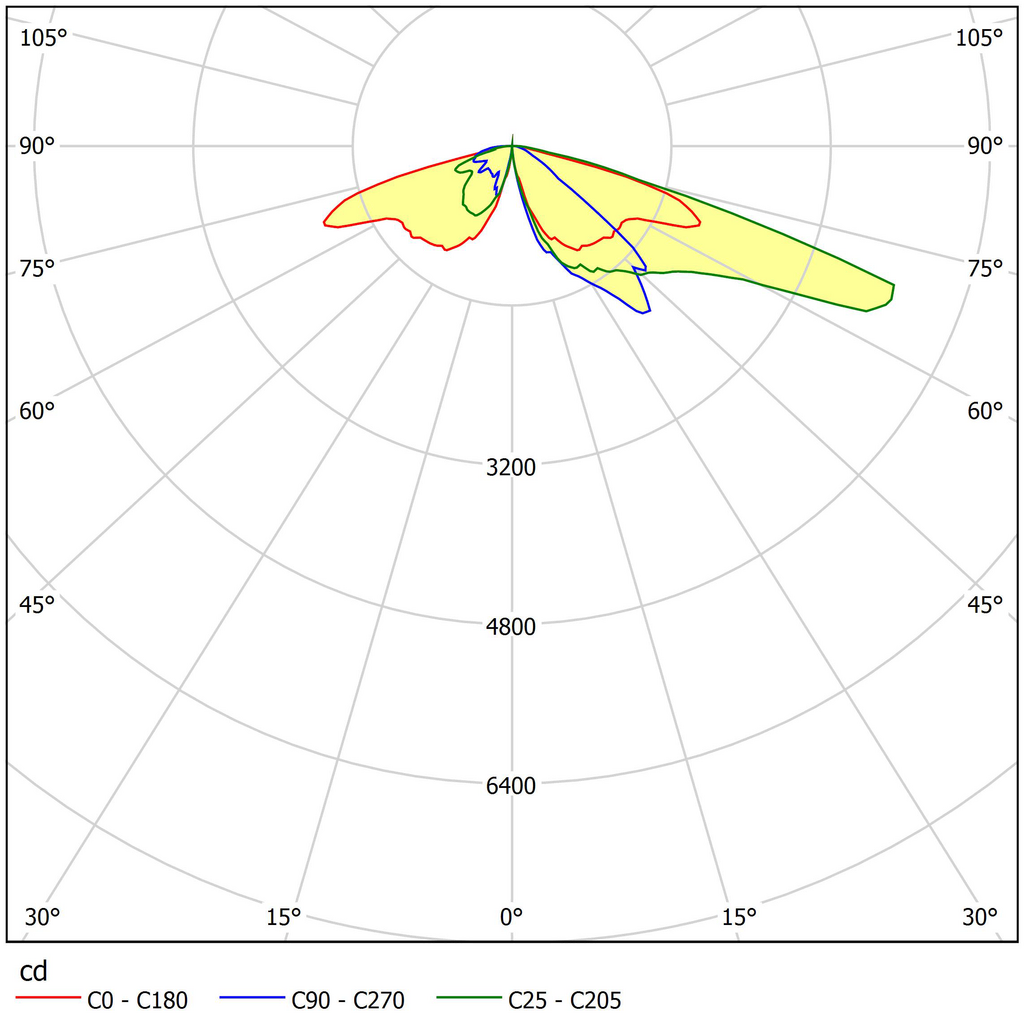

Optics ASY23 (equals O3 HP)

Light distribution: ASY23 asymmetrical wide beam
Possible application: streets, pathways, squares

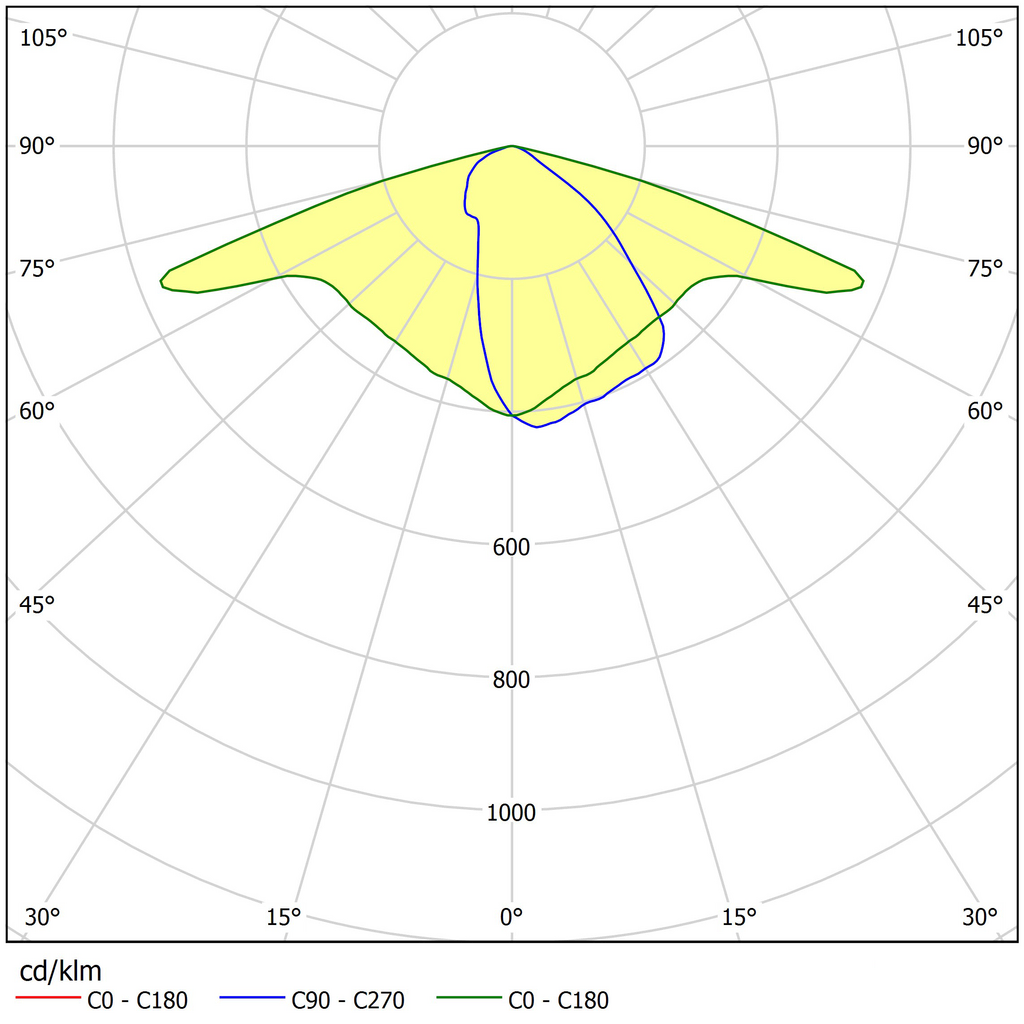

Optics ASY26

Light distribution: ASY26 asymmetrical wide beam
Possible application: streets, squares, traffic junctions

Also available as amber-coloured optic.

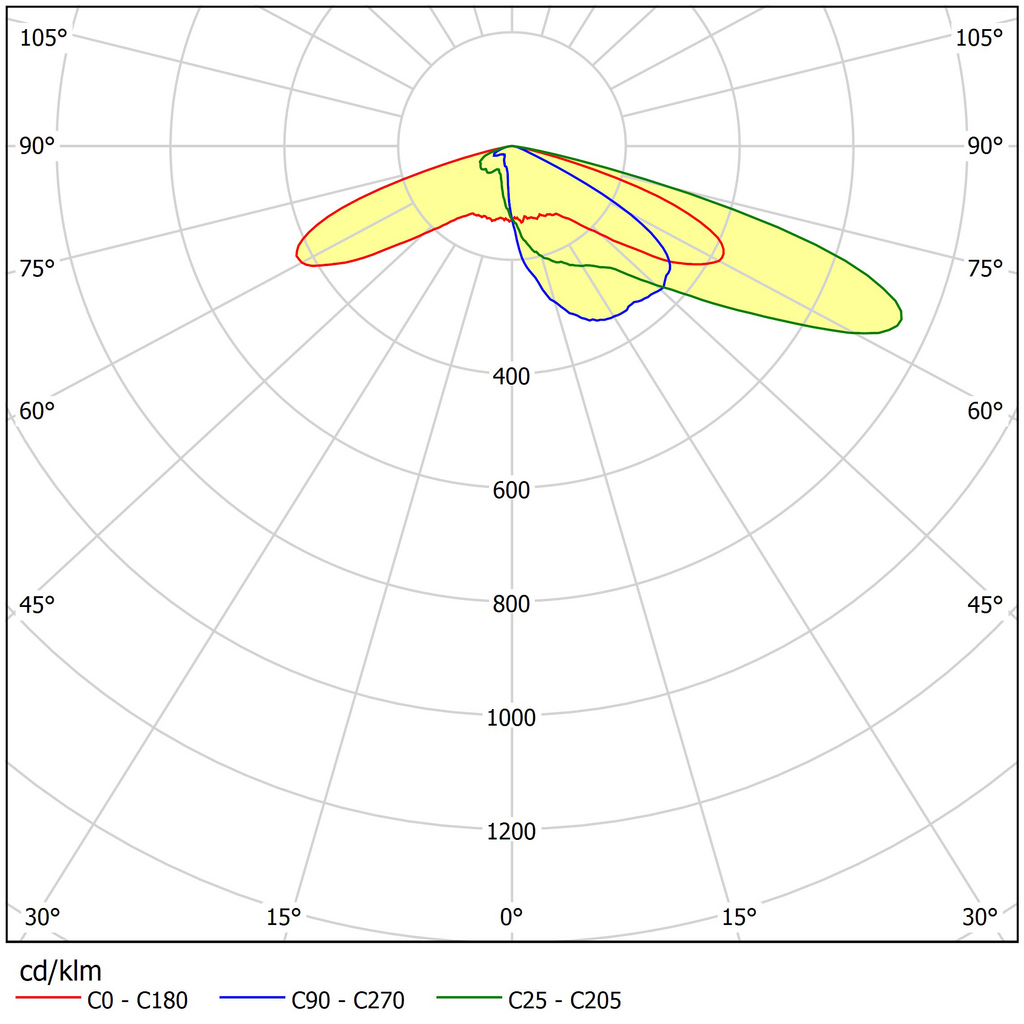

Optics ASY27

Light distribution: ASY27 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares

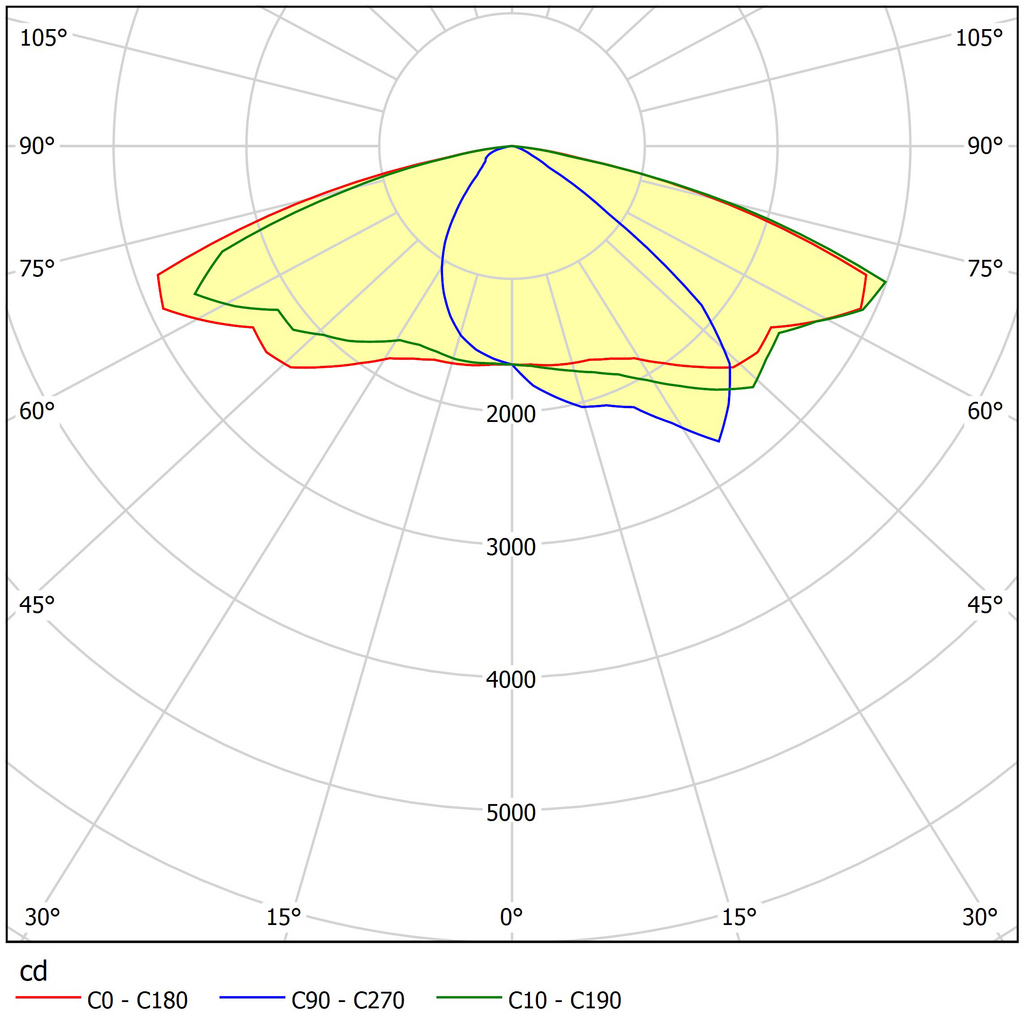

Optics ASY28 (equals O28)

Light distribution: ASY28 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares

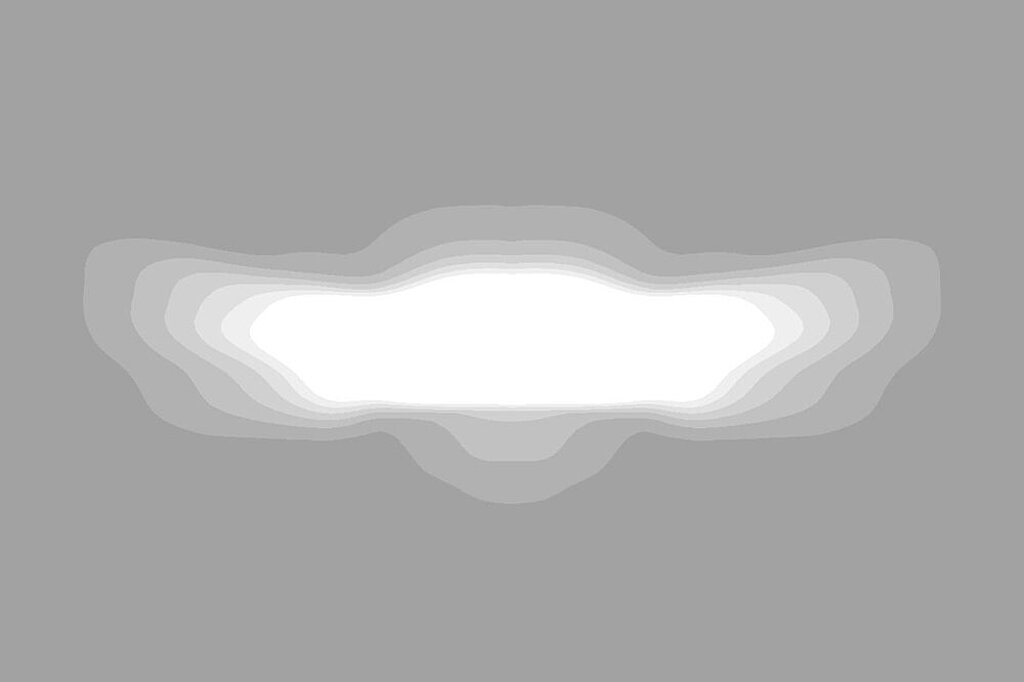

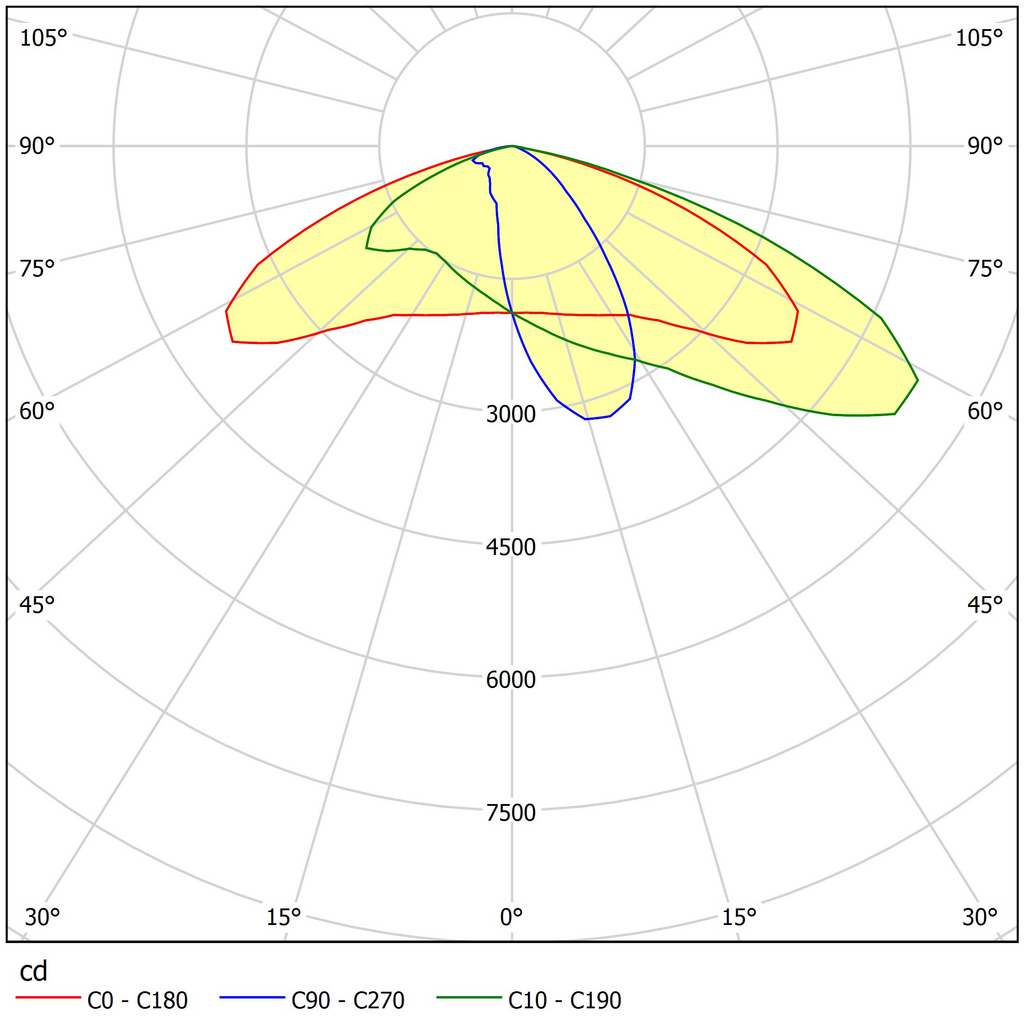

Optics ASY30 (equals O1)

Light distribution: ASY30 asymmetrical wide beam
Possible application: streets, squares, traffic junctions

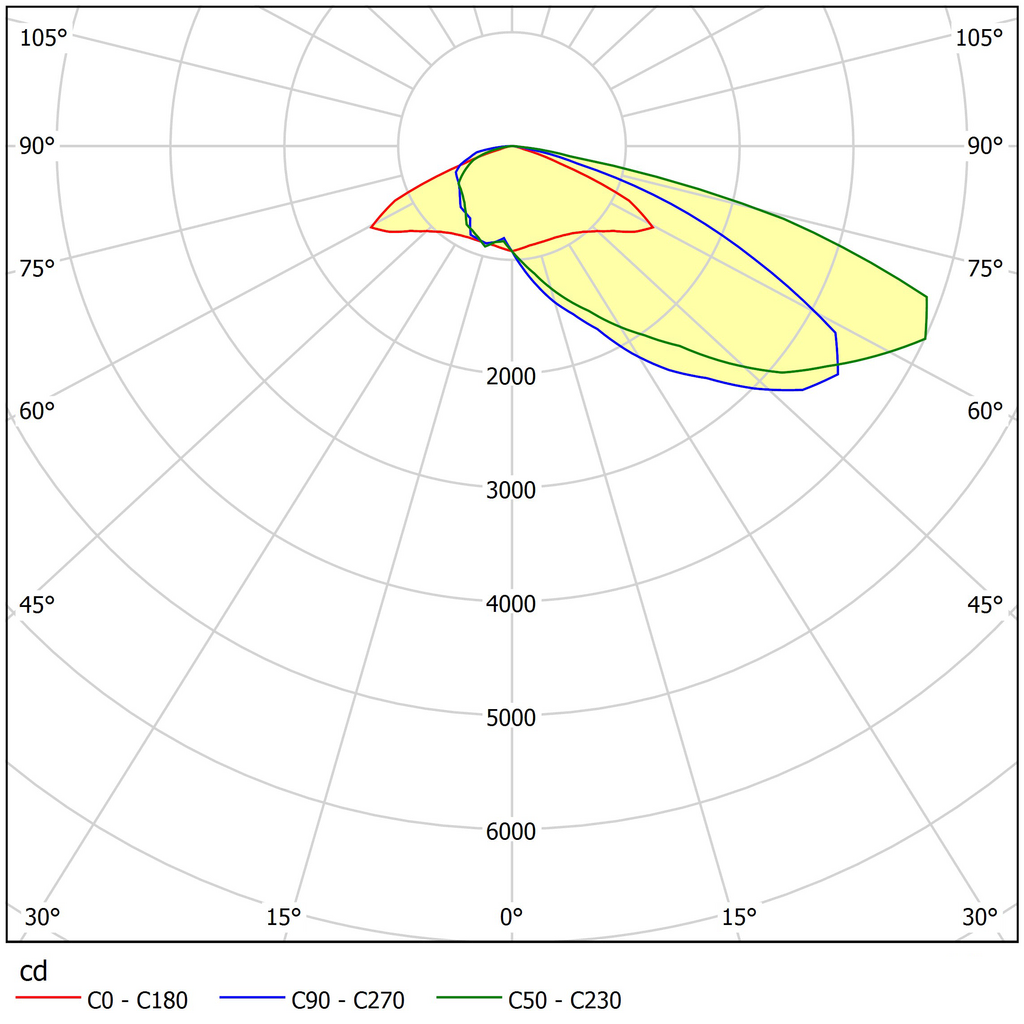

Optics ASY32 (equals O24)

Light distribution: ASY32 asymmetrical deep beam
Possible application: squares, traffic junctions

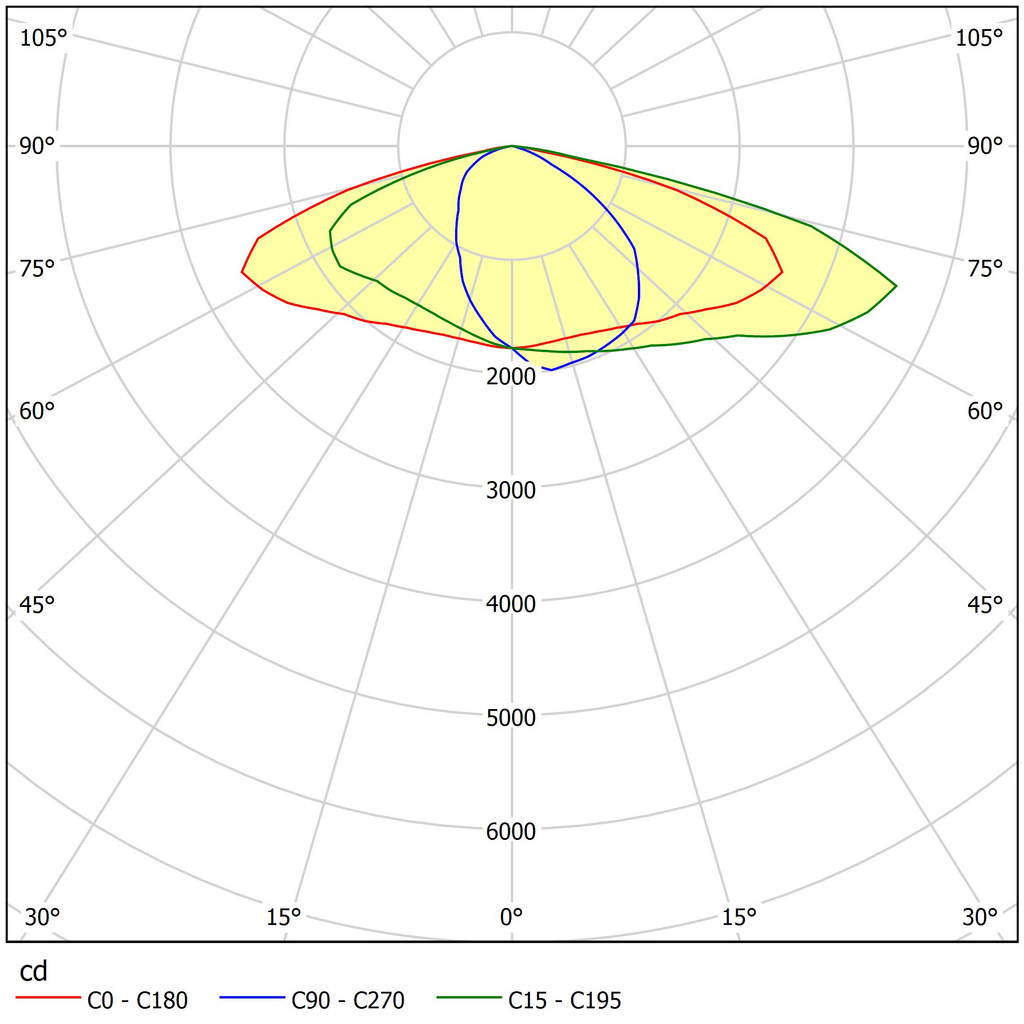

Optics ASY33 (equals O25)

Light distribution: ASY33 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares

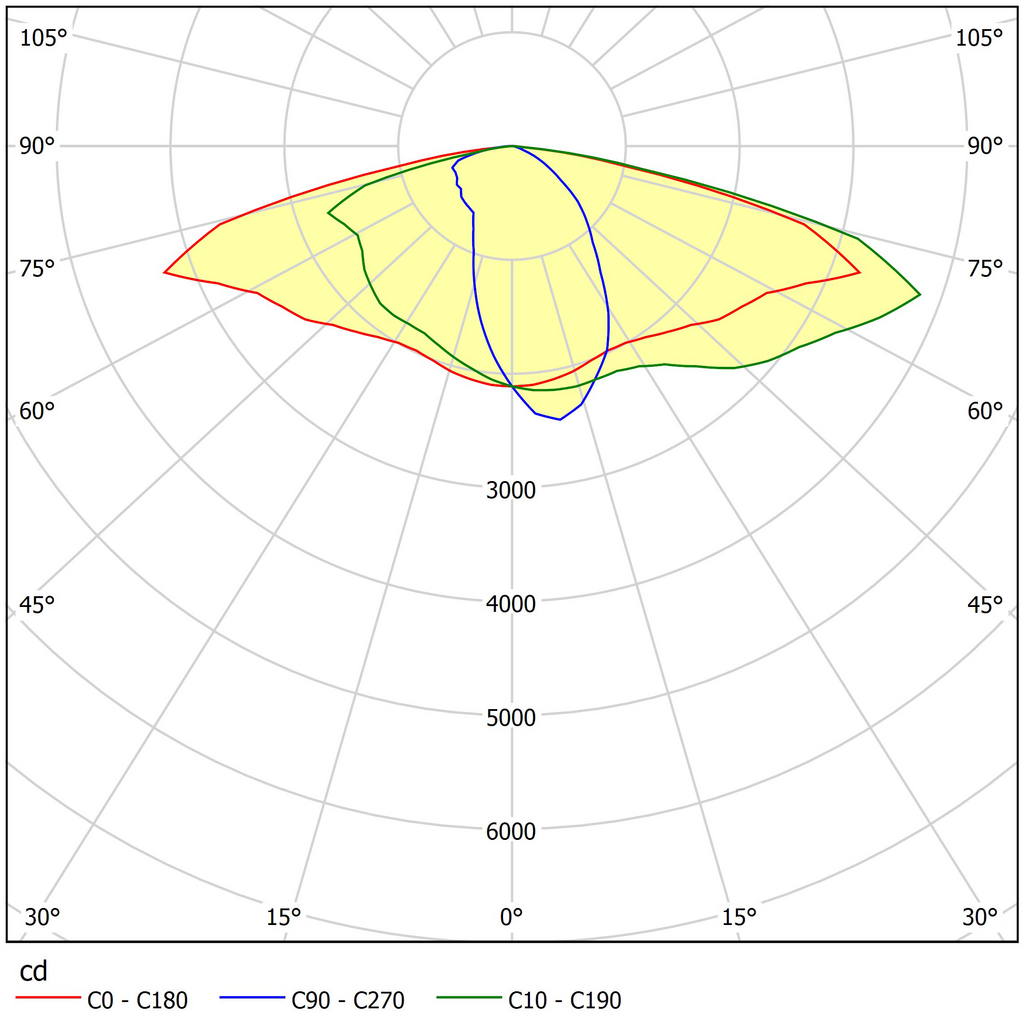

Optics ASY34 (equals O26)

Light distribution: ASY34 asymmetrical extra wide beam
Possible application: streets, pathways

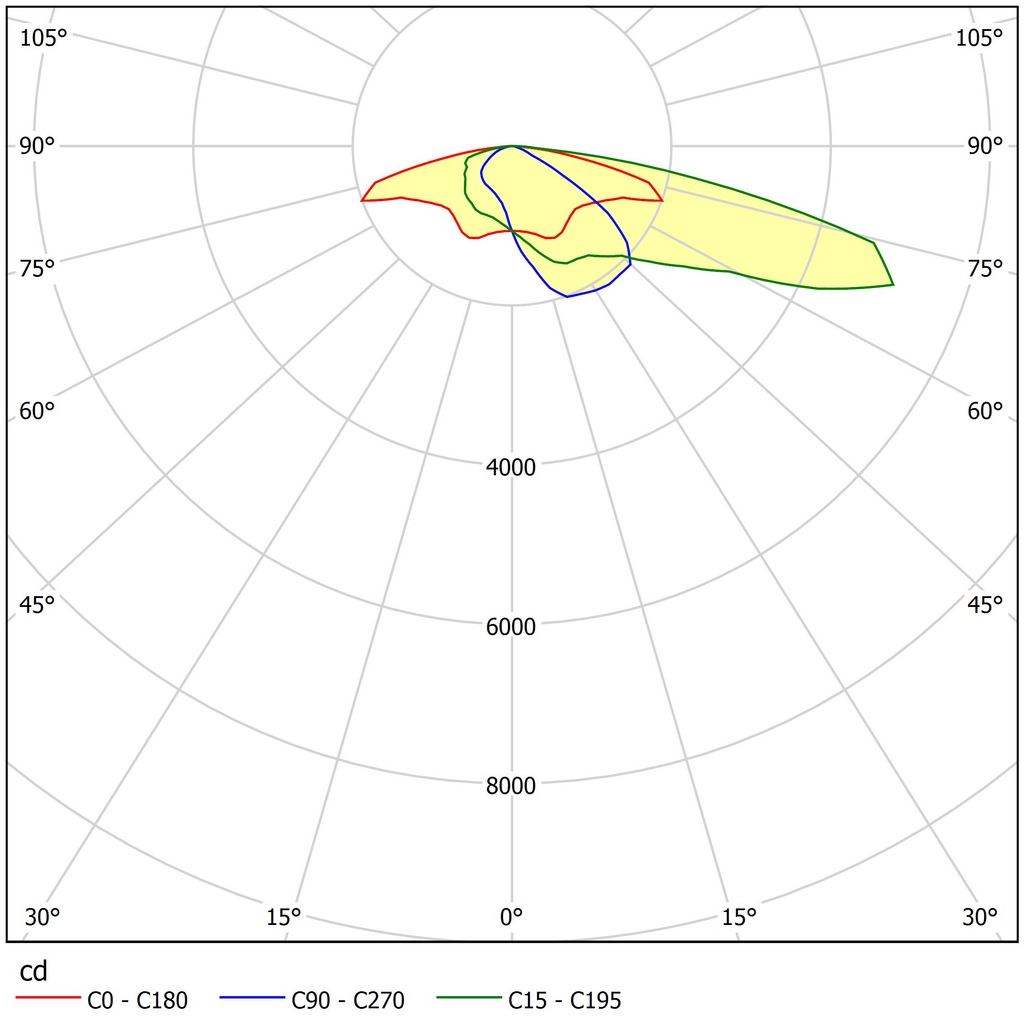

Optics ASY35 (equals O27)

Light distribution: ASY35 asymmetrical extra wide beam
Possible application: streets, pathways

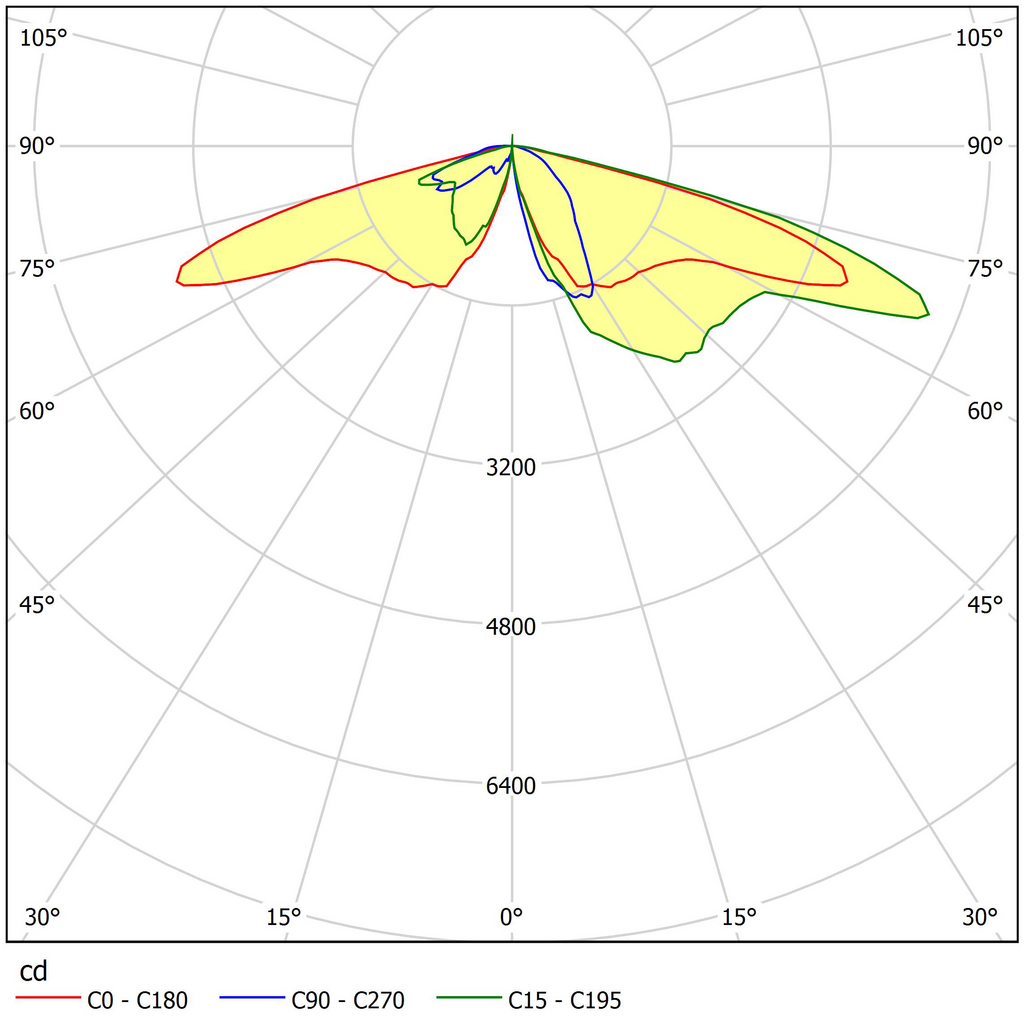

Optics ASY36 (equals O1 HP)

Light distribution: ASY36 asymmetrical wide beam
Possible application: streets, squares, traffic junctions

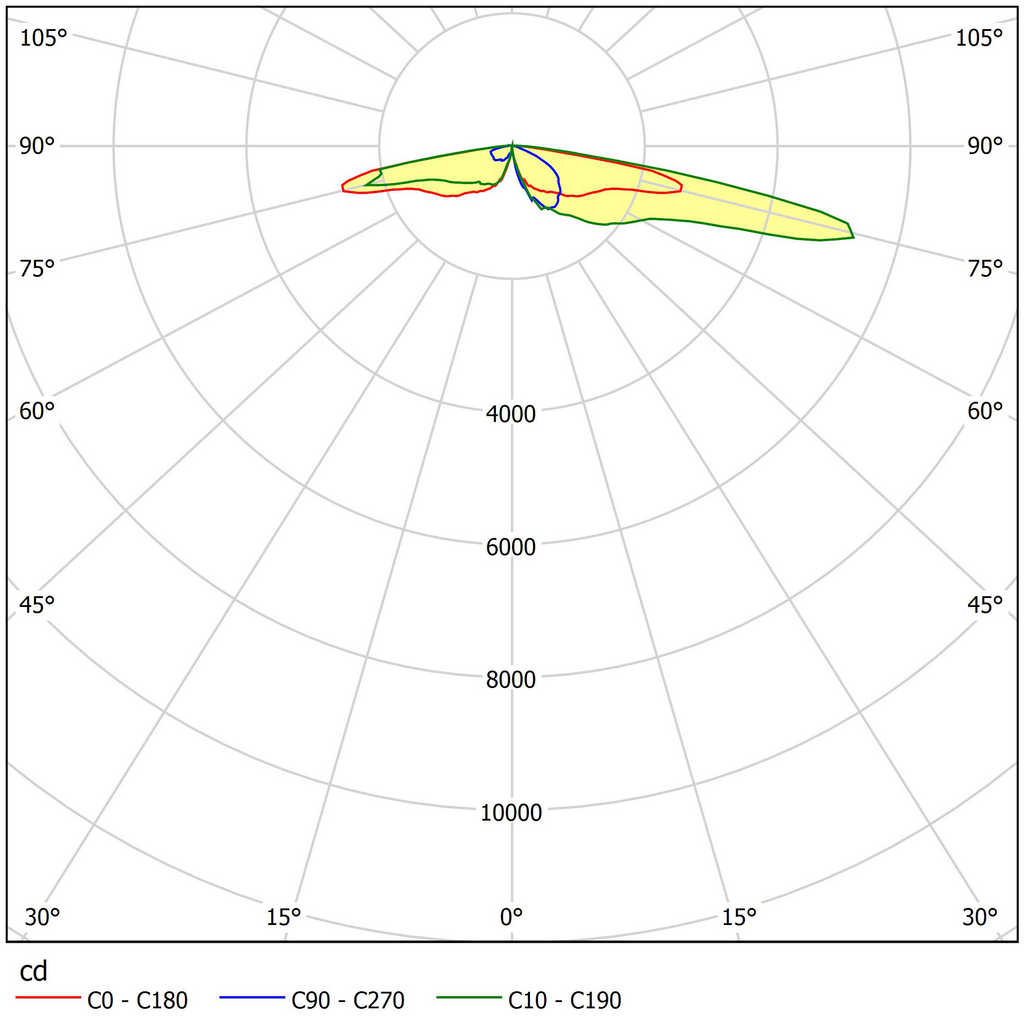

Optics ASY38 (equals O7 HP)

Light distribution: ASY38 asymmetrical extra wide beam
Possible application: streets, pathways

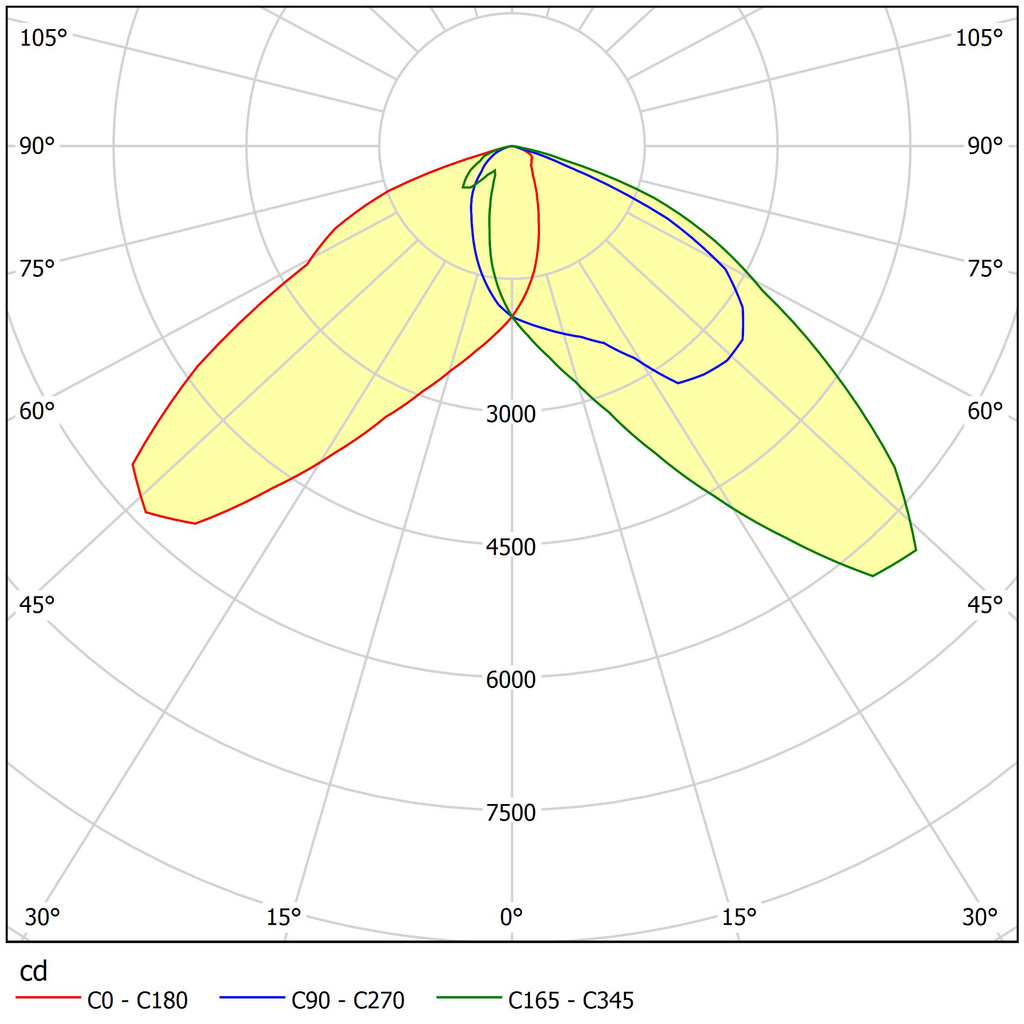

Optics PC02L (equals O6L)

Light distribution: PC02L asymmetrical left-throw
Possible application: pedestrian crossings

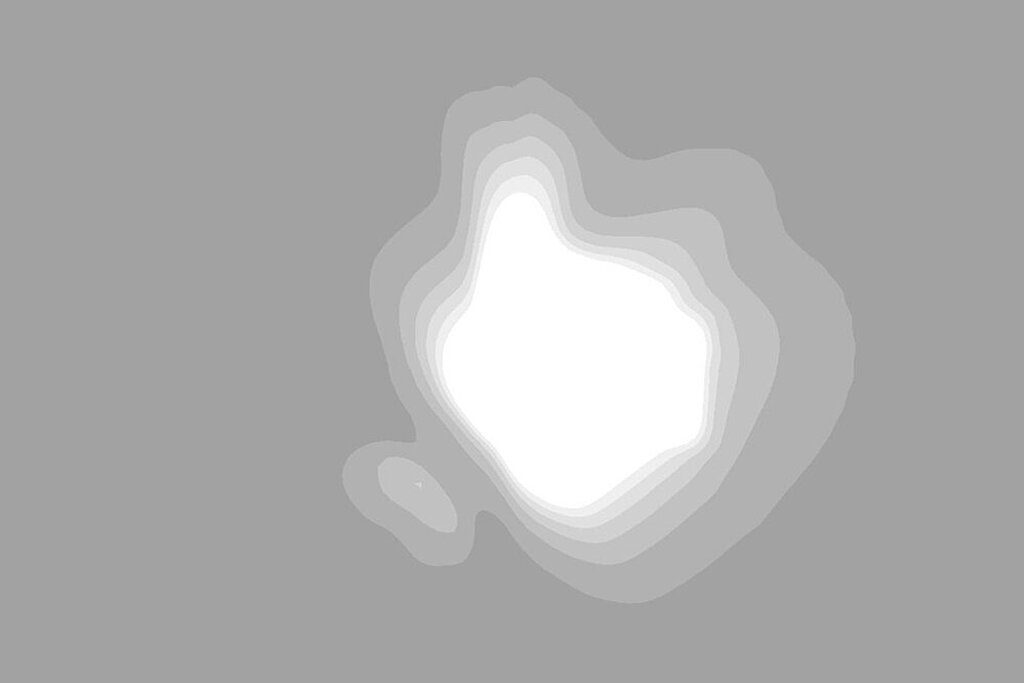

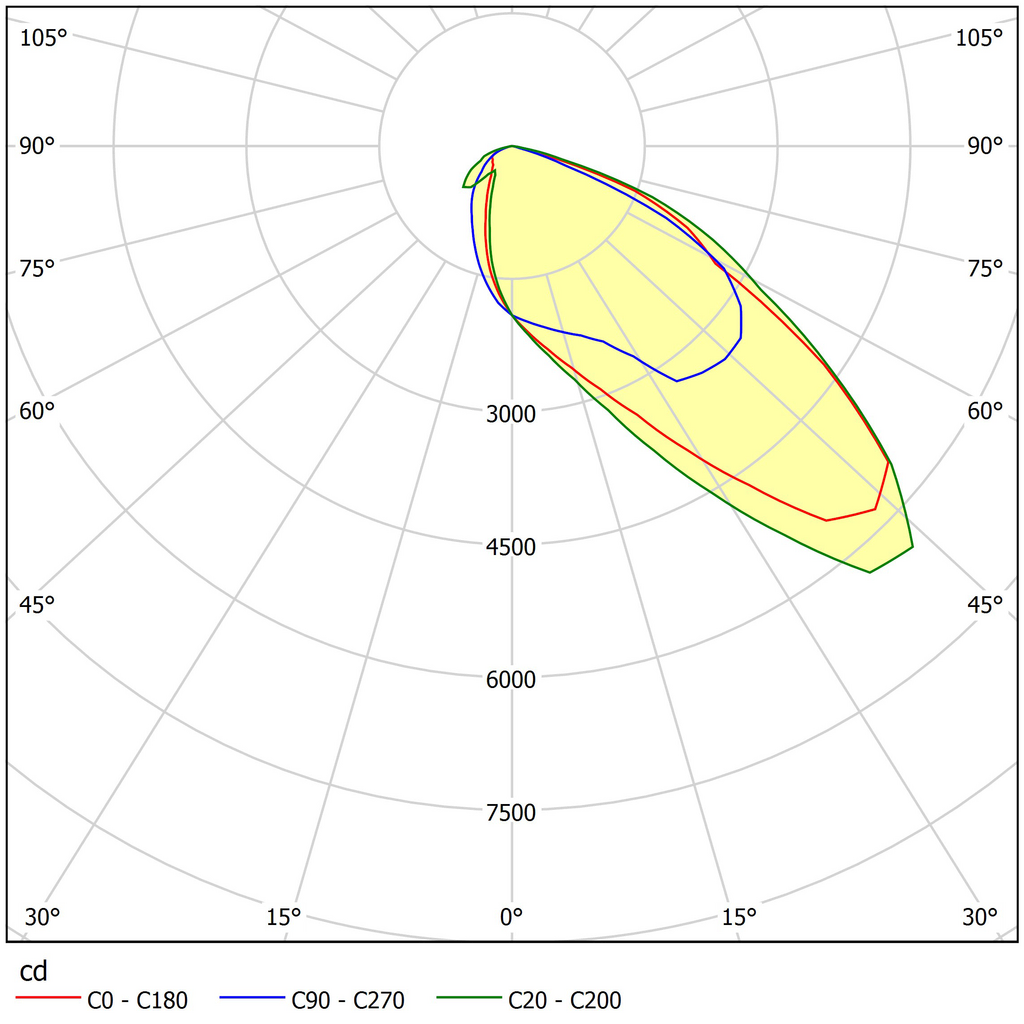

Optics PC02R (equals O6R)

Light distribution: PC02R asymmetrical right-throw
Possible application: pedestrian crossings

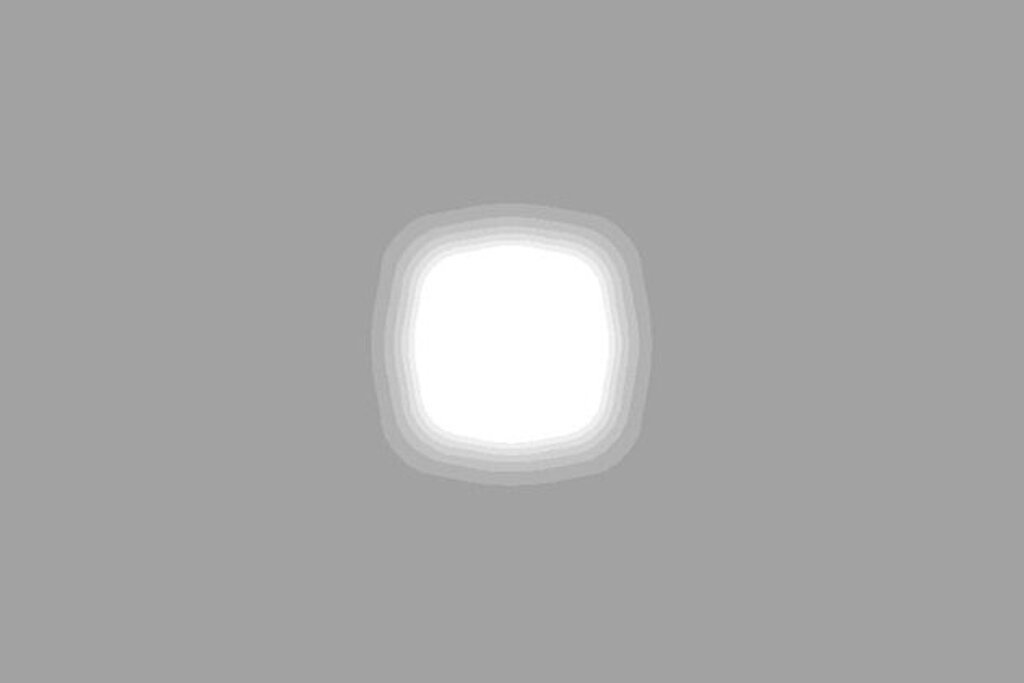

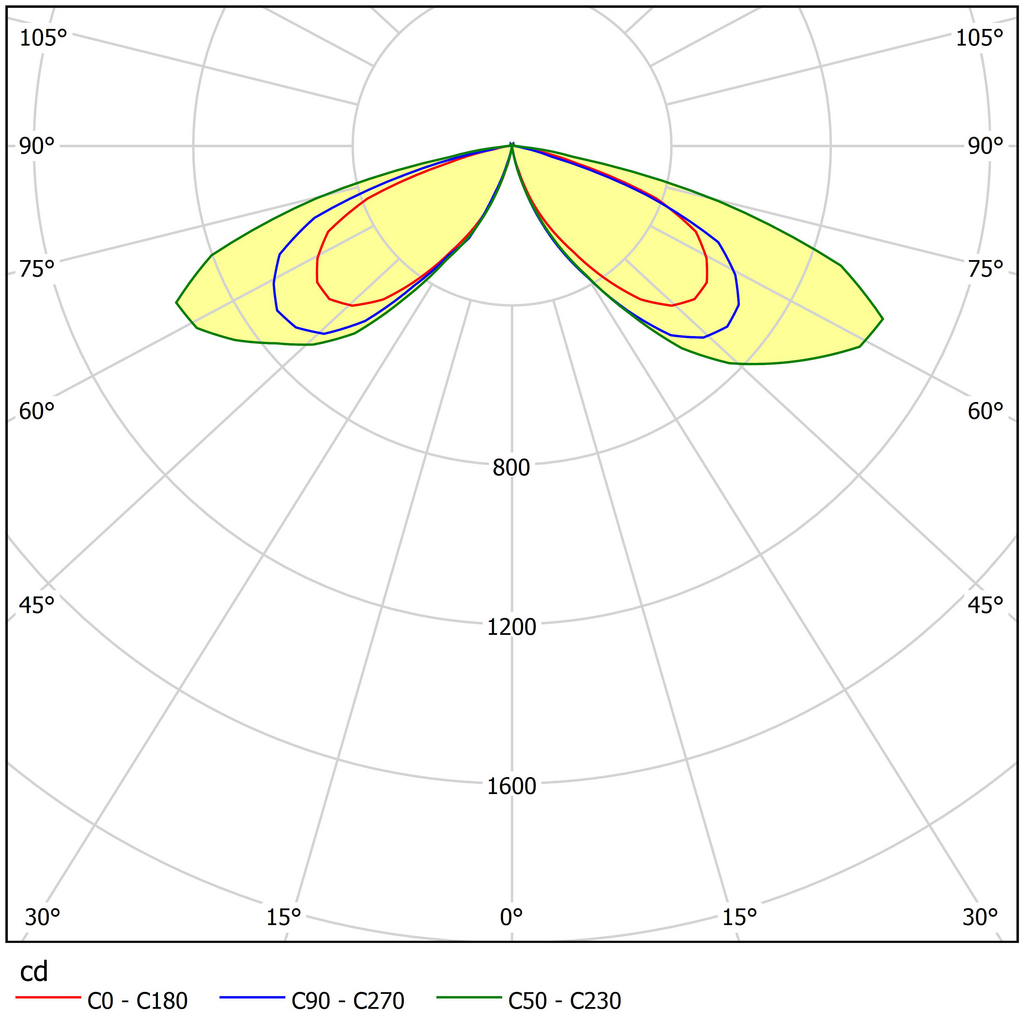

Optics CIR06 (equals O11)

Light distribution: CIR06 rotationally symmetrical square
Possible application: squares

Also available as amber-coloured optic.

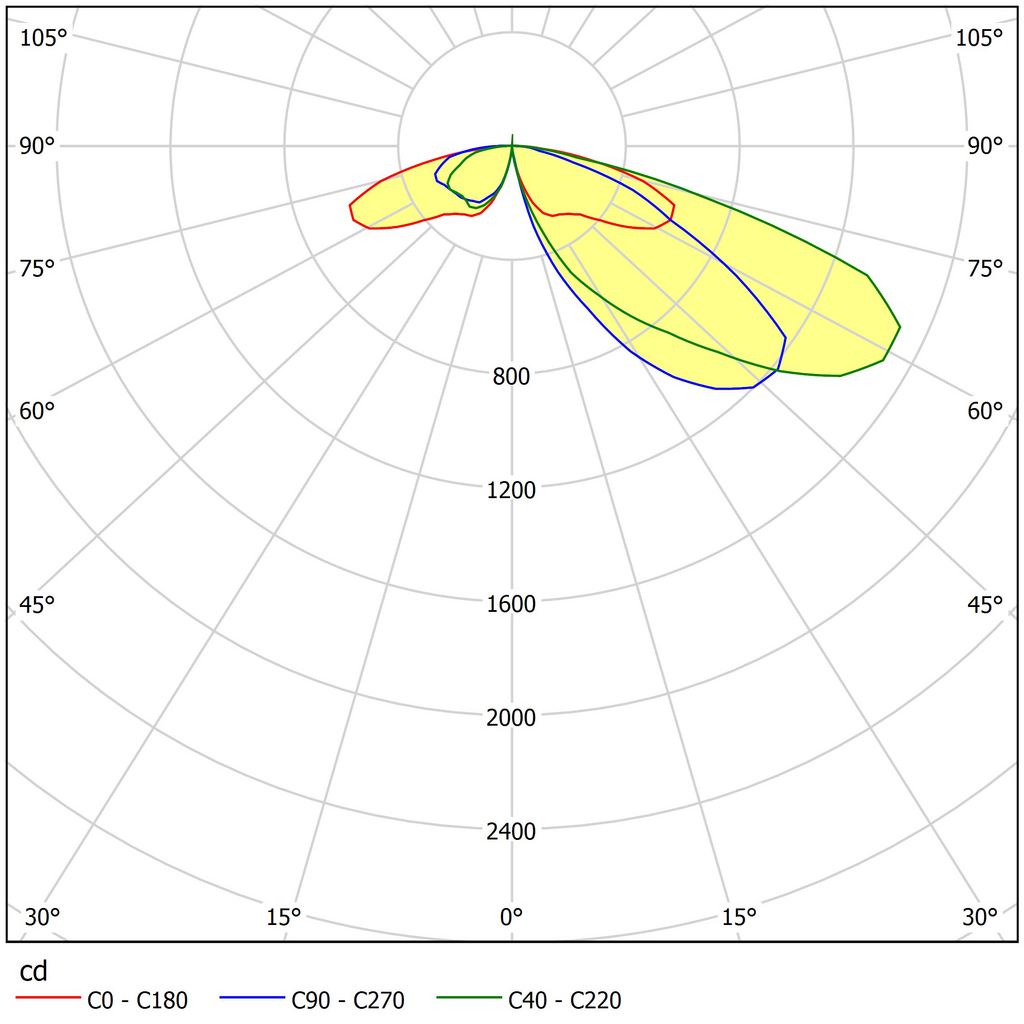

Optics M1

Light distribution: M1 asymmetrical wide beam
Possible application: streets, pathways, squares

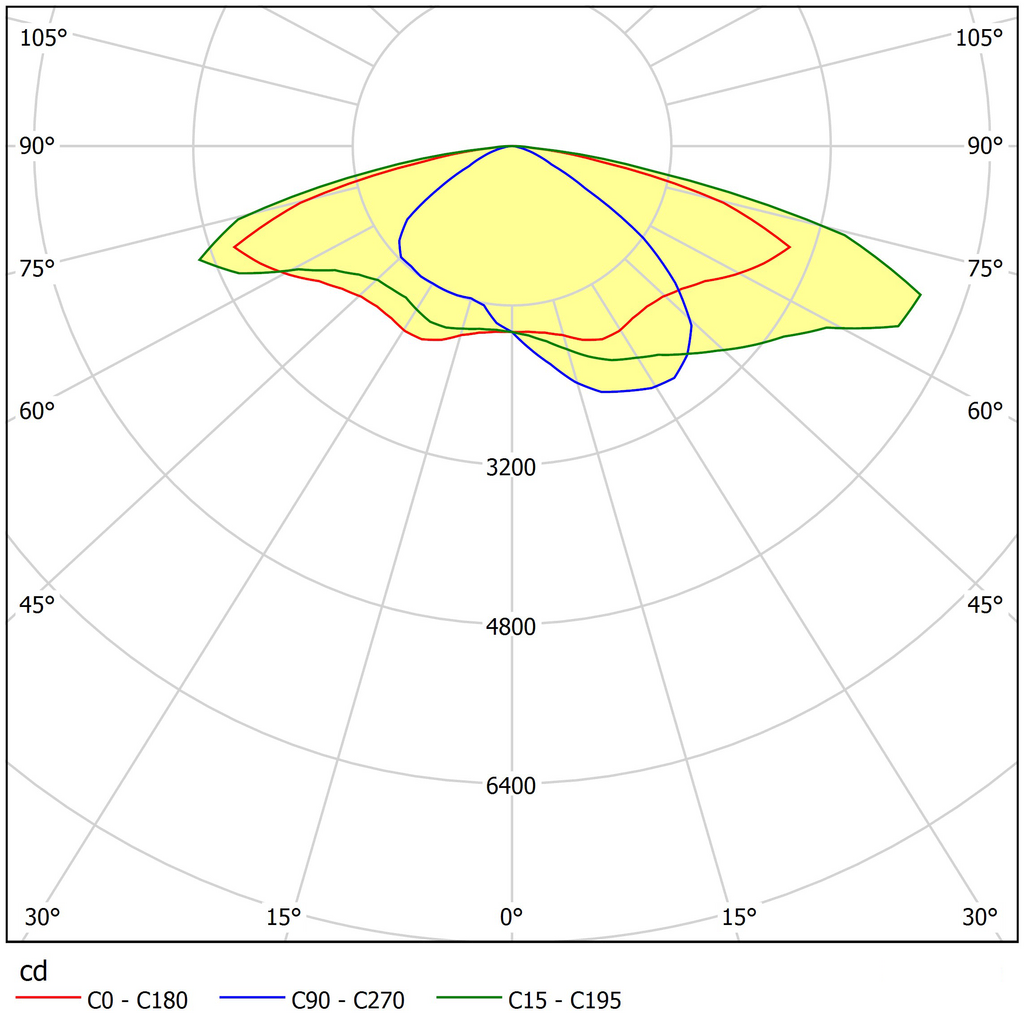

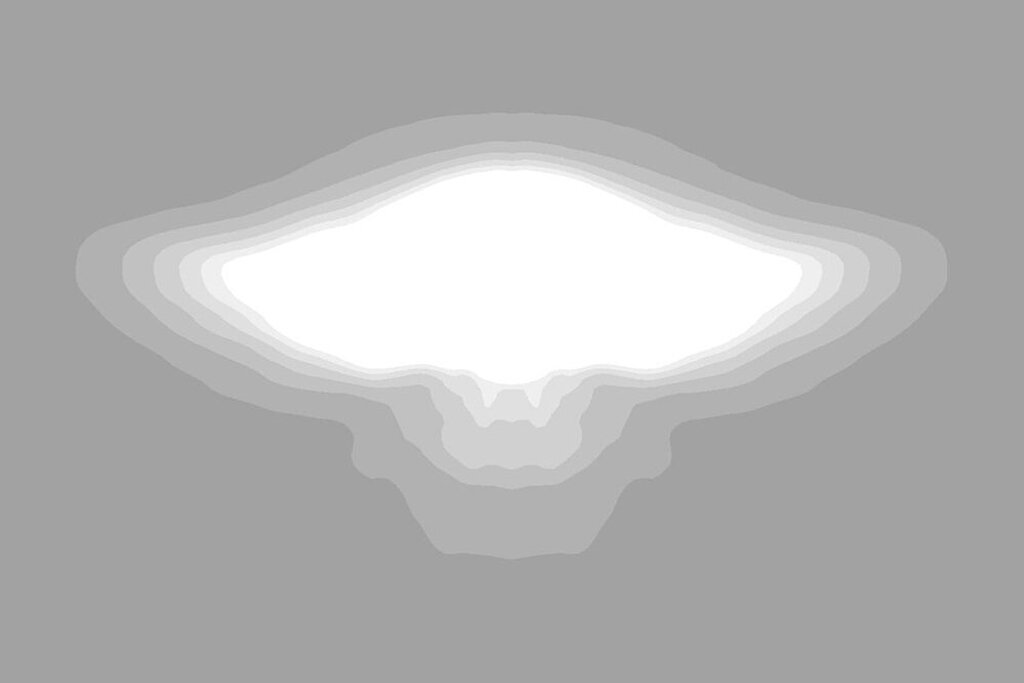

Optics M2

Light distribution: M2 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares

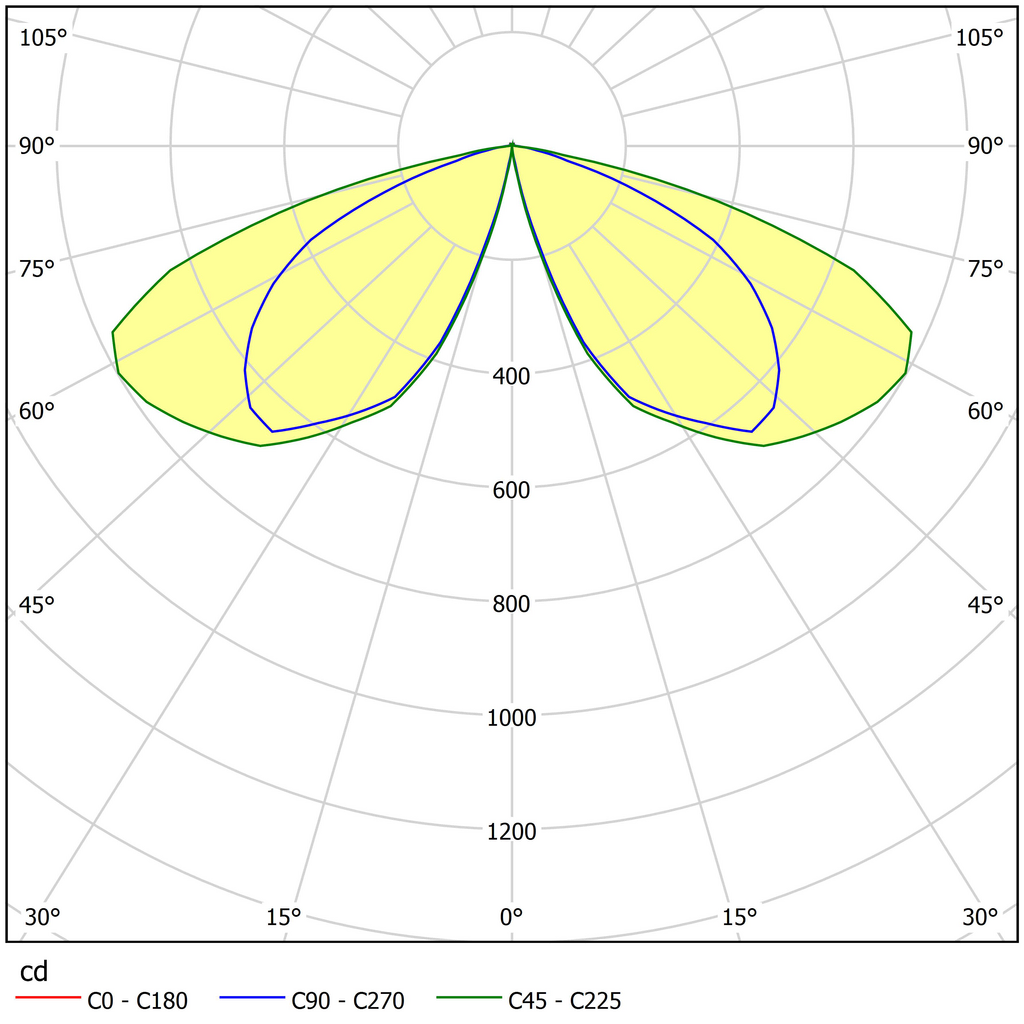

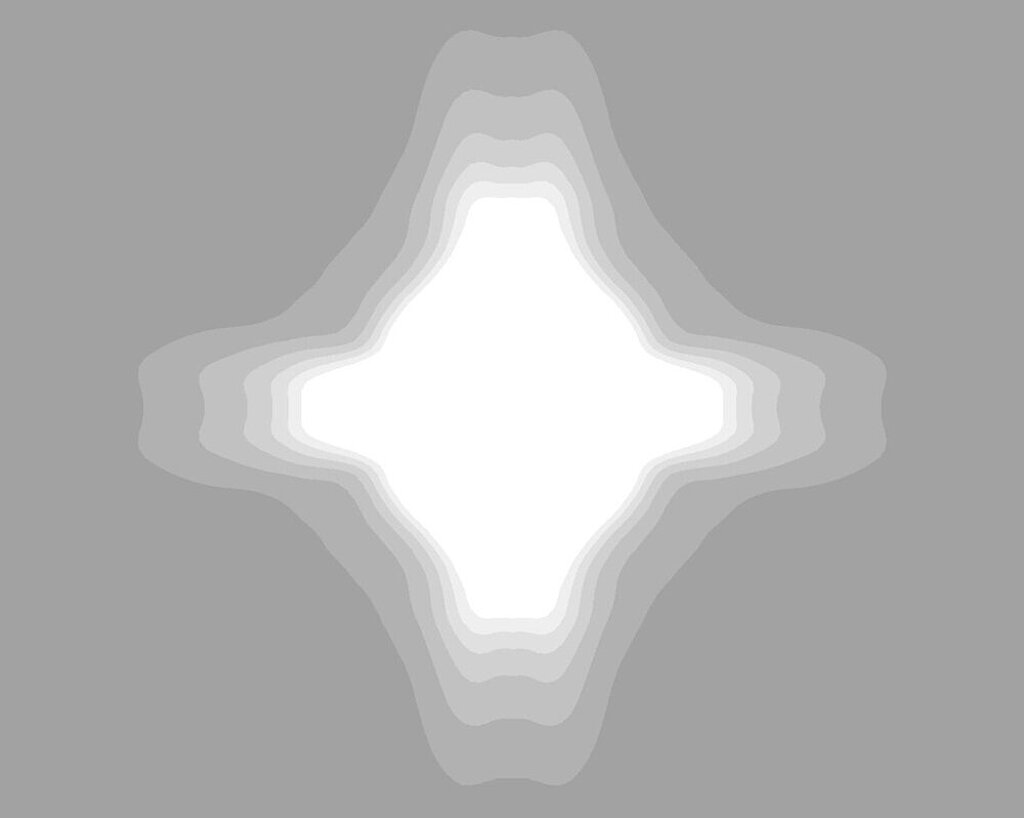

Optics M4

Light distribution: M4 rotationally symmetrical square
Possible application: squares

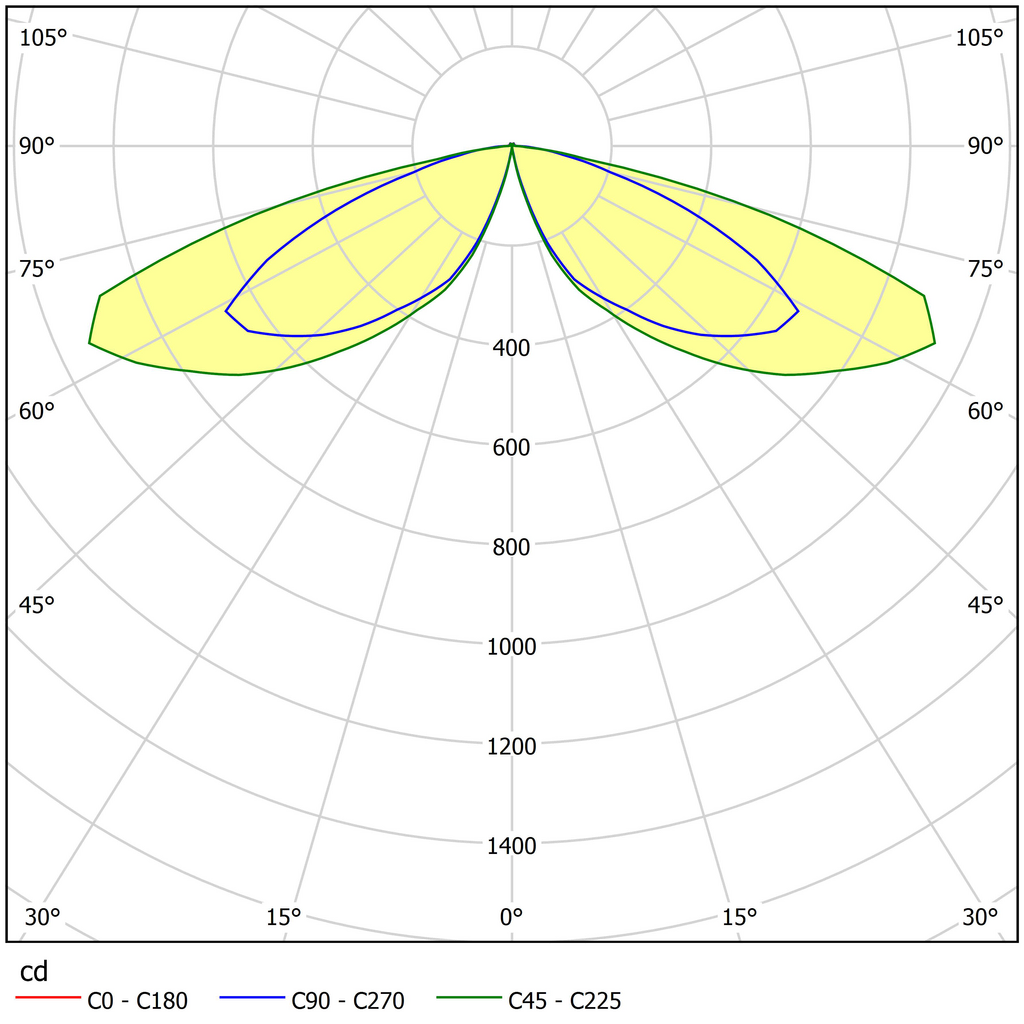

Optics M5

Light distribution: M5 rotationally symmetrical square
Possible application: squares

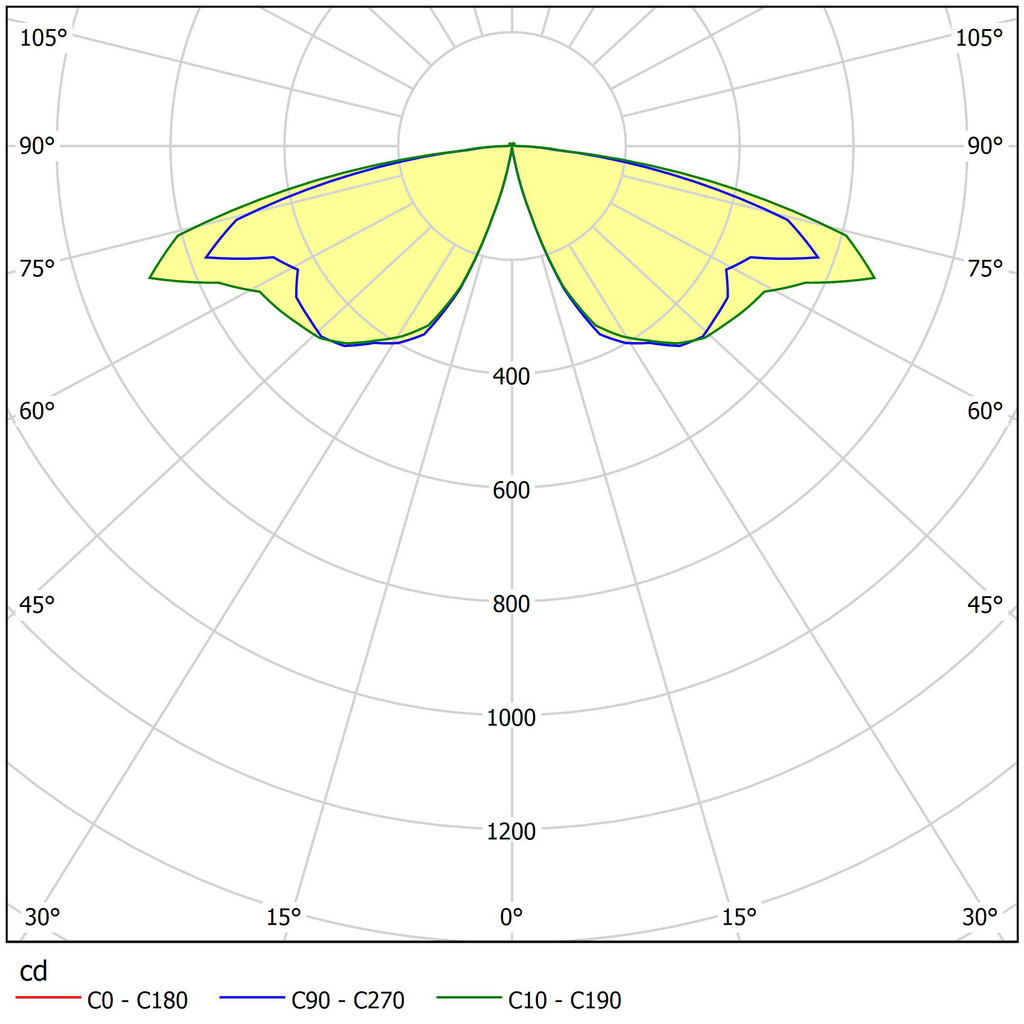

Optics M6

Light distribution: M6 rotationally symmetrical
Possible application: squares

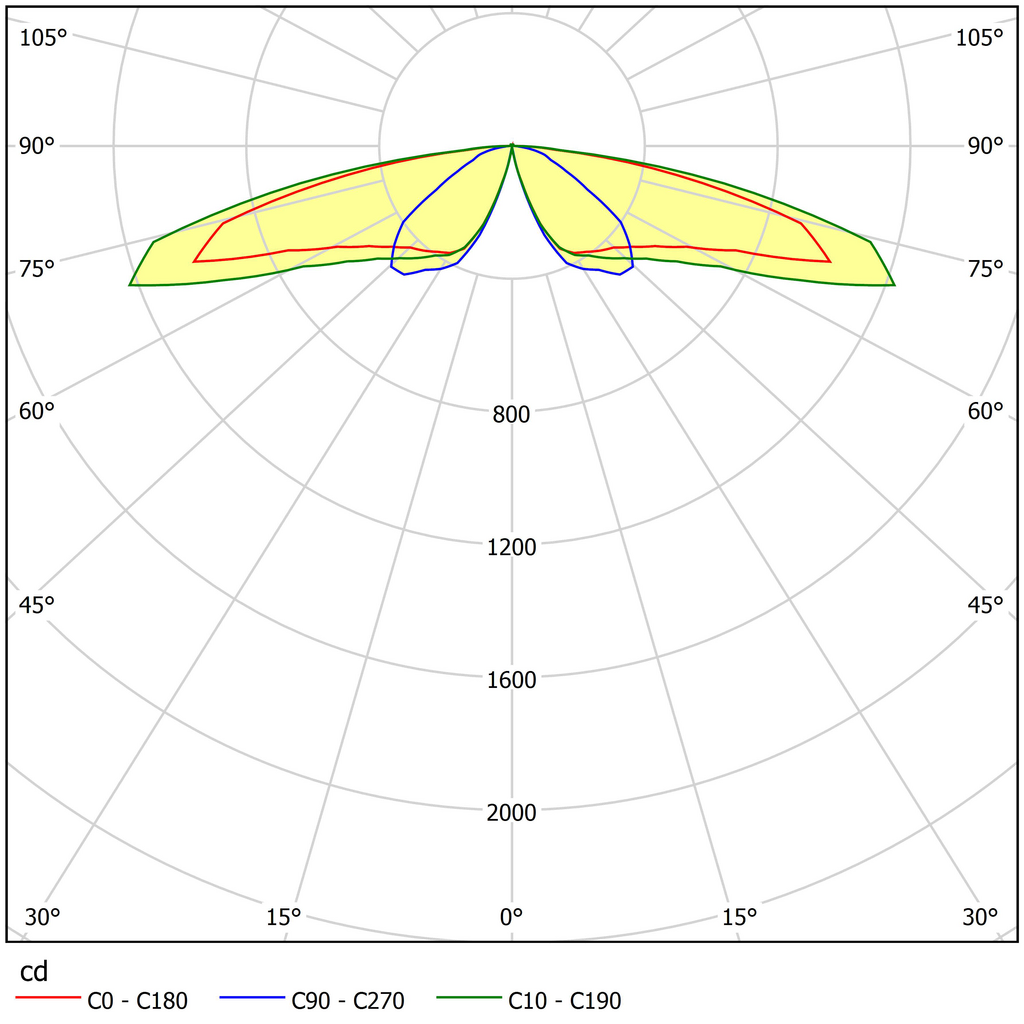

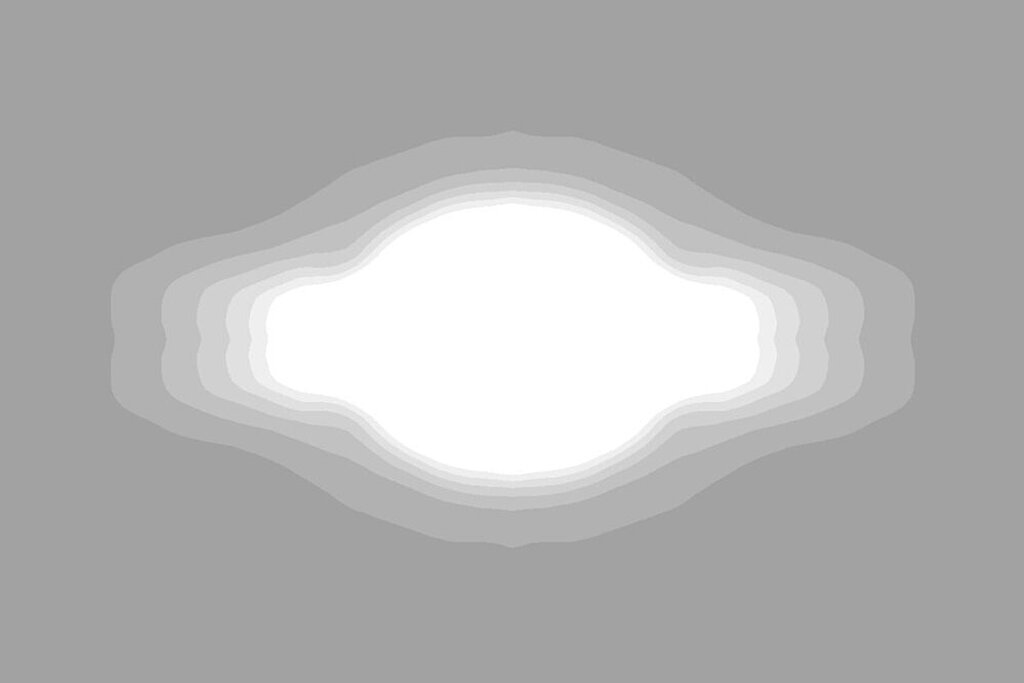

Optics M7

Light distribution: M7 axis-symmetrical extra wide beam
Possible application: combined traffic routes, squares

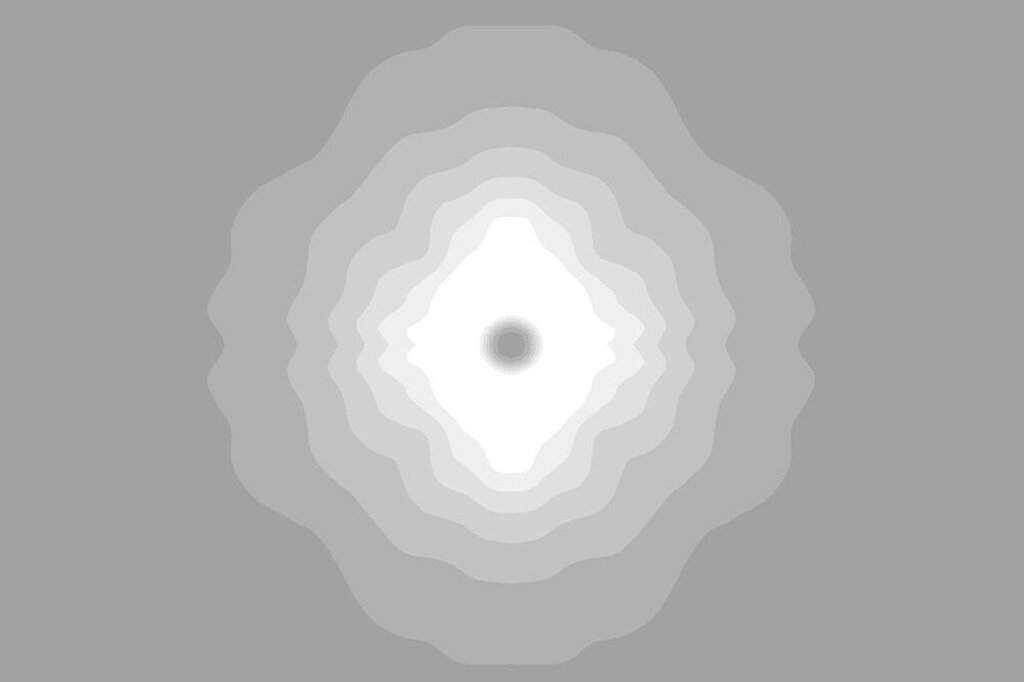

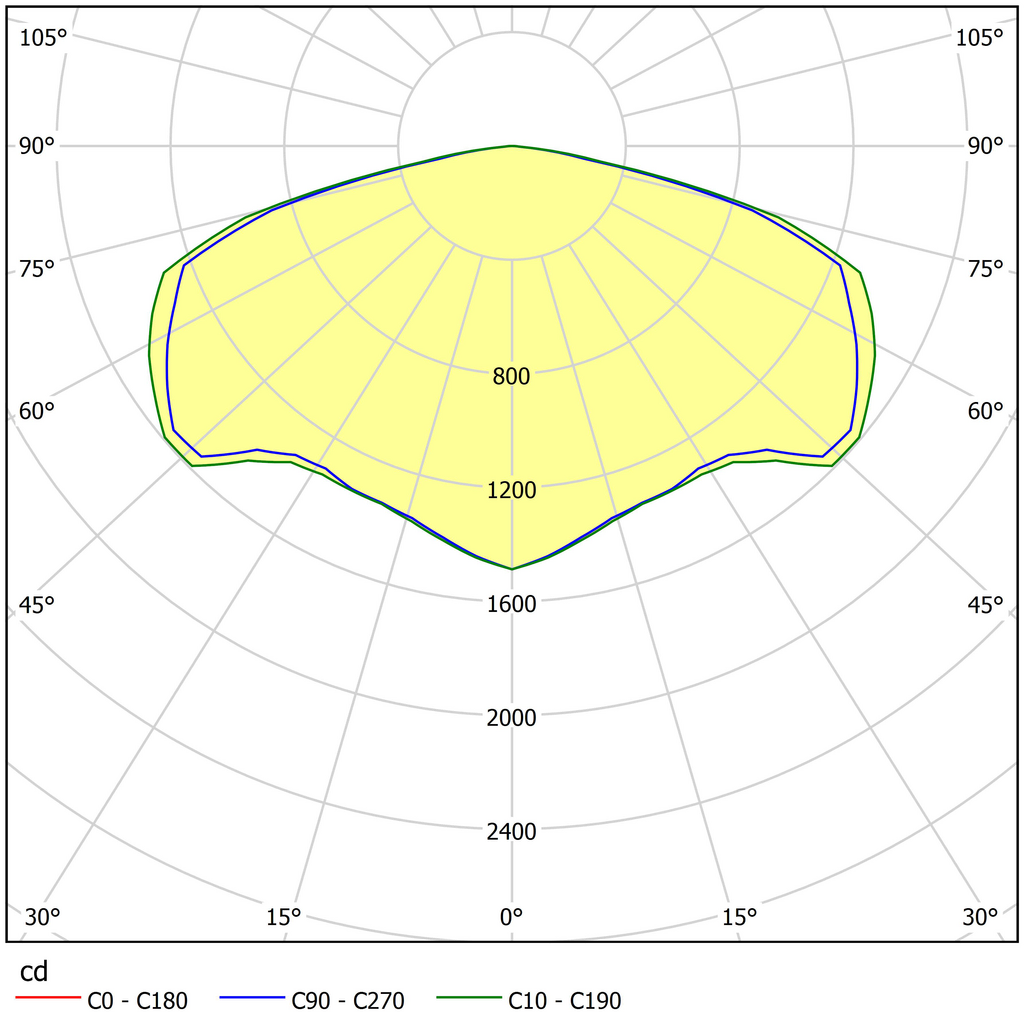

Optics M8 (equals O8)

Light distribution: M8 rotationally symmetrical
Possible application: squares

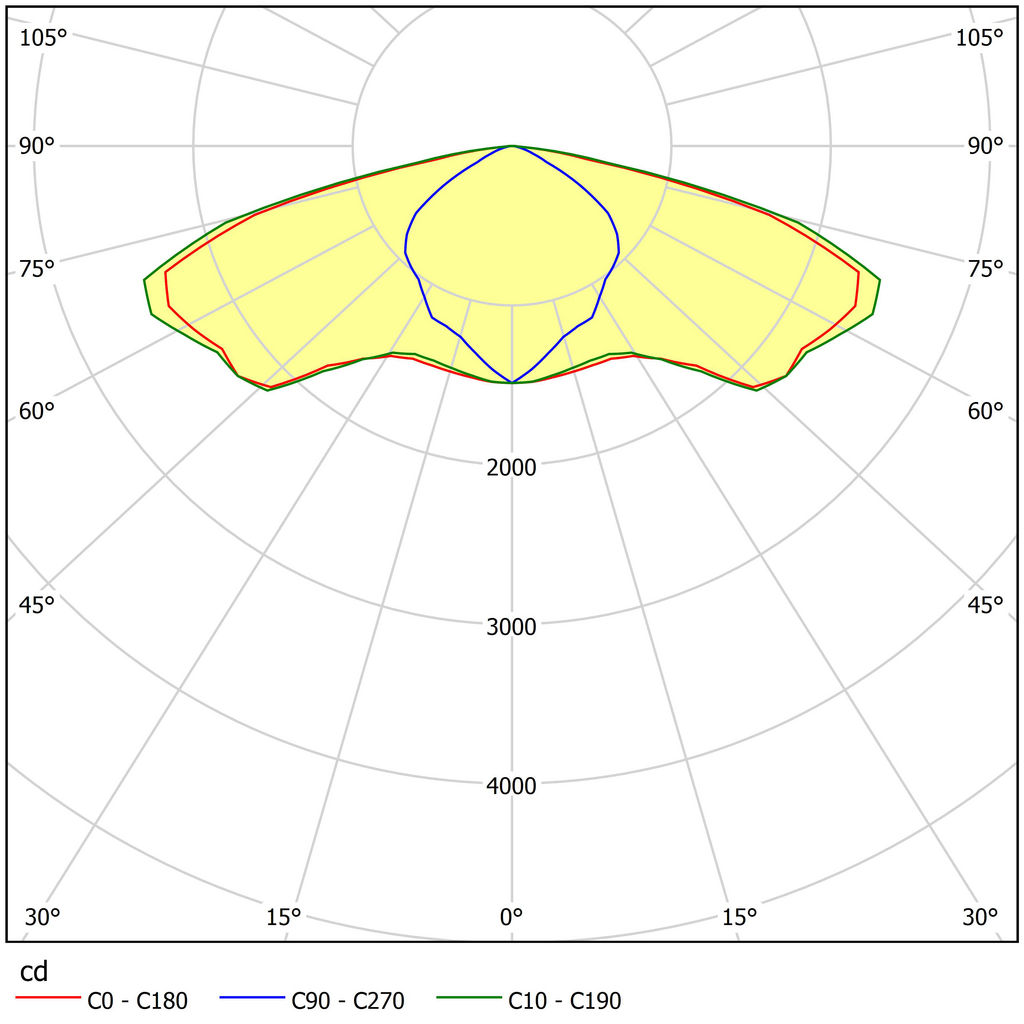

Optics M9 (equals O9)

Light distribution: M9 axis-symmetrical extra wide beam
Possible application: combined traffic routes, squares

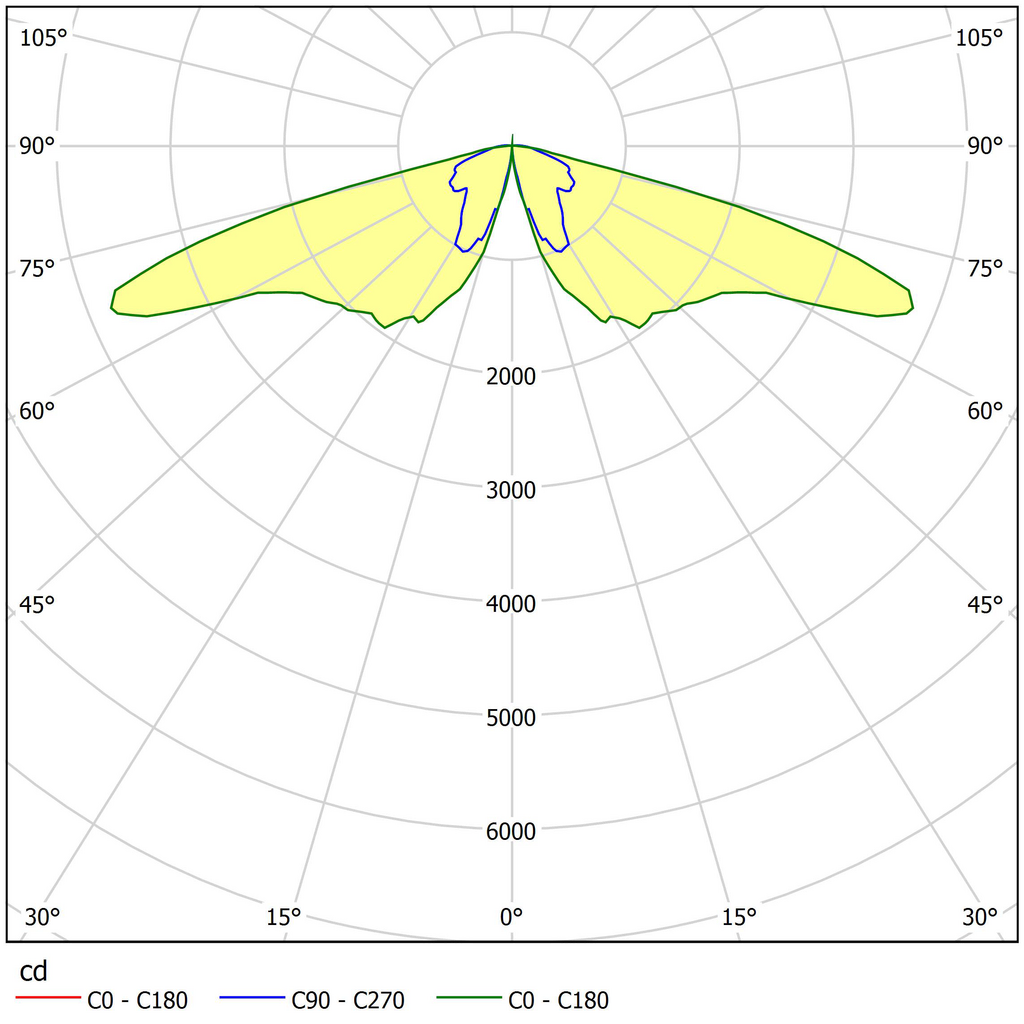

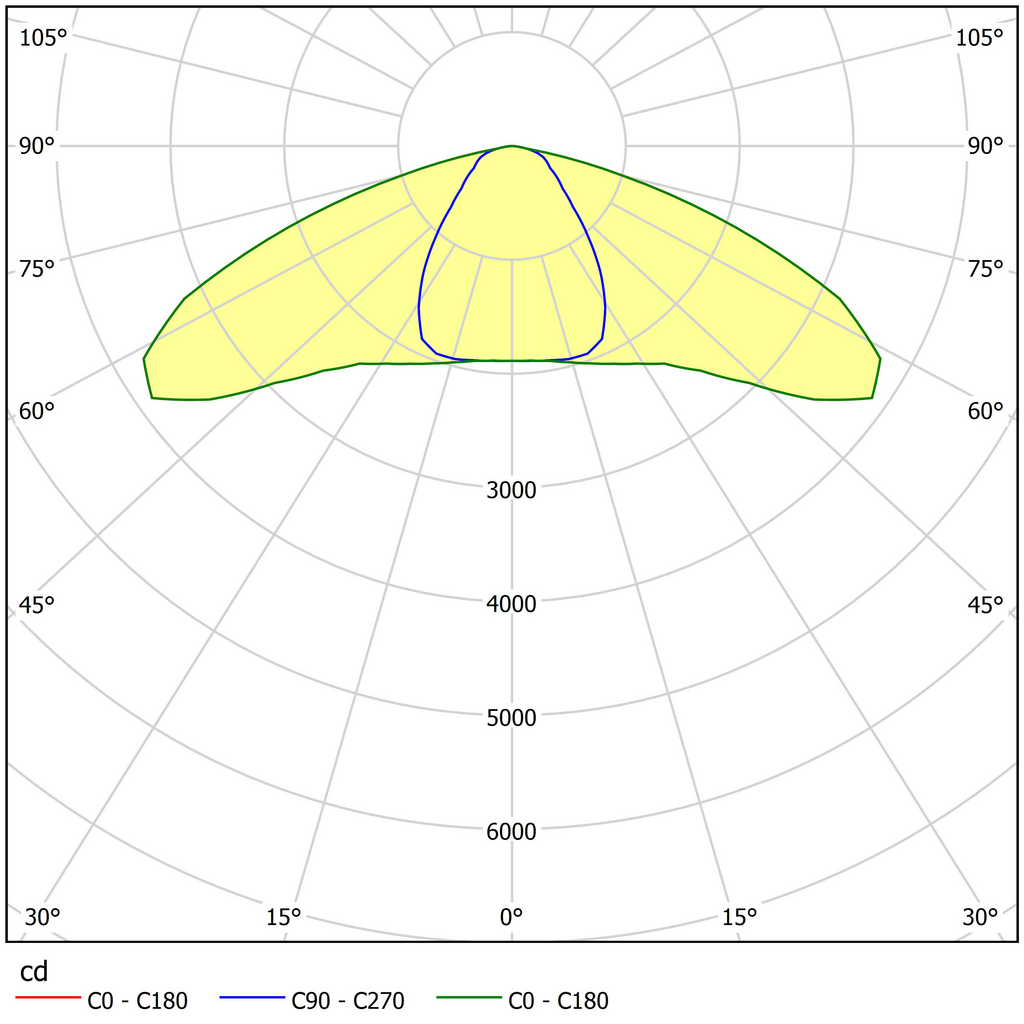

Optics M10 (equals O10)

Light distribution: M10 axis-symmetrical wide beam
Possible application: combined traffic routes, squares

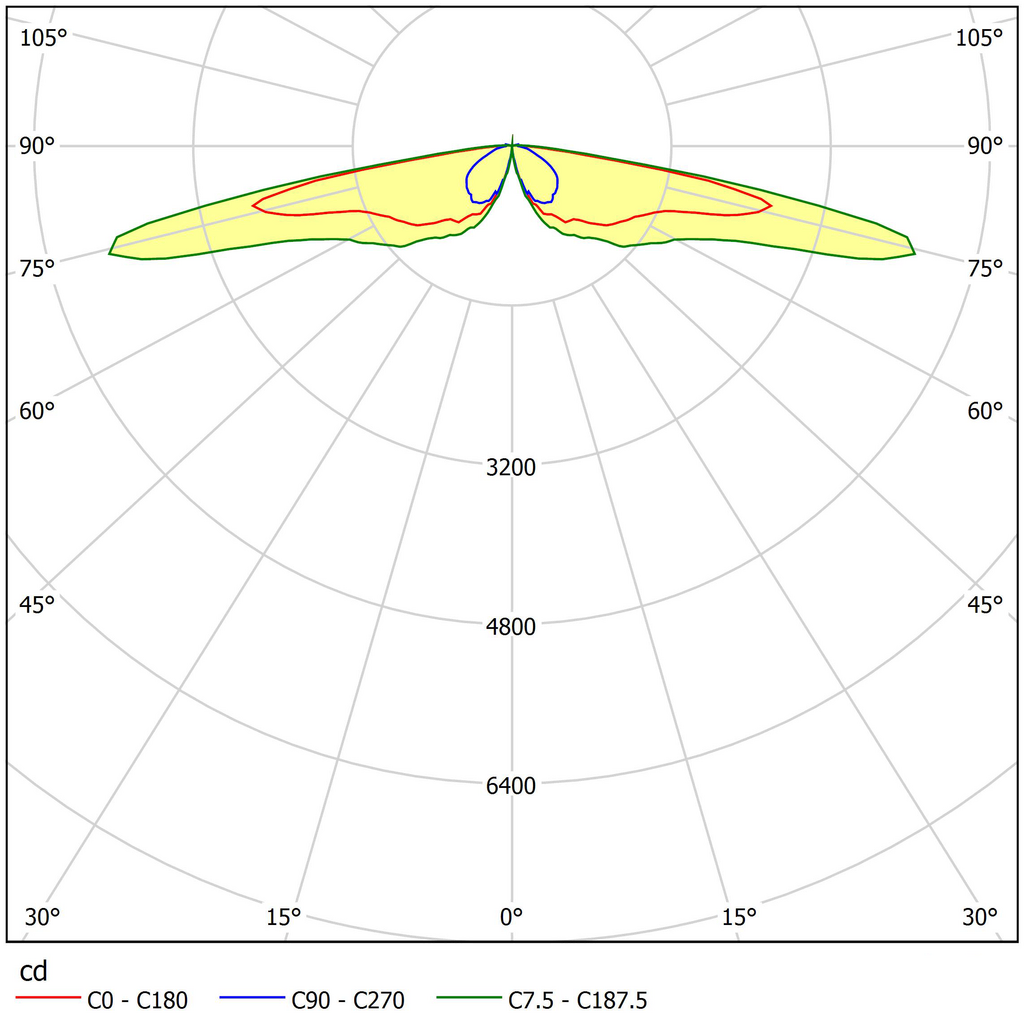

Optics M11 (equals O9 HP)

Light distribution: M11 axis-symmetrical extra wide beam
Possible application: combined traffic routes, squares

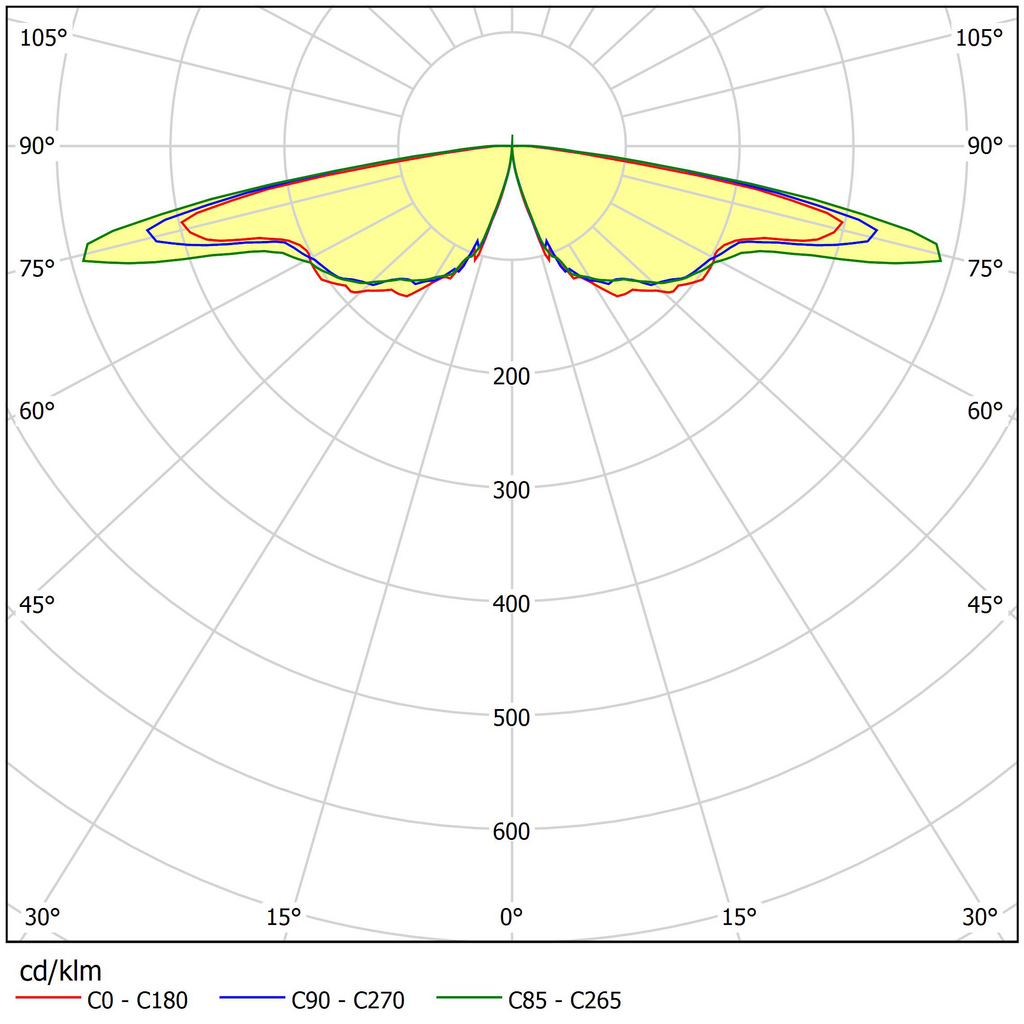

Optics M12 (equals O10 HP)

Light distribution: M12 axis-symmetrical wide beam
Possible application: combined traffic routes, squares

Optics M13 (equals O8 HP)

Répartition lumineuse : M13 symétrique par rotation
Application possible : places

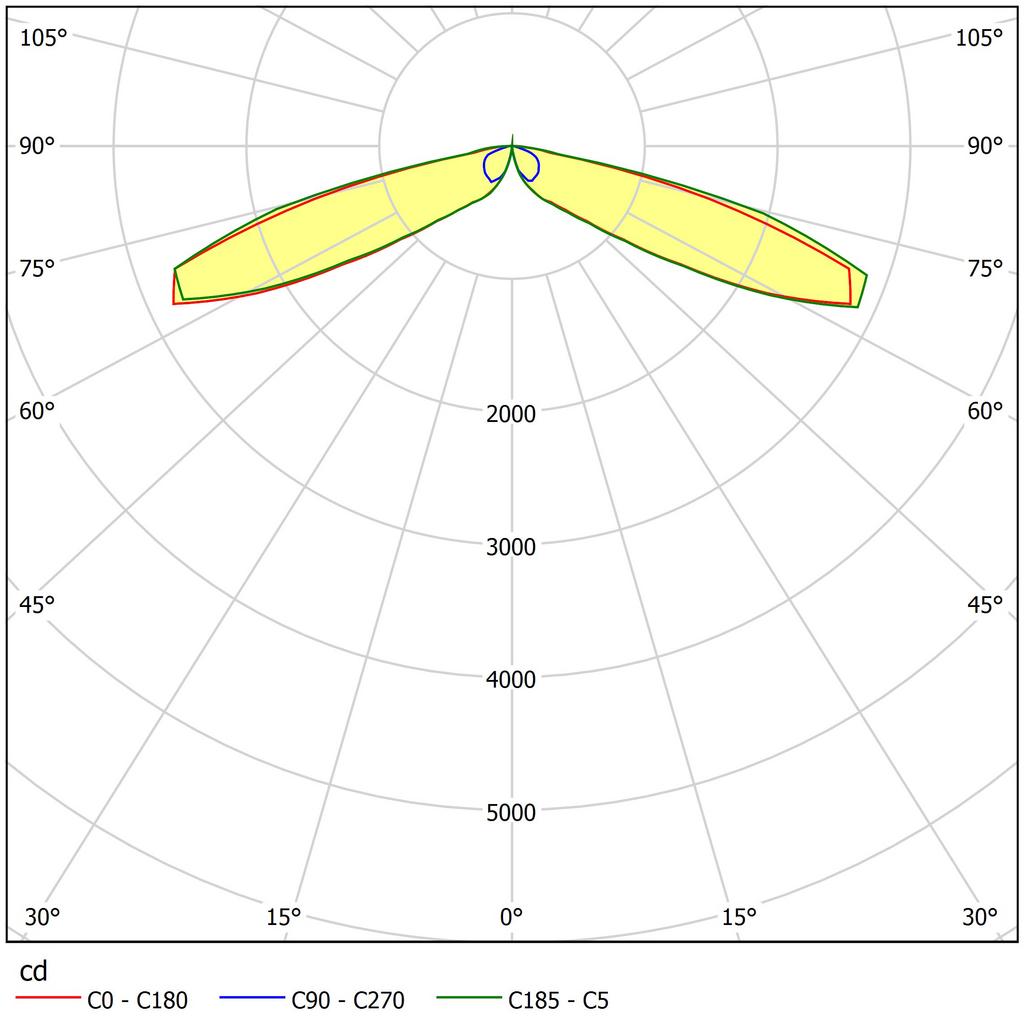

Optics SYM02 (equals O12)

Light distribution: SYM02 axis-symmetrical extra wide beam
Possible application: combined traffic routes, squares
