reduced ∙ style-defining ∙ powerful

REVARA – Made by Hess

Sophisticated design meets high functionality. The REVARA combines the best of both worlds. A high design standard goes hand in hand with many technical refinements and a simplicity that is more than impressive in terms of installation and maintenance of the luminaire.

See for yourself how well thought-out the concept of the REVARA is!

… ATTRACTIVE BY DAY …

The design offers a slim, reduced form and style-defining elements at the same time. The characteristic ribbed structure of the luminaire, deliberately designed as a visible element and connection cables enclosed by a fabric tube, or also the use of identical radii, all form striking design features which ensure an extremely attractive and harmonious appearance.

… EASY TO USE …

The REVARA is thoroughly refined and well-thought-out. This means that the luminaire can be opened very easily and the electricalunit as well as the glass or the seal can be replaced without difficulty – without any tools. And thanks to the connection to masts with a spigot diameter of 76mm and 60mm, the luminaire is also versatile.

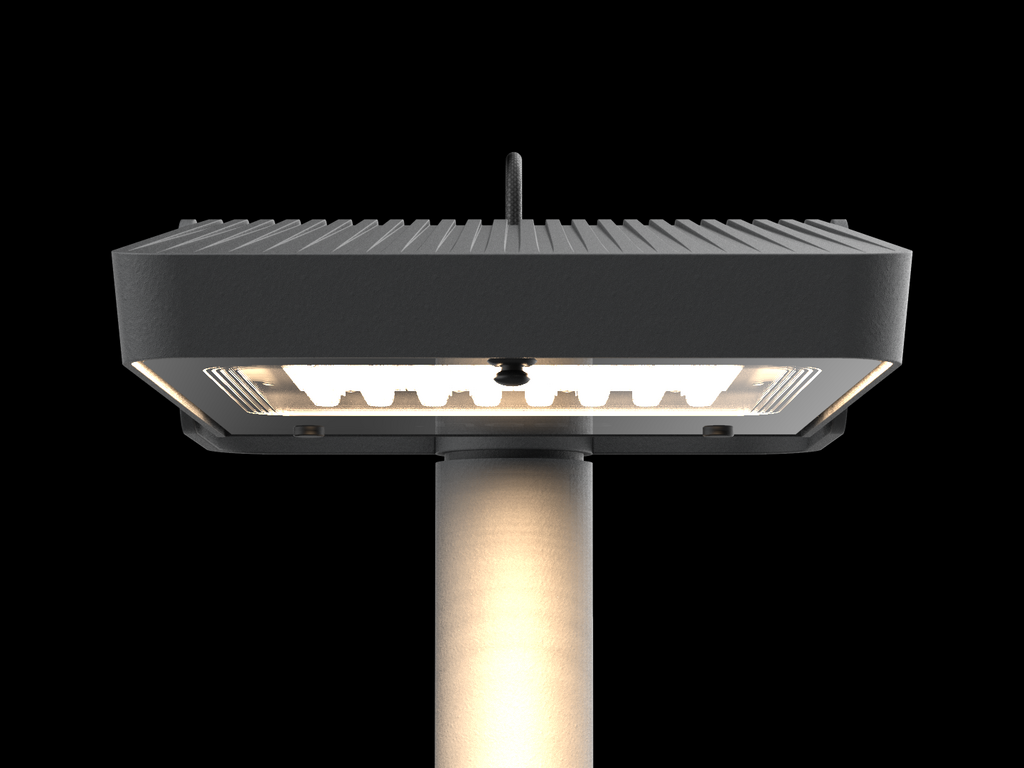

… POWERFUL AT NIGHT!

Speaking of versatile. With a system output of up to 97 watts, the REVARA is ideally suited for mounting heights between 4.5m and 8m. A variety of optics as well as the possibility of connecting a wide range of dimming and control systems ensure maximum performance, flexibility and efficiency.

THE REVARA FAMILY ...

... is available in 3 versions right from the start:

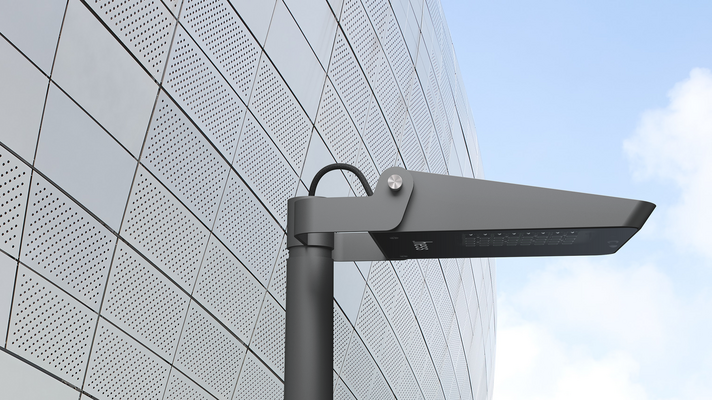

As a bracket-mounted luminaire, a bracket-mounted luminaire with a long bracket and as a wall bracket luminaire. As a further variant, the REVARA will also be available as a bollard luminaire.

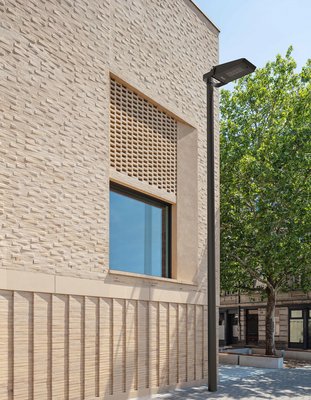

As a complete family, the REVARA is therefore ideally suited to create urban spaces in a uniform and harmonious overall picture.

THE HIGHLIGHTS

Sophisticated design meets high functionality. The REVARA combines the best of both worlds. A high design standard goes hand in hand with many technical refinements and a simplicity that is more than impressive in terms of installation and maintenance of the luminaire.

See for yourself how well thought-out the concept of the REVARA is:

 Housing can be opened without tools –

Simply push the button which releases the self-locking device and safety catch
 Electrical system can be swung downwards to open and replaced without tools –
 The electrical system is automatically de-energised when the unit is swung open
 Drivers can be changed without tools
 (with the electrical system swung open)
 Wide range of system wattages –
 Power range from 21–97 watts
 Ideal for mounting heights from 4.5m–8m
 Stepwise adjustment of the setting angle –

Angle adjustable from 0°–30° via lateral fixing
 Variety of optics –

for almost every requirement

THE REVARA L 600 BASIC

The REVARA L 600 BASIC represents the entry into the world of REVARA. Designed for projects with a particularly tight budget, this version already has all the essential features needed to enhance urban spaces in an attractive way.

The REVARA L 600 BASIC is equipped with the following:

 Luminaire colour in attractive DB703
 System powerfrom 21 up to 50 watts
 Light colour in either 1800K, 2700K, 3000K or 4000K
 Choice of protection rating I or II
 LEVO3 optics in 3 different versions:
 O1, O3 and O7
 Can be opened and serviced with simple tools
 Dimmable via AstroDim, StepDim and DALI

Download the brochure:

Pole- and wall mounted luminaire:
