ALT BERLIN

88.01000.0V001 OHNE PALMETTEN

Roof and luminaire cage made of aluminium alloy. Support elements made of cast aluminium. Glass cage closed, luminaires enclosure made of PMMA, clear or structured. With mounting bracket. Pole made with flange plate or embedded base. Light colour: 1700 K / 1900 K / 2000 K / 2200 K / 2700K / 3000 K / 4000 K. Protection rating I or II.

ALT BERLIN

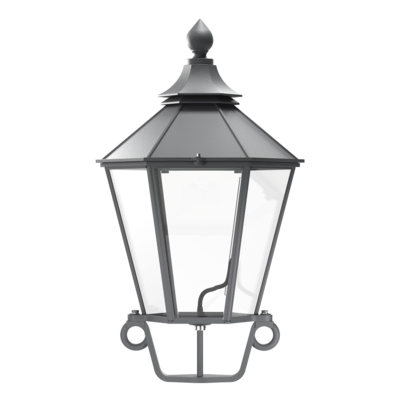

Luminaire ALT BERLIN
System - Made by Hess
With mounting bracket
Suitable for Hess wall brackets or Hess cast iron masts
Roof and basket made of cast aluminium
Selection for glass:
- Glass basket made of polymethyl methacrylate (PMMA), clear, smooth
- Glass basket made of polymethyl methacrylate (PMMA), textured
Selection for assembly:
- TOP mounting on Hess wall bracket
- TOP mounting on Hess cast iron pole
Note on connecting the Alt Berlin luminaire to other poles:
(please order the adaptors separately)
Spigot ø 60.3 mm – 99.81099.0V001 Alt Berlin/Alt Brandenburg pole adapter
Spigot ø 76.1 mm – 99.81099.0V002 Alt Berlin pole adapter
Spigot ø 88.9 mm – 99.81099.0V003 Alt Berlin pole adapter
Selection of optics:
ASY10, ASY11, ASY12, ASY13, ASY14, ASY17, ASY27, ASY28, ASY30, ASY32, ASY33, ASY34, ASY35, CIR06, M4, M5, M6, M7, M8, SYM02
With LED fitting 16 LED 200-700mA, power 11-34W
Selection of light colours:
2200K, 2700K, 3000K, 4000K
For the optic ASY12, ASY14, CIR06, SYM02
the following light colours are also available:
1700K, 1900K, 2000K
With electronic ballast (220-240V/50-60Hz)
Selection of possible dimming/control:
Dali, StepDim, AstroDim or Zhaga
Selection with or without CLO (constant luminous flux)
Cable: 5G x 1.5 mm² - Length: 5000 mm (pole mounting)
Ingress protection IP54, protection class I or II
Colour standard: DB 703 (similar to Gris 2900 sablé)
Different RAL (classic solid colours), Hess DB and Hess Glimmer colours
Any other colours available on request
Optionally available with special coating:
Sea-air resistant coating C5 or CX

Technical specifications

Ingress protection
IP54
Version
Glass, clear , Verglasung strukturiert, fein , Without finials
Safety class
I , II
Net weight [kg]
12
LED Lifetime
L90 B10 / 100.000h - TA <=25° C
Rated input power [W]
11 W , 13 W , 16 W , 18 W , 20 W , 23 W , 25 W , 27 W , 29 W , 32 W , 34 W
Rated luminous flux [lm]
1071 - 4970 lm
Height [mm]
900
Area exposed to wind [m²]
0,23 m²

Drawing

Downloads

General

Installation instructions

Lighting

LDT file
Photometric Data Sheet

Planning

Graphic with dimensions
3D DWG

Accessories

Bracket Length [mm]
99.81099.0V004
WANDARM
AUSLADUNG 610 D703 		610
99.81099.0V005
WANDARM
AUSLADUNG 800 D703 		800
99.81099.0V006
WANDARM
AUSLADUNG 740 D703 		740
Mounting MH [mm]
20.21000.3630V002
MASTE
FR Ø 320 MM/FÜR 1-FACH AUSFÜHR./KANDELABERKR. 		Round flange plate 3630
20.21000.3630V001
MASTE
FR-FÜR 1-FACH AUSFÜHRUNG 		Round flange plate 3630
20.21000.4040V001
MASTE
FR-FÜR 2-FACH-4-FACH AUSF. 		Round flange plate 4040
20.21001.3705V003
MASTE
FR Ø340 MM 		Round flange plate 3705
20.21001.3705V001
MASTE
ER 		Embedded base 3705
20.21001.3705V004
MASTE
ER AUSLEGER 2-FACH 		Embedded base 3705
99.81099.0V007
KANDELABERKRONE
ALT KARLSRUHE/ALT BERLIN/ALT MAGDEBURG D703
99.81099.0V008
KANDELABERKRONE
ALT KARLSRUHE/ALT BERLIN/ALT MAGDEBURG D703
20.21001.0V002
ERDSTÜCK
Ø340 MM
20.21001.0V001
ERDSTÜCK
Ø320MM
Spigot ø in [mm]
99.81099.0V001
ADAPTER
Z60 INKL. SCHRAUBEN D703 		60
99.81099.0V002
ADAPTER
Z76 INKL. SCHRAUBEN D703 		76
99.81099.0V003
ADAPTER
Z89 INKL. SCHRAUBEN D703 		89

The PDF datasheet contains your selected accessories.
