V7420
14.87420.2V001 TOP I3/4 PMMA
V7420
Decorative luminaire in antique design V7420
Roof and luminaire basket made of cast aluminium
Mounting via I-3/4" internal thread
(An additional adapter for mounting on poles with spigot ø 76 mm
can be ordered separately if required 14.80000.0V015)
Selection roof:
- Roof without palmettes
- Roof with palmettes
Selection glass:
- Glass made of impact-resistant PMMA, clear smooth
- Glass made of impact-resistant PMMA, pearled
Selection of optics:
- Light distribution: ASY10 asymmetrical wide beam
Possible application: streets, pathways
- Light distribution: ASY11 asymmetrical wide beam
Possible application: streets, pathways
- Light distribution: ASY12 asymmetrical wide beam
Possible application: streets, pathways
- Light distribution: ASY13 asymmetrical extra wide beam
Possible application: streets, pathways
- Light distribution: ASY14 asymmetrical deep beam
Possible application: squares, traffic junctions
- Light distribution: ASY17 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY27 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY28 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY30 asymmetrical wide beam
Possible application: streets, squares, traffic junctions
- Light distribution: ASY32 asymmetrical deep beam
Possible application: squares, traffic junctions
- Light distribution: ASY33 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY34 asymmetrical extra wide beam
Possible application: streets, pathways
- Light distribution: ASY35 asymmetrical extra wide beam
Possible application: streets, pathways
- Light distribution: CIR06 rotationally symmetrical square
Possible application: squares
- Light distribution: M4 rotationally symmetrical square
Possible application: squares
- Light distribution: M5 rotationally symmetrical square
Possible application: squares
- Light distribution: M6 rotationally symmetrical
Possible application: squares
- Light distribution: M7 axis-symmetrical extra wide beam
Possible application: combined traffic routes, squares
- Light distribution: M8 rotationally symmetrical
Possible application: squares
- Light distribution: SYM02 axis-symmetrical extra wide beam
Possible application: combined traffic routes, squares
With LED fitting 16 LED 200-700mA, power 11-34W
Selection of light colours:
- Light colour: 2200K
- Light colour: 2700K
- Light colour: 3000K
- Light colour: 4000K
For the optics ASY12, ASY14, CIR06, SYM02,
the following light colours are also available:
- Light colour: 1700K generated by amber optics
- Light colour: 1900K generated by amber optics
- Light colour: 2000K generated by amber optics
With electronic ballast (220-240V/50-60Hz)
Selection of possible dimming/control:
- With dimming via Dali
- With dimming via StepDim (control phase)
- With dimming via AstroDim
- With Zhaga Socket top, open source (D4i)
- With Zhaga Socket bottom, open source (D4i)
- With Zhaga Socket top and bottom, open source (D4i)
- With Zhaga Socket top, City Touch (D4i)
- With Zhaga Socket bottom, City Touch (D4i)
- With Zhaga Socket top and bottom, City Touch (D4i)
(Note: Zhaga DOWN or UP + DOWN is not suitable for
IR motion detectors. The DOWN mounting is carried out
on an internal electrical plate behind the glass.
This would therefore restrict the IR function.)
Selection with or without constant luminous flux:
- with CLO (constant luminous flux)
(corresponds to output mA and W -10%)
- without CLO (constant luminous flux)
Optionally available with:
- 10KV module
- LS3 Dip switch (only possible with 350/500/620mA)
- RWE special wire assignment:
black:L; blue:N; green-yellow:PE; brown:Lst; grey:reserve
Cable selection (specify in 1000 mm steps):
- Without pre-wiring
- Cable: 5G x 1.0 mm² - Length: 3000 mm – 15000 mm
Ingress protection IP54
Selection of protection class:
- Protection class I
- Protection class II
Selection of colour:
- Colour: DB 703 (similar to Gris 2900 sablé)
- Colour: (please specify)
Optionally available with special coating:
- Sea-air resistant coating for medium requirements (C5)
- Sea-air resistant coating for high, extreme requirements (CX)
(this requires precise testing in advance)
Technical specifications
- Ingress protection
- IP54
- Safety class
- I , II
- IK-Value
- IK06
- Net weight [kg]
- 12.74
- LED Lifetime
- L90 B10 / 100.000h - TA <=25° C
- Rated input power [W]
- 11 W , 13 W , 16 W , 18 W , 20 W , 23 W , 25 W , 27 W , 29 W , 32 W , 34 W
- Rated luminous flux [lm]
- 938 - 4616 lm

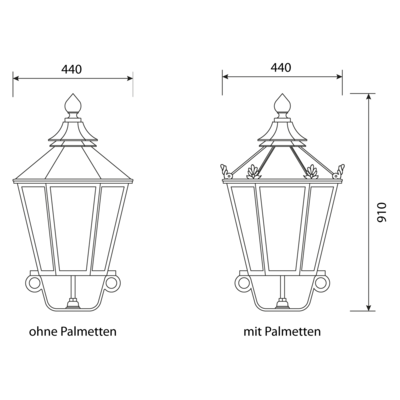

Drawing
