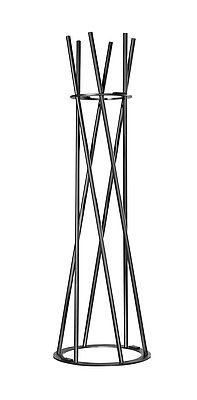

Tree guard FANO R 2

30.30902.0V001 MONTAGE BS

Suitable for tree grates with round inner opening. Steel, galvanised. Bolted to tree grate. With level compensation.

FANO R2: Height 1930 mm, ø 815 mm


Tree guard FANO R 2

Tree guard FANO R 2
Galvanised steel
Dimensions: Top ø 450 mm ; bottom ø 815 mm
Total height: 1930 mm
With fixation set C for installation on tree grate
With level compensation
Colour: RAL 9011 - graphite black
==> registered design protection


Technical specifications

Height [mm]
1930

Drawing


Downloads

Planning

Graphic with dimensions
