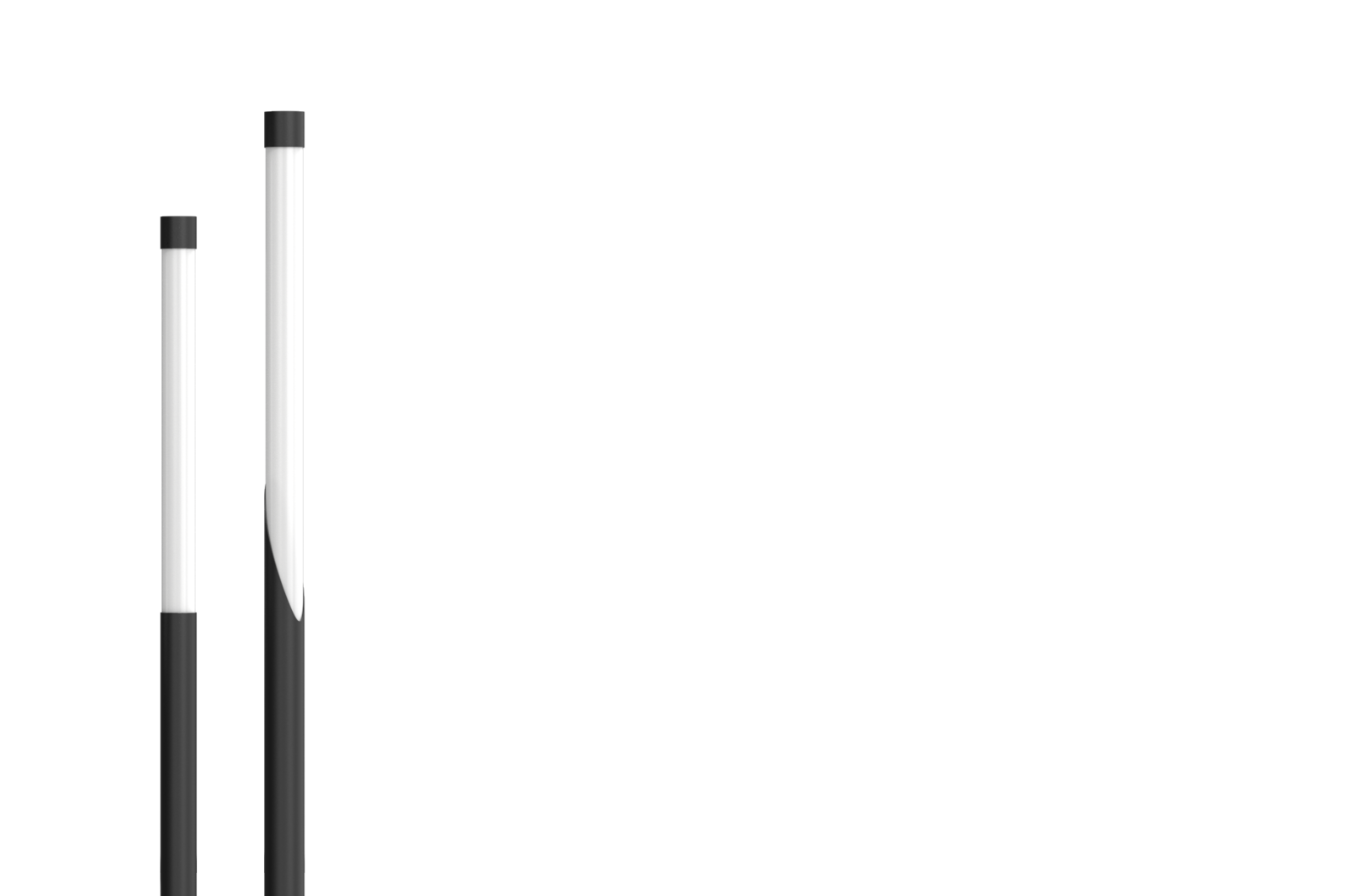

VIGO

Upscale and distinguished

Versatile and sophisticated – that’s the best way to describe the appearance of the illuminating columns and bollards of the VIGO product range. Distinguished in front of buildings, impressive on carparks and paths. With the VIGO from Hess, you set unmistakable highlights – and thus underscore the perceived value of the exterior space.

Projects

Norddeich, Norden - DE

Cincinnati Art Climb, Cincinnati - US

Tax Office, Geldern - DE

Sunyard, Munich - DE

HRW Campus, Mülheim an der Ruhr - DE

ADAC Center, Munich - DE

Suzlon One Earth, Pune - IN

Technical details

Upper cover made of aluminium, painted. Luminaire enclosure made of PMMA, frosted. Round luminaire base made of aluminium, tapered. With flange plate. Protection rating I or II.

VIGO 2500: Optionally fitted with RGB (approx. 25W) or LED (approx. 23W, light colours 3000K/4000K)

VIGO 4000: Optionally fitted with RGB (approx. 30W) or LED (approx. 32W, light colours 3000K/4000K)

VIGO 6500: Equipped with RGB (approx. 35W)

Upper cover made of aluminium, painted. Luminaire enclosure made of PMMA, frosted. Round luminaire base made out of aluminium, straight. With flange plate. Protection rating I or II.

VIGO G 2500: Optionally fitted with RGB (approx. 25W) or LED (approx. 23W, light colours 3000K/4000K)

VIGO G 4000: Optionally fitted with RGB (approx. 30W) or LED (approx. 32W, light colours 3000K/4000K)

VIGO G 6500: Equipped with RGB (approx. 35W)

Upper cover made of aluminium, painted. Luminaire enclosure made of PMMA, frosted. With flange plate. Optionally fitted with RGB (approx. 30W) or LED (approx. 32W, light colours 3000K/4000K) Protection rating I or II.

VIGO Q 4000: Rectangular illuminating column made of aluminium, column base tapered.

VIGO QG 4000: Rectangular illuminating column made of aluminium, column base straight.

pper cover made of aluminium, painted. Luminaire enclosure made of PMMA, frosted. With flange plate. Optionally fitted with RGB (approx. 30W) or LED (approx. 32W, light colours 3000K/4000K) Protection rating I or II.

VIGO Q 4000: Rectangular illuminating column made of aluminium, column base tapered.

VIGO QG 4000: Rectangular illuminating column made of aluminium, column base straight.

Ingress protection: IP54
IK-Value: IK07
LED Lifetime: L80 B10 / 85.000h - TA <= 25°C
L70 B10 / 50.000h - TA >25 - <=50°C

You will find further technical data if you have specified a variant.

Choose variant
