LINEA
Restrained design
The LINEA convinces with its understated, simple design - and it is precisely this simple elegance that makes it a real eye-catcher. In addition to its elegant appearance, the LINEA has a lot to offer, also and especially for demanding mounting heights.
Related Products
Technical details
The LINEA 1200 & 1500 is a modular luminaire – Made by Hess.
The LINEA luminaire can be used as both a pole-mounted luminaire and a wall-mounted luminaire. Rectangle luminaire body made of cast aluminium. Luminaire enclosure made of single-pane safety glass, printed inside. To be opened via three slotted screws, replacement possible without tools. Easy maintenance of the electrical unit. Light colors: 1700K / 1900K / 2000K / 2700K / 3000K / 4000K. Protection rating I or II.

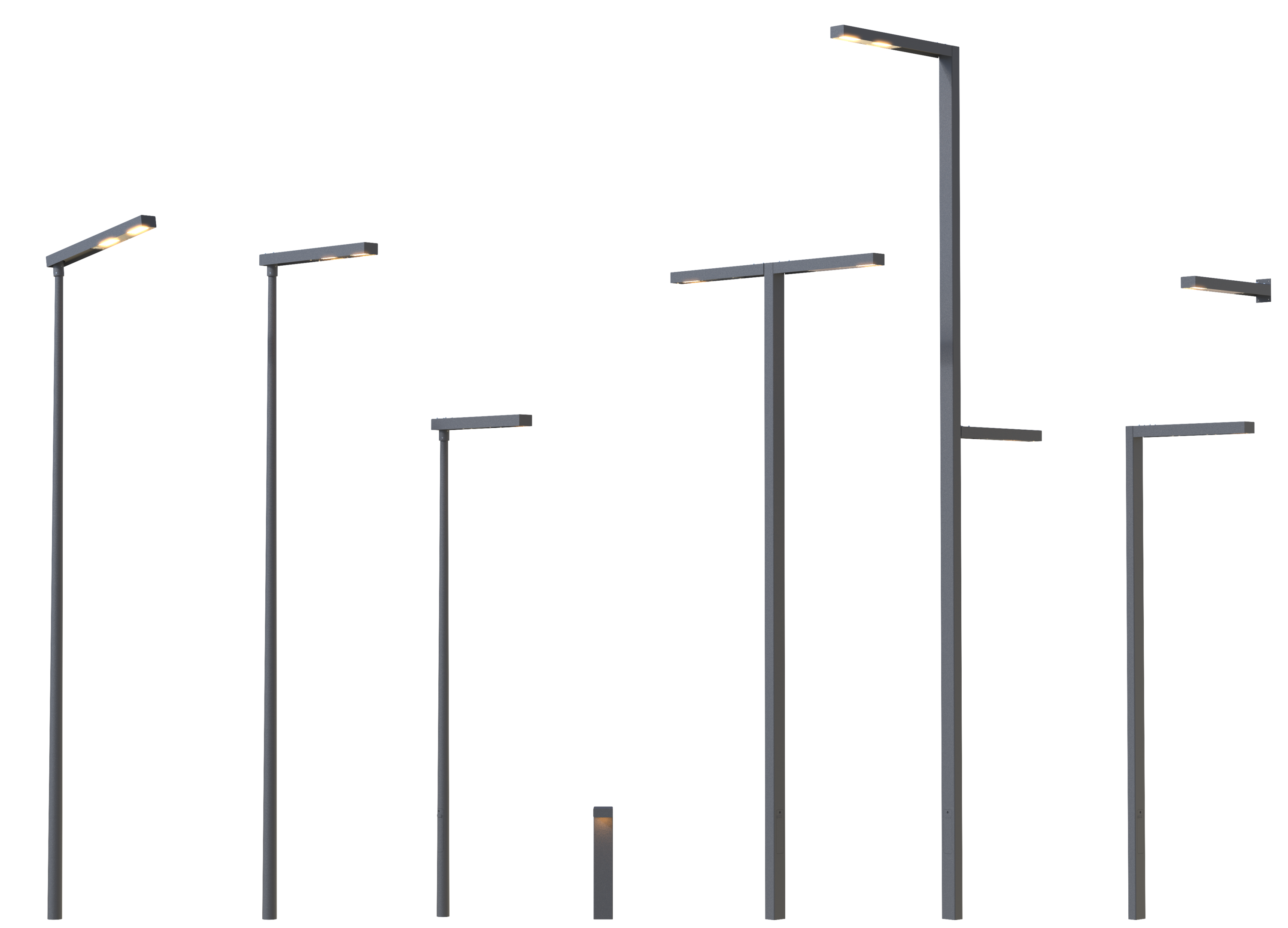

The pole-mounted system consists of a luminaire head and a rectangular Hess quality pole, cylindrically stepped, steel, galvanised, optionally with continuous embedded base or flange plate.
The wall-mounted system consists of the luminaire head Linea 1200 and a matching wall bracket.
LINEA 1200: Length 1200 mm. Recommended for heights up to 6 m.
LINEA 1500: Length 1500 mm. Recommended for heights from 6 m.
- LED Lifetime
- L90 B10 / 100.000h - TA <=25° C
- Rated luminous flux [lm]
-
LINEA 1200: 2282 - 7062 lm LINEA 1500: 4564 - 14123 lm - Ingress protection
- IP65
- IK-Value
- IK08
You will find further technical data if you have specified a variant.
Product overviewDimensions
Further information
