Restrained design

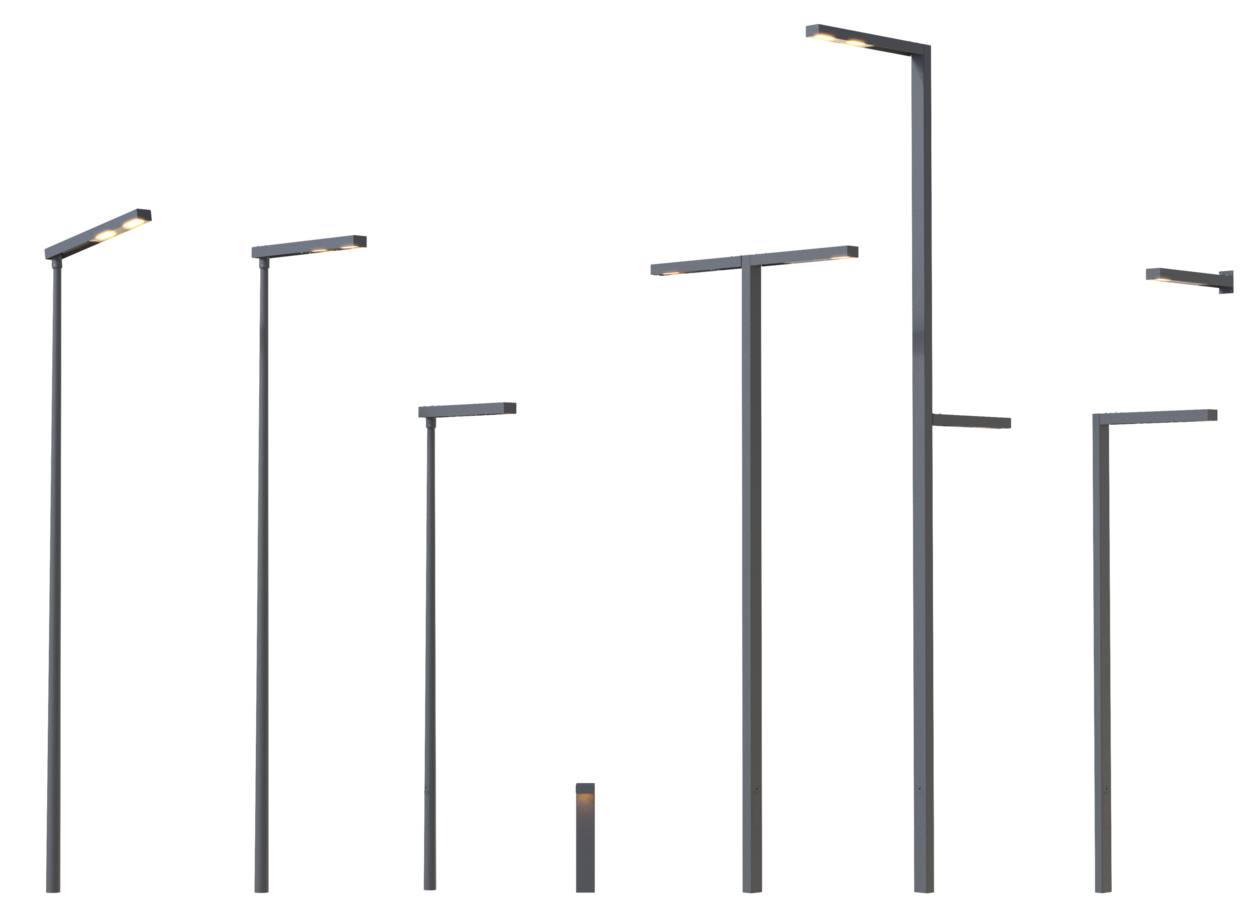

The LINEA convinces with its understated, simple design - and it is precisely this simple elegance that makes it a real eye-catcher. In the LINEA MA version, the luminaire, which could be attached to a round pole by means of a pigtail, can be adjusted continuously at an angle of 0° to 10°. In addition to its elegant appearance, the LINEA has a lot to offer, also and especially for demanding mounting heights.

Related Products

Technical details

Rectangle luminaire body made of cast aluminium. Luminaire enclosure made of single-pane safety glass, printed inside. To be opened via three slotted screws, replacement possible without tools. Easy maintenance of the electrical unit. Light colors: 1800K / 2700K / 3000K / 4000K. Protection rating I or II.Infinitely variable inclination of the luminaire from 0° - 10°.

LINEA 1200: Length 1200 mm. Recommended for heights up to 6 m.

LINEA 1500: Length 1500 mm. Recommended for heights from 6 m.

LED Lifetime
L80 B10 / 100.000h - TA <=25° C
L70 B10 / 50.000h - TA >25 - <=50°C

You will find further technical data if you have specified a variant.
