CONVERSION KIT SERA 740

99.00401.1V018 KONV->LEVO3 53W SKII (3000K)/O6R

LED KIT for the SERA luminaire with HIT70W or HIT150W, white aluminium electrical carrier plate with LED printed circuit boards and driver, asymmetrical emission characteristics.

LED KITs can only be sold in countries with 220-240V/50-60Hz.


CONVERSION KIT SERA 740

Conversion kit Sera 740
-> Conventional on Levo3 (for existing Hess luminaires)
Luminaire cover made of toughened safety glass (ESG float glass), clear
Edge printed RAL 7015
Support plate made of aluminum

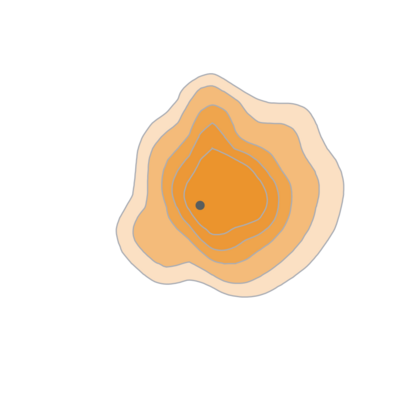

Light distribution: Asymmetrical right-oriented
(Characteristic: For pedestrian crossing illumination)
Elec. equip.: LED LEVO3 O6R approx. 53W (3000K)
With electronical ballast (220-240V/50-60Hz)
- with CLM (350-500mA, 37-53W)
- without CLM (500mA, 53W)
Protection rating II
Following versions are available:
Without dimming and without CLM
(luminous output degradation compensation)
Or with dimming via DALI, StepDim or AstroDim
AND/OR with CLM (please specify on your purchase order!)


Technical specifications

Safety class
II
Rated input power
53 W
