ALT BERLINCHEN

88.09400.0V001 AN HESS WANDARM ODER HESS GUSSMAST

Special aluminium alloy construction with cast aluminium mount. Comes with clear or translucent, textured PMMA enclosure. Integral top reflector. Wall bracket included. Pole made of cast aluminium with flange plate. Protection rating I or II.

ALT BERLINCHEN

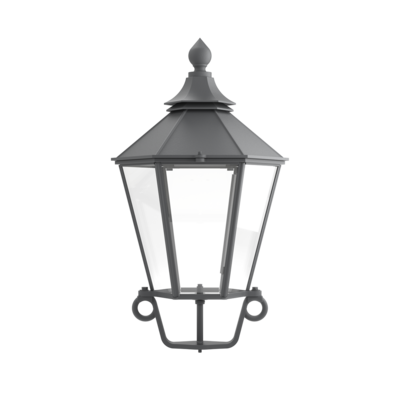

Luminaire ALT BERLINCHEN
System - Made by Hess
With mounting bracket
Suitable for Hess wall brackets or Hess cast iron masts
Roof and basket made of cast aluminium
Selection for glass:
- Glass basket made of polymethyl methacrylate (PMMA), clear, smooth
- Glass basket made of polymethyl methacrylate (PMMA), textured
With LED fitting 1 AC-Module
Light colour 2700K
Power 10W
230V/AC without electronic ballast
Selection of possible dimming/control:
Dali, Casambi
Cable: 5G x 1.5 mm² - Length: 2500 mm (pole mounting), 1000 mm (wall mounting)
Ingress protection IP54, protection class I or II
Colour standard: DB 703 (similar to Gris 2900 sablé)
Different RAL (classic solid colours), Hess DB and Hess Glimmer colours
Any other colours available on request
Optionally available with special coating:
Sea-air resistant coating C5 or CX
