OSLO 650-2

88.02400.0V002 TOP Z76 PC IK10 LAM

Round luminaire canopy, horizontally split in two, made of aluminium, plain coloured. Support elements made of aluminium, painted. Cylindrical luminaire enclosure made of PC. Round luminaire body made of aluminium, optionally with or without louvres. Light colour: 1700K / 1900K / 2000K / 2200K / 2700K / 3000K / 4000K. Protection rating I or II.


OSLO 650-2

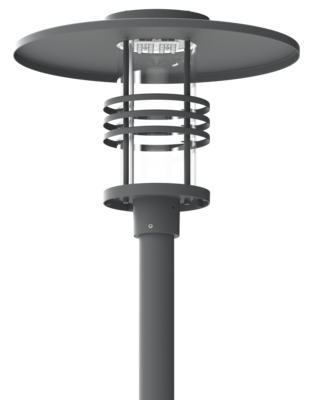

Surface-mounted luminaire OSLO 650-2
For TOP mounting on wall/ pole brackets or pole tops
Cast aluminium housing
Lampshade ø 650 mm and cover, single-colour painted
Polycarbonate glass (IK10)
Spigot ø 76.1 mm
With slats
Optional erhältlich:
Mit innenliegendem Abschatter aus Aluminium
zur 180° Abschirmung, lackiert in Farbe RAL 9005 Tiefschwarz, matt
Selection of optics:
ASY10, ASY11, ASY12, ASY13, ASY14, ASY17, ASY27, ASY28, ASY30,
ASY32, ASY33, ASY34, ASY35, CIR06, M4, M5, M6, M7, M8, SYM02
With LED fitting 16 LED 200-700mA, power 11-34W
Selection of light colours:
2200K, 2700K, 3000K, 4000K
For the optics ASY12, ASY14, CIR06, SYM02,
the following light colours are also available:
1700K, 1900K, 2000K generated by amber optics
With electronic ballast (220-240V/50-60Hz)
Selection of possible dimming/control:
Dali, StepDim (control phase), AstroDim or Zhaga
Selection with or without CLO (constant luminous flux)
Cable: 5G x 1.5 mm² - Length: 5000 mm
Ingress protection IP65, Protection class I or II
Colour standard: DB 703 (similar to Gris 2900 sablé).
Different RAL (classic solid colours), Hess DB and Hess Glimmer colours.
Any other colours available on request.
Optionally available with special coating (C5) or (CX)


Technical specifications

Ingress protection
IP65
Version
With external louvers
Safety class
I , II
ULOR
3,1%
IK-Value
IK10
Net weight [kg]
12
Spigot ø in [mm]
76,1
LED Lifetime
L90 B10 / 100.000h - TA <=25° C
Rated input power [W]
11 W , 13 W , 16 W , 18 W , 20 W , 23 W , 25 W , 27 W , 29 W , 32 W , 34 W
Rated luminous flux [lm]
1037 - 4485 lm
Height [mm]
500
Area exposed to wind [m²]
0,11 m²

Drawing


Downloads

General

Installation instructions

Planning

Graphic with dimensions
3D DWG

Accessories

Bracket Length [mm] Bracket MH [mm] Spigot ø in [mm]
10.32401.2V001
AUSLEGER
PARALLEL ROHRE
900 twin 0 76,1
Bracket Length [mm] Bracket MH [mm] Spigot ø in [mm]
10.42400.0V001
WANDARM
PARALLEL ROHRE
500 single 0 76,1
Width [mm] Height [mm]
99.00409.0V010
DIFFUSOR
FÜR 2BOARDS PC SATINIERT (12/15/20/28W)
50 12
Version Mounting Shape Height above ground [mm] Finish Spigot ø in [mm]
99.21000.0V015
Stepped poles with embedded base
ES 2,9/3,2 1RT
Single stepped Continuous embedded base cylindrical 3000 Coated - DB703 76
99.21000.0V001
Stepped poles with embedded base
ES 2,9/3,2 1RT
Single stepped Continuous embedded base cylindrical 3500 Coated - DB703 76
99.21000.0V002
Stepped poles with embedded base
ES 2,9/3,2 1RT
Single stepped Continuous embedded base cylindrical 4000 Coated - DB703 76
99.21000.0V003
Stepped poles with embedded base
ES 2,9/3,2 1RT
Single stepped Continuous embedded base cylindrical 4500 Coated - DB703 76
99.21000.0V004
Stepped poles with embedded base
ES 2,9/3,2 1RT
Single stepped Continuous embedded base cylindrical 5000 Coated - DB703 76
99.21001.0V014
Stepped poles with flange plate
ES 2,9/3,2 1RT
Single stepped Square flange plate cylindrical 3000 Coated - DB703 76
99.21001.0V001
Stepped poles with flange plate
ES 2,9/3,2 1RT
Single stepped Square flange plate cylindrical 3500 Coated - DB703 76
99.21001.0V002
Stepped poles with flange plate
ES 2,9/3,2 1RT
Single stepped Square flange plate cylindrical 4000 Coated - DB703 76
99.21001.0V003
Stepped poles with flange plate
ES 2,9/3,2 1RT
Single stepped Square flange plate cylindrical 4500 Coated - DB703 76
99.21001.0V004
Stepped poles with flange plate
ES 2,9/3,2 1RT
Single stepped Square flange plate cylindrical 5000 Coated - DB703 76

The PDF datasheet contains your selected accessories.
