OSLO 650-2
88.02400.0V001 TOP Z76 PC IK10

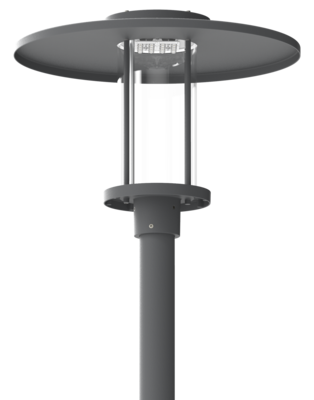

Round luminaire canopy, horizontally split in two, made of aluminium, plain coloured. Support elements made of aluminium, painted. Cylindrical luminaire enclosure made of PC. Round luminaire body made of aluminium, optionally with or without louvres. Light colour: 1700K / 1900K / 2000K / 2200K / 2700K / 3000K / 4000K. Protection rating I or II.
OSLO 650-2
Surface-mounted luminaire OSLO 650-2
For TOP mounting on wall/ pole brackets or pole tops
Cast aluminium housing
Lampshade ø 650 mm and cover, single-colour painted
Polycarbonate glass (IK10)
Spigot ø 76.1 mm
Without slats
Available as an option:
With an internal aluminium shield
for 180° shielding, painted in RAL 9005 Deep Black, matt
Selection of optics:
- Light distribution: ASY10 asymmetrical wide beam
Possible application: streets, pathways
- Light distribution: ASY11 asymmetrical wide beam
Possible application: streets, pathways
- Light distribution: ASY12 asymmetrical wide beam
Possible application: streets, pathways
- Light distribution: ASY13 asymmetrical extra wide beam
Possible application: streets, pathways
- Light distribution: ASY14 asymmetrical deep beam
Possible application: squares, traffic junctions
- Light distribution: ASY17 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY27 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY28 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY30 asymmetrical wide beam
Possible application: streets, squares, traffic junctions
- Light distribution: ASY32 asymmetrical deep beam
Possible application: squares, traffic junctions
- Light distribution: ASY33 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY34 asymmetrical extra wide beam
Possible application: streets, pathways
- Light distribution: ASY35 asymmetrical extra wide beam
Possible application: streets, pathways
- Light distribution: CIR06 rotationally symmetrical square
Possible application: squares
- Light distribution: M4 rotationally symmetrical square
Possible application: squares
- Light distribution: M5 rotationally symmetrical square
Possible application: squares
- Light distribution: M6 rotationally symmetrical
Possible application: squares
- Light distribution: M7 axis-symmetrical extra wide beam
Possible application: combined traffic routes, squares
- Light distribution: M8 rotationally symmetrical
Possible application: squares
- Light distribution: SYM02 axis-symmetrical extra wide beam
Possible application: combined traffic routes, squares
With LED fitting 16 LED 200-700mA, power 11-34W
Selection of light colours:
- Light colour: 2200K
- Light colour: 2700K
- Light colour: 3000K
- Light colour: 4000K
For the optics ASY12, ASY14, CIR06, SYM02,
the following light colours are also available:
- Light colour: 1700K generated by amber optics
- Light colour: 1900K generated by amber optics
- Light colour: 2000K generated by amber optics
With electronic ballast (220-240V/50-60Hz)
Selection of possible dimming/control:
- With dimming via Dali
- With dimming via StepDim (control phase)
- With dimming via AstroDim
Selection with or without constant luminous flux:
- with CLO (constant luminous flux)
(corresponds to output mA and W -10%)
- without CLO (constant luminous flux)
Cable: 5G x 1.5 mm² - Length: 5000 mm
Ingress protection IP65
Selection of protection class:
- Protection class I
- Protection class II
Selection of colour:
- Colour standard: DB 703 (similar to Gris 2900 sablé)
- Colour: (please specify a different colour)
Optionally available with special coating:
- Sea-air resistant coating for medium requirements (C5)
- Sea-air resistant coating for high, extreme requirements (CX)
(this requires precise testing in advance)
Technical specifications
- Ingress protection
- IP65
- Version
- Without external louvers
- Safety class
- I , II
- ULOR
- 3,1%
- IK-Value
- IK10
- Net weight [kg]
- 12
- Spigot ø in [mm]
- 76,1
- LED Lifetime
- L90 B10 / 100.000h - TA <=25° C
- Rated input power [W]
- 11 W , 13 W , 16 W , 18 W , 20 W , 23 W , 25 W , 27 W , 29 W , 32 W , 34 W
- Rated luminous flux [lm]
- 1166 - 4983 lm
- Height [mm]
- 500
- Area exposed to wind [m²]
- 0,11 m²
Drawing
