CE 200-2
88.02000.0V009 ARR PC IK10
CE 200-2

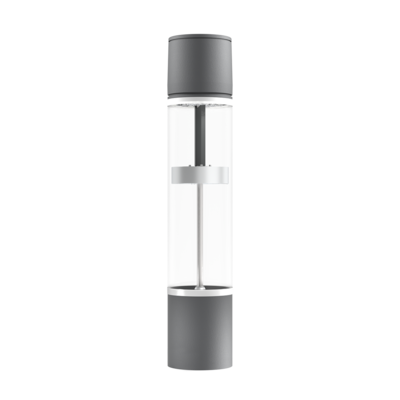

Top element 200-2 ARR
For City Elements 200-2 column luminaire
Made of aluminium tube ø 200 mm
Element height 1000 mm
Without inspection door
Glass cylinder made of polycarbonate IK10, clear
Selection of optics:
- Light distribution: ASY10 asymmetrical wide beam
Possible application: streets, pathways
- Light distribution: ASY11 asymmetrical wide beam
Possible application: streets, pathways
- Light distribution: ASY12 asymmetrical wide beam
Possible application: streets, pathways
- Light distribution: ASY13 asymmetrical extra wide beam
Possible application: streets, pathways
- Light distribution: ASY17 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY27 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY30 asymmetrical wide beam
Possible application: streets, squares, traffic junctions
- Light distribution: ASY32 asymmetrical deep beam
Possible application: squares, traffic junctions
- Light distribution: ASY33 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY34 asymmetrical extra wide beam
Possible application: streets, pathways
- Light distribution: ASY35 asymmetrical extra wide beam
Possible application: streets, pathways
- Light distribution: CIR06 rotationally symmetrical square
Possible application: squares
- Light distribution: M5 rotationally symmetrical square
Possible application: squares
- Light distribution: M6 rotationally symmetrical
Possible application: squares
- Light distribution: M7 axis-symmetrical extra wide beam
Possible application: combined traffic routes, squares
- Light distribution: M8 rotationally symmetrical
Possible application: squares
With LED fitting 32 LED 550-1050mA, power 52-98W
Selection of light colours:
- Light colour: 2200K
- Light colour: 2700K
- Light colour: 3000K
- Light colour: 4000K
For the optics ASY12, CIR06,
the following light colours are also available:
- Light colour: 1700K generated by amber optics
- Light colour: 1900K generated by amber optics
- Light colour: 2000K generated by amber optics
With electronic ballast (220-240V/50-60Hz)
Selection of possible dimming/control:
- With dimming option via Dali
- With dimming via StepDim (control phase)
- With dimming via AstroDim
- With Zhaga Socket Book 18 top, open source (D4i)
- With Zhaga Socket Book 18 top, City Touch (D4i)
Selection with or without constant luminous flux:
- with CLO (constant luminous flux)
(corresponds to output mA and W -10%)
- without CLO (constant luminous flux)
Cable: 5G x 1.5 mm² - Length: 8000 mm
Ingress protection IP65
Selection of protection class:
- Protection class I
- Protection class II
Selection of colour:
- Colour standard: DB 703 (similar to Gris 2900 sablé)
- Colour: different RAL (classic solid colours),
Hess DB and Hess Glimmer colours (to be specified).
- Any other colours available on request.
Optionally available with special coating:
- Sea-air resistant coating for medium requirements (C5)
- Sea-air resistant coating for high, extreme requirements (CX)
(this requires precise testing in advance)
Technical specifications
- Ingress protection
- IP65
- Version
- ARR - Without shielding
- Safety class
- I , II
- IK-Value - PC
- IK10
- IK-Value - PMMA
- IK06
- Net weight [kg]
- 17.3
- LED Lifetime
- L90 B10 / 100.000h - TA <=25° C
- Rated input power [W]
- 52 W , 57 W , 61 W , 66 W , 70 W , 75 W , 80 W , 84 W , 93 W , 98 W , 89 W
- Rated luminous flux [lm]
- 5619 - 13399 lm
- Height [mm]
- 1000
- Area exposed to wind [m²]
- 0,2 m²
Drawing
