INSERT SHADOW LIGHTS SPEAKER
26.41900.0V001 F. STAGE 2/3 MIT LAUTSPRECHER BOSE FS2SE
Illuminating column made of aluminium tube, Ø 200 mm. Embedded base or flange plate for fastening. 2700 K / 3000 K / 4000 K protection rating I or II. BaseShield and SkyShield, to limit glare, available as accessories.
STAGE 1:
Fix preconfigured column in four different versions and four different heights. Control per insert, optionally without dimming or with dimming via DALI, StepDIM or AstroDIM. For lighting paths (height 5000 mm) with two inserts, roads (height 6000 mm) with three inserts, boulevards (height 7000 mm) with four inserts, squares (height 8000 mm) with five inserts.
STAGE 2:
Freely configurable column with five available inserts: ACCENT, AREA, AMBIENT, KEY and UNIQUE. Insert installed in modules that can be rotated by 360°. The spotlights can be adjusted vertically if required. Control per insert. In addition, inserts for CCTV, speaker and GOBO are available in the base element. Heights from 4200 mm to 8200 mm.
STAGE 3:
Freely configurable column with two available inserts: PREMIUM WASH and PREMIUM SPOT. Insert installed in modules that can be rotated by 360°. The spotlights are freely adjustable vertically and horizontally. Each spotlight can be controlled via DMX. In addition, inserts for CCTV, speaker and GOBO are available in the base element. Heights from 4200 mm to 8200 mm.
INSERT SHADOW LIGHTS SPEAKER

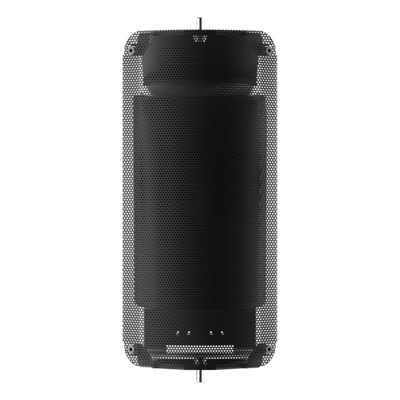

INSERT SHADOW LIGHTS - SPEAKER
For mounting in the base element Stage 2/3
Housing made of aluminium, painted matt black RAL 9005
Equipped with speaker BOSE FS2SE
Cover black aluminum perforated plate
Power max. 16W
Frequency range 83 Hz - 19 kHz
Max. Sound pressure 105 dB-SPL
Radiation angle 145°H x 140°V
Ingress protection IP 55 (Speaker)
Connection and cable extension provided by others
(Please note manufacturer specifications)
Following versions are available:
- pre setting 100V - 16W or
- pre setting 16 Ohm - 16W
(please make your selection)
pre-wired
Technical specifications
- Variant
- Insert - SPEAKER
