BASE ELEMENT 180-2 P-CR02/04 - 820 MM

16.20303.1V001 FQ 200/10 MM O. TÜR

BASE ELEMENT 180-2 P-CR02/04 - 820 MM

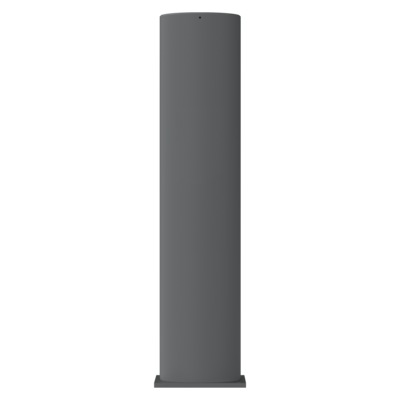

Base Element 180-2 P-CR02/04
For illuminated bollard CITY ELEMENTS 180-2
Made of aluminium tube ø 180 mm
With welded-in bayonet ring made of die-cast aluminium
(For the mounting of the top element)
Module length: 820 mm
With flange plate 200 x 200 x 10 mm
Without inspection door
Colour: DB 703 or all RAL- (classic- single shades),
Hess-DB and Hess-Glimmer-colours.
RAL pearl-mica-metallic-shades on request.

Technical specifications

Version
CR - Without supply
Net weight [kg]
6.68
LED Lifetime
L90 B10 / 100.000h - TA <=25° C
Rated luminous flux [lm]
502 - 2491 lm
Height [mm]
820

Drawing

Downloads

General

Installation instructions

Planning

Graphic with dimensions

Accessories

16.80303.1V001
ERDSTÜCK
ER 500 MM/FQ 200/8 F. P-CR02/04 P-CRVE02/04

The PDF datasheet contains your selected accessories.
