BASE ELEMENT 180-2 P-CR03 - 820 MM
16.20303.0V001 ER 500 MM O. TÜR
BASE ELEMENT 180-2 P-CR03 - 820 MM

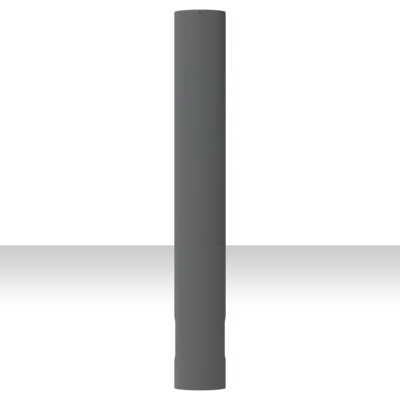

Base Element 180-2 P-CR03
For illuminated bollard CITY ELEMENTS 180-2
Made of aluminium tube ø 180 mm
With welded-in bayonet ring made of die-cast aluminium
(For the mounting of the top element)
Module length: 820 mm
Mounting via continuous embedded base at the pole
Embedded base lenght 500 mm, with two cable entry openings
Without inspection door
Colour: DB 703 or all RAL- (classic- single shades),
Hess-DB and Hess-Glimmer-colours.
RAL pearl-mica-metallic-shades on request.
Technical specifications
- Version
- CR - Without supply
- Net weight [kg]
- 9.87
- LED Lifetime
- L90 B10 / 100.000h - TA <=25° C
- Rated luminous flux [lm]
- 502 - 2491 lm
- Embedded base length [mm]
- 500
- Height [mm]
- 820
Drawing
