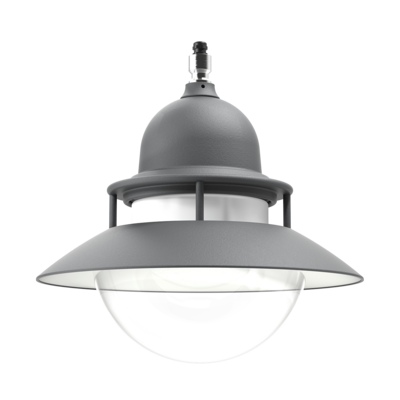

Decorative luminaire with shade V8450
Housing made of dimensionally stable and corrosion-resistant aluminium
Mounting via VPS (Vulkan patent system)
Selection for glass:
- Glass made of impact-resistant PMMA, clear smooth
- Glass made of impact-resistant PMMA, textured (ice crystal, frosted)
Selection of optics:
- Light distribution: ASY10 asymmetrical wide beam
Possible application: streets, pathways
- Light distribution: ASY11 asymmetrical wide beam
Possible application: streets, pathways
- Light distribution: ASY12 asymmetrical wide beam
Possible application: streets, pathways
- Light distribution: ASY13 asymmetrical extra wide beam
Possible application: streets, pathways
- Light distribution: ASY14 asymmetrical deep beam
Possible application: squares, traffic junctions
- Light distribution: ASY17 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY26 asymmetrical wide beam
Possible application: streets, squares, traffic junctions
- Light distribution: ASY27 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY28 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY30 asymmetrical wide beam
Possible application: streets, squares, traffic junctions
- Light distribution: ASY32 asymmetrical deep beam
Possible application: squares, traffic junctions
- Light distribution: ASY33 asymmetrical wide beam
with backward light component
Possible application: combined traffic routes, squares
- Light distribution: ASY34 asymmetrical extra wide beam
Possible application: streets, pathways
- Light distribution: ASY35 asymmetrical extra wide beam
Possible application: streets, pathways
- Light distribution: PC02R asymmetrical right-throw
Possible application: pedestrian crossings
- Light distribution: PC02L asymmetrical left-throw
Possible application: pedestrian crossings
- With LED fitting 16 LED 200-700mA, power 11-34W
Selection of light colours:
- Light colour: 2200K
- Light colour: 2700K
- Light colour: 3000K
- Light colour: 4000K
For the optics ASY12, ASY14, ASY26
the following light colours are also available:
- Light colour: 1700K generated by amber optics
- Light colour: 1900K generated by amber optics
- Light colour: 2000K generated by amber optics
With electronic ballast (220-240V/50-60Hz)
Selection of possible dimming/control:
- With dimming via Dali
- With dimming via StepDim (line switch)
- With dimming via AstroDim
- With Zhaga Socket top, open source (D4i)
- With Zhaga Socket bottom, open source (D4i)
- With Zhaga Socket top and bottom, open source (D4i)
- With Zhaga Socket top, City Touch (D4i)
- With Zhaga Socket bottom, City Touch (D4i)
- With Zhaga Socket top and bottom, City Touch (D4i)
Selection with or without constant luminous flux:
- with CLO (constant luminous flux)
(corresponds to output mA and W -10%)
- without CLO (constant luminous flux)
Optionally available with:
- 10KV module
- RWE special wire assignment:
black:L; blue:N; green-yellow:PE; brown:Lst; grey:reserve
Cable selection (specify in 1000 mm steps):
- Without pre-wiring
- Cable: 5G x 1.5 mm² - Length: 3000 mm – 15000 mm
Ingress protection IP65
Selection of protection class:
- Protection class I
- Protection class II
Selection of colour:
- Colour: DB 703 (similar to Gris 2900 sablé)
- Colour: (please specify)
Optionally available with special coating:
- Sea-air resistant coating for medium requirements (C5)
- Sea-air resistant coating for high, extreme requirements (CX)
(this requires precise testing in advance)

Technical specifications

Ingress protection
IP65
Safety class
I , II
IK-Value
IK06
Net weight [kg]
13
Width [mm]
520
LED Lifetime
L90 B10 / 100.000h - TA <=25° C
Rated input power [W]
11 W , 13 W , 16 W , 18 W , 20 W , 23 W , 25 W , 27 W , 29 W , 32 W , 34 W
Rated luminous flux [lm]
1257 - 5578 lm
Height [mm]
480

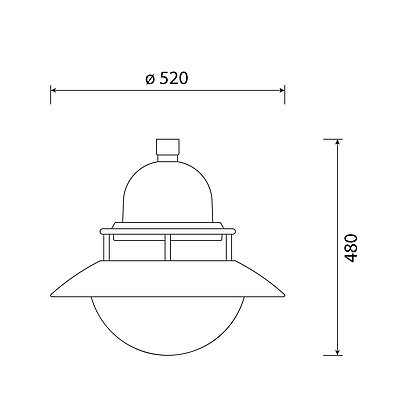

Drawing

Downloads

General

Installation instructions

Lighting

LDT file
Photometric Data Sheet

Planning

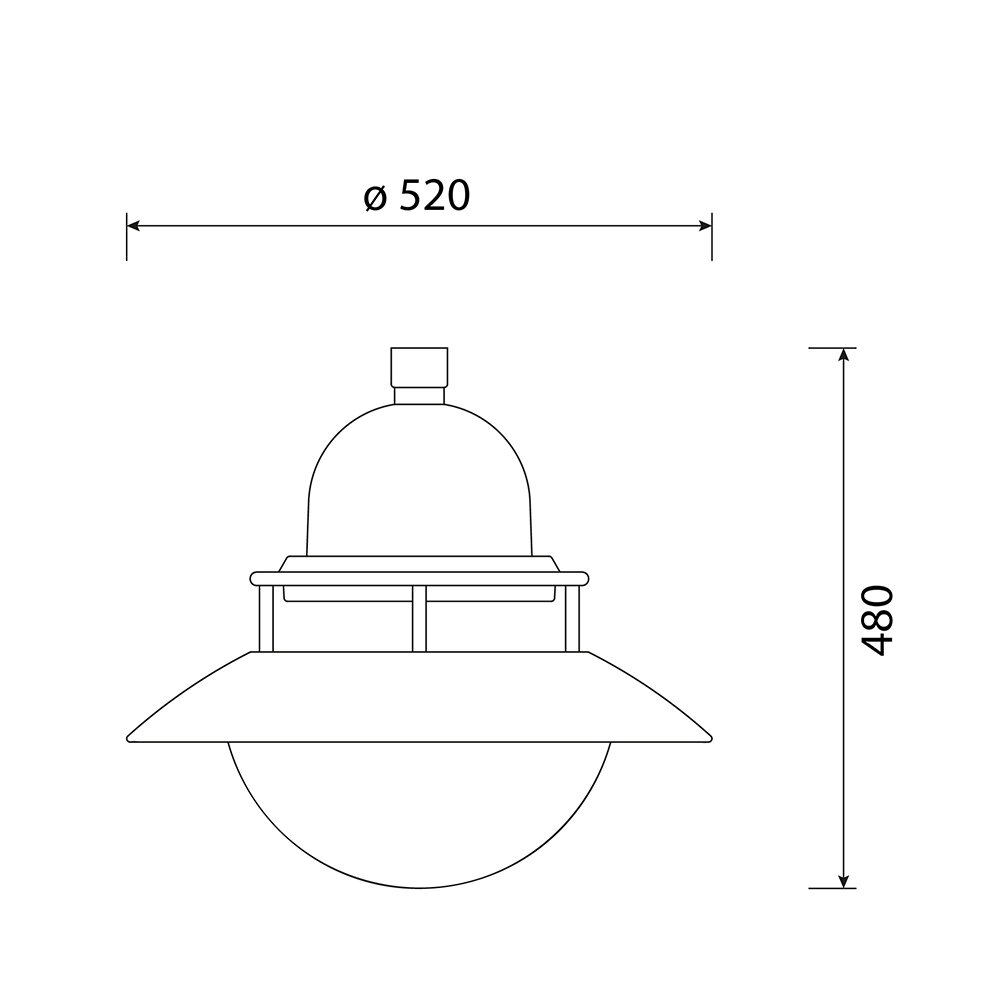

Graphic with dimensions

Accessories

Version Mounting Shape Height above ground [mm] Finish Spigot ø in [mm]
99.21000.0V002
Stepped poles with embedded base
ES 2,9/3,2 1RT 		Single stepped Continuous embedded base cylindrical 4000 Coated - DB703 76
99.21000.0V003
Stepped poles with embedded base
ES 2,9/3,2 1RT 		Single stepped Continuous embedded base cylindrical 4500 Coated - DB703 76
99.21000.0V004
Stepped poles with embedded base
ES 2,9/3,2 1RT 		Single stepped Continuous embedded base cylindrical 5000 Coated - DB703 76
99.21000.0V018
Stepped poles with embedded base
ES 2,9/2,9/3,2 1RT COR100 		Continuous embedded base cylindrical 6000 Coated - DB703
99.21000.0V005
Stepped poles with embedded base
ES 2,9/2,9/3,2 1RT 		Double stepped Continuous embedded base cylindrical 6000 Coated - DB703 76
99.21001.0V002
Stepped poles with flange plate
ES 2,9/3,2 1RT 		Single stepped Square flange plate cylindrical 4000 Coated - DB703 76
99.21001.0V003
Stepped poles with flange plate
ES 2,9/3,2 1RT 		Single stepped Square flange plate cylindrical 4500 Coated - DB703 76
99.21001.0V004
Stepped poles with flange plate
ES 2,9/3,2 1RT 		Single stepped Square flange plate cylindrical 5000 Coated - DB703 76
99.21001.0V005
Stepped poles with flange plate
ES 2,9/2,9/3,2 1RT 		Double stepped Square flange plate cylindrical 6000 Coated - DB703 76

The PDF datasheet contains your selected accessories.
