E MSK 3180 159/80 T FR300 703
12.27300.0V002 ES 4,0 1RT SYS RIVA 3550
Cylindrical luminaire enclosure made of PMMA, satin-finished. Cylindrical luminaire body made of aluminium, naturally anodised. Conical Hess quality pole, galvanised steel, with flange plate. Protection rating I.
E MSK 3180 159/80 T FR300 703

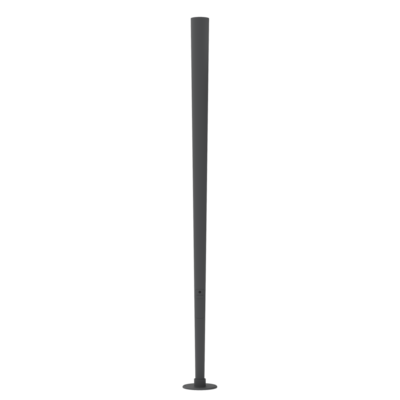

Pole Riva 3550
System – Made by Hess
Compatible with the luminaire head Riva
Conical steel pole, galvanised inside and out,
top diameter 159 mm, bottom diameter 80 mm,
with inspection-door and C-rail for fuse-box.
With round flange plate: diameter 300 mm, depth 15 mm,
with 4 holes, diameter 14 mm, on a diameter of 250 mm
Height above ground: 3180 mm
Colour: DB 703 (similar to Gris 2900 sablé)
Technical specifications
- Safety class
- I
- Net weight [kg]
- 54
- Rated luminous flux [lm]
- 820 - 900 lm
