SHADOW LIGHTS

The “unique” LIGHTING SYSTEM – made by Hess.

The SHADOW LIGHTS. An entirely new kind of lighting system that turns urban space into a stage for life with shadow and light.

A stage, created for attention.
A stage, created for suspense.
A stage, created for imagination and creativity.

With SHADOW LIGHTS you design places that radiate a comfortable and inviting atmosphere and therefore invite people to linger.

With SHADOW LIGHTS, all options are open to you. The lighting system offers an understated aesthetic during the day – and an absolutely impressive effect at night. SHADOW LIGHTS thus ensure harmonious basic illumination on the one hand and absolutely electrifying effects of shadow and light on the other. Entirely according to your wishes and ideas.

With light sources that are virtually hidden and do not cause stray light. Thereby, the SHADOW LIGHTS also more than meet the high requirements of the “Dark Sky” concept. In this way, the outdoor spaces are not only atmospheric but are also extremely attentively designed.

So let your imagination run wild and create surprising and impressive outdoor spaces with SHADOW LIGHTS.

SHADOW LIGHTS – made by Hess.

Technical details

Illuminating column made of aluminium tube, Ø 200 mm. Embedded base or flange plate for fastening. 2700 K / 3000 K / 4000 K protection rating I or II. BaseShield and SkyShield, to limit glare, available as accessories.

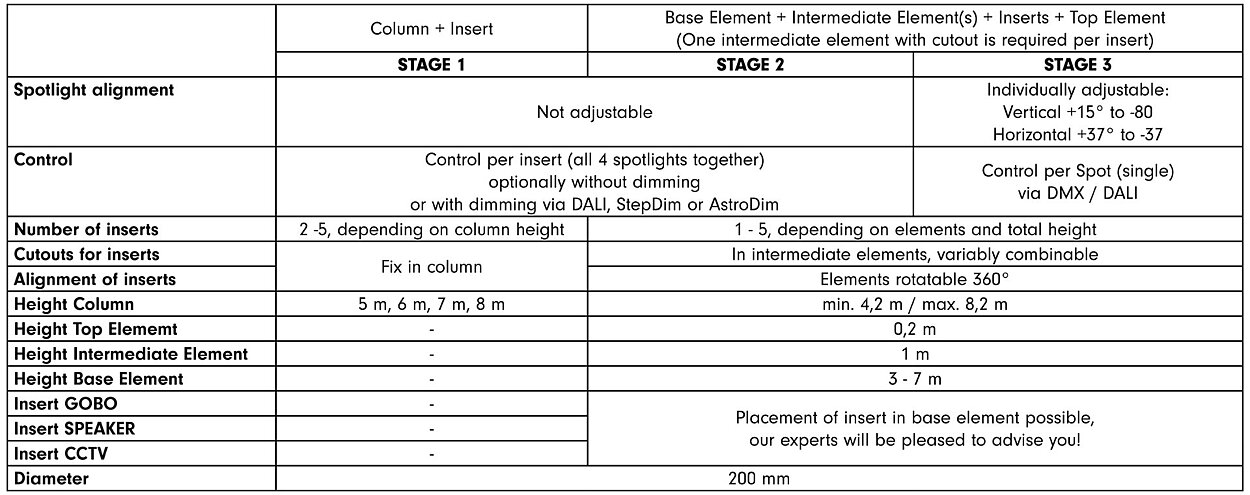

STAGE 1:
Fix preconfigured column in four different versions and four different heights. Control per insert, optionally without dimming or with dimming via DALI, StepDIM or AstroDIM. For lighting paths (height 5000 mm) with two inserts, roads (height 6000 mm) with three inserts, boulevards (height 7000 mm) with four inserts, squares (height 8000 mm) with five inserts.

STAGE 2:
Freely configurable column with five available inserts: ACCENT, AREA, AMBIENT, KEY and UNIQUE. Insert installed in modules that can be rotated by 360°. The spotlights can be adjusted with accessories if required. Control per insert. In addition, inserts for CCTV, speaker and GOBO are available in the base element. Heights from 4200 mm to 8200 mm.

STAGE 3:
Freely configurable column with two available inserts: PREMIUM WASH and PREMIUM SPOT. Insert installed in modules that can be rotated by 360°. The spotlights are freely adjustable vertically and horizontally. Each spotlight can be controlled via DMX / DALI. In addition, inserts for CCTV, speaker and GOBO are available in the base element. Heights from 4200 mm to 8200 mm.

LED Lifetime
L80 B10 / 85.000h - TA <= 25°C
L70 B10 / 50.000h - TA >25 - <=50°C
Ingress protection
IP65

You will find further technical data if you have specified a variant.
