POLE ARINI G 9000
17.21110.9000V001 3FACH ER + 2RT FÜR DMX NAHTLOS
POLE ARINI G 9000

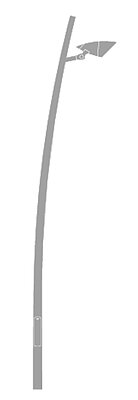

Pole ARINI G 9000
Steel pole, galvanised inside and outside
Conical design, curved
Height from ground level 9000 mm
Pole Ø at the bottom 196 mm
Embedded base with 2 openings for cable entry
With two inspection-doors and C-rail for fuse-box + additional junction
box for wiring of control leads
Prepared for three luminaires
1. Luminaire head on LPH 8300 mm
2. Luminaire head on LPH 7800 mm
3. Luminaire head on LPH 7300 mm
>>> Counterclockwise arrangement of luminaire heads optionally on one
side, two sided (180 ° offset), in a 360 ° arrangement or in individual arrangement
One-sided standard arrangement as follows:
1. - 3. Luminaire head 90 ° to the inspection door
or
Two-sided standard arrangement (180 ° offset) as follows:
1. Luminaire head 90 ° to the inspection door
2. Luminaire head 180 ° to the first luminaire head
3. Luminaire head 180 ° to the second luminaire head
or
360 ° standard arrangement as follows:
1. Luminaire head 90 ° to the inspection door
2. Luminaire head 120 ° to the first luminaire head
3. Luminaire head 120 ° to the second luminaire head
or
With individual arrangement as follows:
1. Luminaire head on LSH ???? mm (max 6300 mm) - ??? ° to the inspection door
2. Luminaire head on LSH ???? mm - ??? ° to the inspection door
3. Luminaire head on LSH ???? mm - ??? ° to the inspection door
>>> Please choose one of the above standard arrangements
or give us your individual arrangement in case of order
single, with height and degrees in our reference drawing 20.02.5393.
Minimum height distance from luminaire to luminaire 500 mm.
The height of the topmost luminaire head must not be offset upwards.
Colour: All RAL- (classic- single shades),
Hess-DB and Hess-Glimmer-colours.
RAL pearl-mica-metallic-shades on request.
Technical specifications
- Height [mm]
- 9000
