BASE ELEMENT 180 CR 03 - FROM 2200 MM

16.20301.0V001 ER 800 MM-BIS HÖHE 6000 MM


BASE ELEMENT 180 CR 03 - FROM 2200 MM

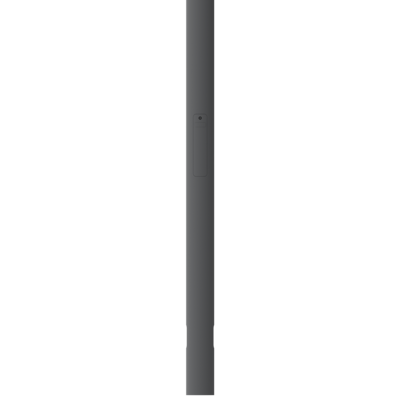

Base Element 180 CR03
- For a total column height up to 6000 mm
Constructed from aluminium tubing ø 180 mm
Module length: client-specific (minimum 2200 mm)
Mounts via attached embedded base
Length 800 mm with two openings for cable entry
With inspection-door and C-rail for fuse-box
Colour: DB 703 or all RAL- (classic- single shades),
Hess-DB and Hess-Glimmer-colours.
RAL pearl-mica-metallic-shades on request.


Technical specifications

Variant
CR - Without supply
Embedded base length [mm]
800

Drawing


Downloads

Planning

Graphic with dimensions
