BASE ELEMENT 200-2 CRV 04 - 3500 MM

16.02100.2V003 FQ 400/25 MM-GH BIS 6000 MM E-MOBILITY


BASE ELEMENT 200-2 CRV 04 - 3500 MM

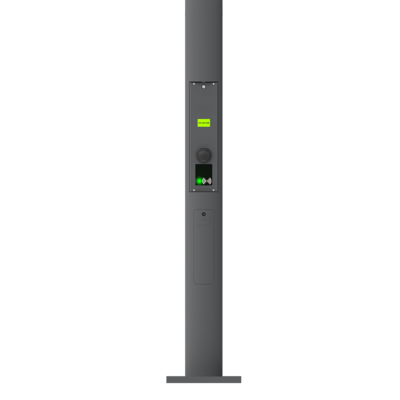

Base Element 200-2 CRV 04 E-MOBILITY
For column light City Elements 200-2
For a total column height from max. 6000 mm
Constructed from aluminium tubing ø 200 mm
Module length: 3500 mm
With flange plate 400 x 400 x 25 mm
E-Mobility charging unit above
Above with charging socket Type 2 (3-phase, 400VAC, 32A)
Automatic interlock
Rated power up to 22 kW
Integrated meter EHZ - EDL 21/40, Meter display
Status indicator: LED (green, yellow, blue),
Authorisation/activation: RFID Mifare Classic, via SMS or mobile app
(iPhone, Android)
Communication via GSM module
Connection to charging infrastructure
OCPP 1.5 / 1.6 = international standard
Billing via electricity roaming provider such as Hubject
Back-end to be provided on site
Bottom inspection-door with C-rail for fuse-box
Door comes with cable outlet and safety lock
Colour: DB 703 or all RAL- (classic- single shades),
Hess-DB and Hess-Glimmer-colours.
RAL pearl-mica-metallic-shades on request.


Technical specifications

Variant
CRVE - E-Mobility
Height [mm]
3500

Downloads

General

Installation instructions
Further information

Accessories

Mounting
16.02000.2V001
ERDSTÜCK 200 CR/CRV 02
ER 800 MM/FQ/3500-6000 MM
Square flange plate
16.02000.2V002
ERDSTÜCK 200 CR/CRV 02
ER 1200 MM/FQ/6000-9000 MM
Square flange plate
