V8482
14.88482.2V001 HÄNG VPS PMMA
V8482

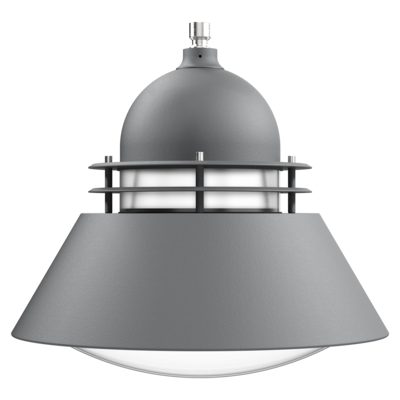

Decorative luminaire with shade V8482 (formerly V3781)
Housing made of dimensionally stable and corrosion-resistant aluminium
Mounting via VPS (Vulkan patent system)
Selection for glass:
- Glass made of impact-resistant PMMA, clear smooth
- Glass made of impact-resistant PMMA, pearled
Selection of optics:
- Light distribution: ASY11 asymmetrical, optimized for illuminance
(Characteristic: for main road illumination)
- Light distribution: ASY12 asymmetrical, optimized for illuminance
(Characteristic: for main road illumination)
- Light distribution: ASY13 asymmetrical wide
(Characteristic: for main and residential road illumination)
- Light distribution: ASY30 asymmetrical, optimized for luminance
(Characteristic: for main road illumination)
- Light distribution: M8 rotationally symmetric
(Characteristic: for place illumination)
- Light distribution: M9 axially symmetrical
(Characteristic: for main road or pedestrian zone illumination)
Selection of fittings:
- With LED fitting 32 LED 200-700mA, power 20-66W
- With LED fitting 48 LED 200-700mA, power 29-98W
Selection of light colours:
- Light colour: 2200K
- Light colour: 2700K
- Light colour: 3000K
- Light colour: 4000K
- Light colour: 1700K generated by amber optics
- Light colour: 1900K generated by amber optics
- Light colour: 2000K generated by amber optics
With electronic ballast (220-240V/50-60Hz)
Selection of possible dimming/control:
- With dimming via Dali
- With dimming via StepDim (control phase)
- With dimming via AstroDim
- With Zhaga Socket bottom, open source (D4i)
- With Zhaga Socket bottom, City Touch (D4i)
Selection with or without constant luminous flux:
- with CLO (constant luminous flux)
(corresponds to output mA and W -10%)
- without CLO (constant luminous flux)
Optionally available with:
- 10KV module
- LS3 Dip switch (only possible with 350/500/620mA)
- RWE special wire assignment:
black:L; blue:N; green-yellow:PE; brown:Lst; grey:reserve
Cable selection (specify in 1000 mm steps):
- Without pre-wiring
- Cable: 5G x 1.5 mm² - Length: 3000 mm – 15000 mm
Ingress protection IP65
Selection of protection class:
- Protection class I
- Protection class II
Selection of colour:
- Colour: (please specify)
Optionally available with special coating:
- Sea-air resistant coating for medium requirements (C5)
- Sea-air resistant coating for high, extreme requirements (CX)
(this requires precise testing in advance)
Technical specifications
- Ingress protection
- IP65
- Safety class
- I , II
- IK-Value
- IK06
- Width [mm]
- 655
- Rated input power
- 20 W , 25 W , 29 W , 34 W , 39 W , 43 W , 48 W , 52 W , 57 W , 61 W , 36 W , 50 W , 77 W , 98 W , 61 W , 66 W , 64 W , 70 W , 84 W , 91 W
- LED Lifetime
- L90 B10 / 100.000h - TA <=25° C
- Height [mm]
- 489

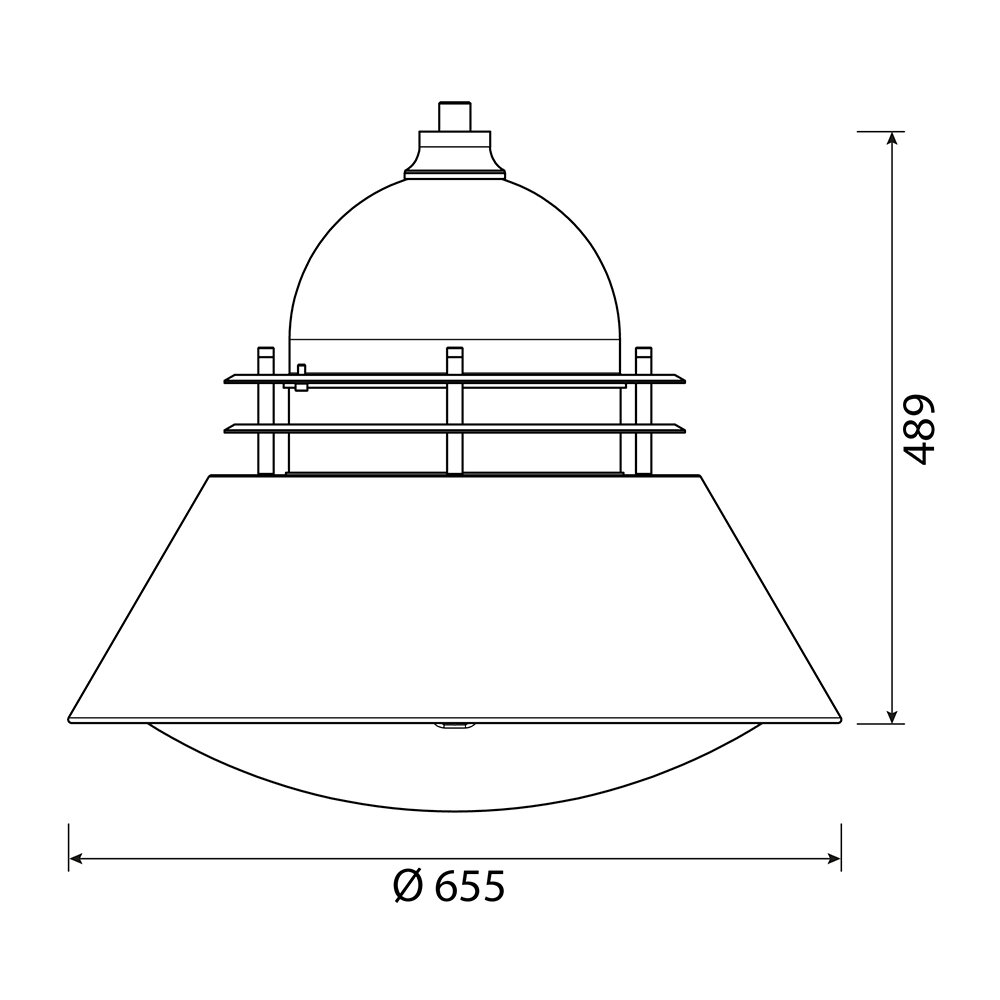

Drawing
