V8448
14.88448.2V001 HÄNG VPS PMMA
V8448

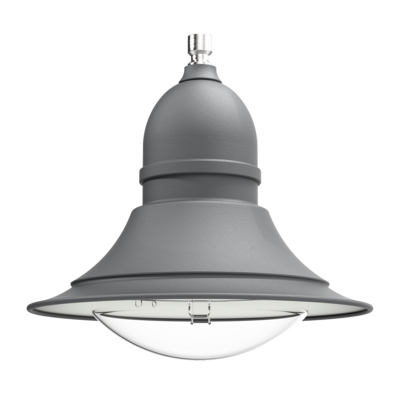

Decorative luminaire with shade V8448
Housing made of dimensionally stable and corrosion-resistant aluminium
Mounting via VPS (Vulkan patent system)
Selection for glass:
- Glass made of impact-resistant PMMA, clear smooth
- Glass made of impact-resistant PMMA, pearled
Selection of optics:
- Light distribution: ASY11 asymmetrical, optimised for illuminance
(Characteristic: for main road illumination)
- Light distribution: ASY12 asymmetrical, optimised for illuminance
(Characteristic: for main road illumination)
- Light distribution: ASY13 asymmetrical wide
(Characteristic: for main and residential road illumination)
- Light distribution: ASY30 asymmetrical, optimised for luminance
(Characteristic: for main road illumination)
- Light distribution: M8 rotationally symmetric
(Characteristic: for place illumination)
- Light distribution: M9 axially symmetrical
(Characteristic: for main road or pedestrian zone illumination)
- With LED fitting 16 LED 200-700mA, power 11-34W
Selection of light colours:
- Light colour: 2200K
- Light colour: 2700K
- Light colour: 3000K
- Light colour: 4000K
- Light colour: 1700K generated by amber optics
- Light colour: 1900K generated by amber optics
- Light colour: 2000K generated by amber optics
With electronic ballast (220-240V/50-60Hz)
Selection of possible dimming/control:
- With dimming via Dali
- With dimming via StepDim (control phase)
- With dimming via AstroDim
- With Zhaga Socket bottom, open source (D4i)
Selection with or without constant luminous flux:
- with CLO (constant luminous flux)
(corresponds to output mA and W -10%)
- without CLO (constant luminous flux)
Optionally available with:
- 10KV module
- LS3 Dip switch (only possible with 350/500/620mA)
- RWE special wire assignment:
black:L; blue:N; green-yellow:PE; brown:Lst; grey:reserve
Cable selection (specify in 1000 mm steps):
- Without pre-wiring
- Cable: 5G x 1.5 mm² - Length: 3000 mm – 15000 mm
Ingress protection IP65
Selection of protection class:
- Protection class I
- Protection class II
Selection of colour:
Colour: (please specify)
Optionally available with special coating:
- Sea-air resistant coating for medium requirements (C5)
- Sea-air resistant coating for high, extreme requirements (CX)
(this requires precise testing in advance)
Technical specifications
- Ingress protection
- IP65
- Safety class
- I , II
- IK-Value
- IK06
- Width [mm]
- 500
- Rated input power
- 11 W , 13 W , 16 W , 18 W , 20 W , 23 W , 25 W , 27 W , 29 W , 32 W , 34 W
- LED Lifetime
- L90 B10 / 100.000h - TA <=25° C
- Height [mm]
- 430

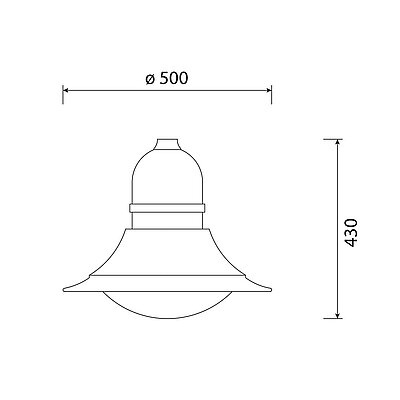

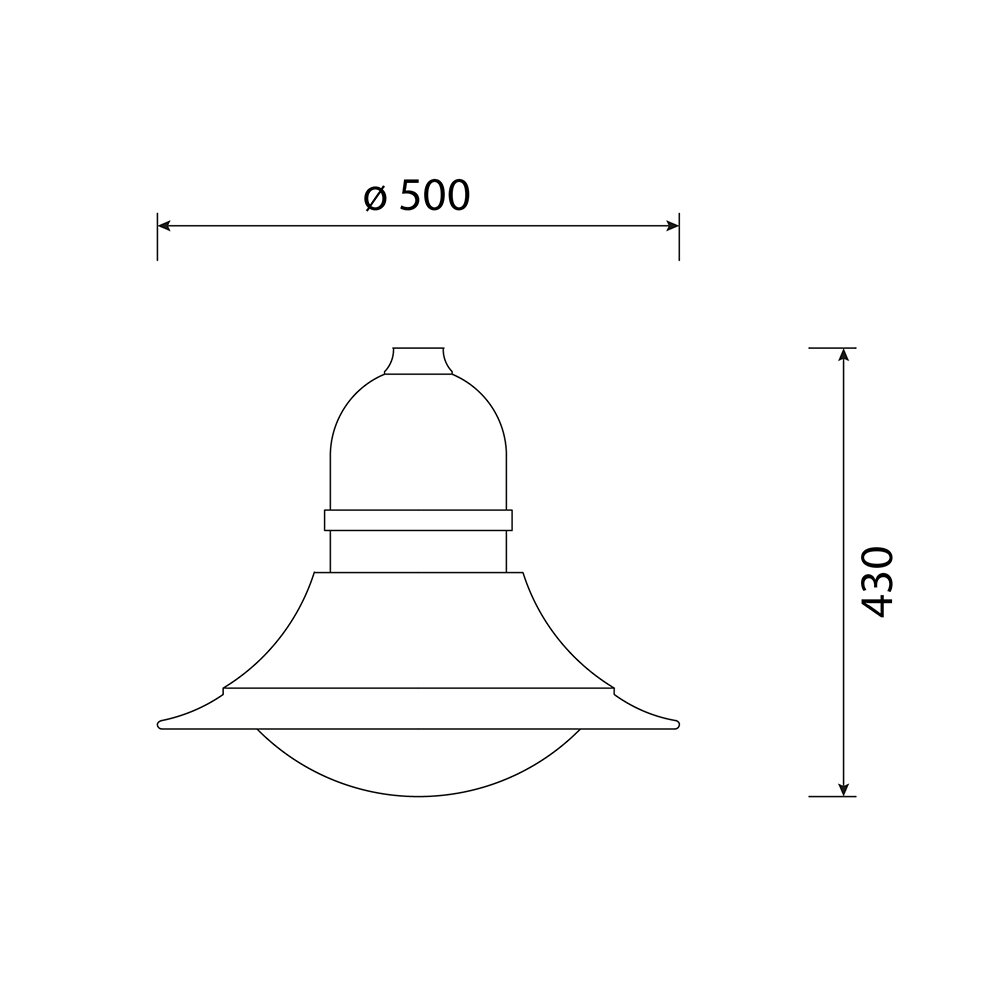

Drawing
