V3630
14.83630.2V002 SIDE Z42-60 ESG
V3630

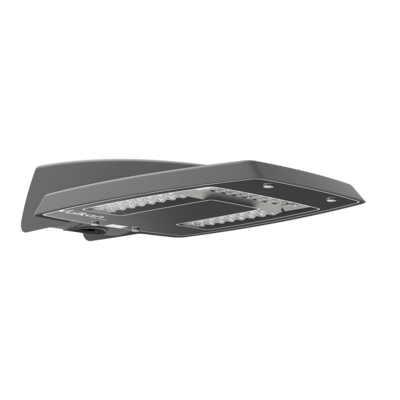

Technical street luminaire V3630
Luminaire housing made of die-cast aluminium
Cover made of single-pane safety glass (ESG), clear
Can be opened without tools
Angle of inclination of the luminaire can be adjusted on site
0°/5°/10°/15°
Side mounting spigot ø 42-60 mm
Selection of optics:
- Light distribution: ASY10 asymmetrical
(developed for the standard-compliant illumination of roads, paths
and squares in accordance with DIN-EN 13201)
- Light distribution: ASY11 asymmetrical, optimized for illuminance
(Characteristic: for main road illumination)
- Light distribution: ASY12 asymmetrical, optimized for illuminance
(Characteristic: for main road illumination)
- Light distribution: ASY13 asymmetrical wide
(Characteristic: for main and residential road illumination)
- Light distribution: ASY14 asymmetric narrow distribution
(Characteristic: for the illumination of storage areas)
- Light distribution: ASY17 asymmetrical, ultra wide distribution
(Characteristic: for large-area emergency lighting)
- Light distribution: ASY26 asymmetrical, optimized for luminance
(Characteristic: for main road illumination)
- Light distribution: ASY27 asymmetrical, optimized for illuminance
(Characteristic: for main road illumination)
- Light distribution: ASY28 asymmetrical, optimized for uniformity
(Characteristic: for lighting main roads and residential streets)
- Light distribution: ASY30 asymmetrical, optimized for luminance
(Characteristic: for main road illumination)
- Light distribution: ASY32 asymmetric extra narrow distribution
(Characteristic: for e.g. parking space illumination)
- Light distribution: ASY33 asymmetrical, optimized for illuminance
(Characteristic: for illumination of main roads and residential streets)
- Light distribution: ASY34 asymmetrical, optimized for illuminance
(Characteristic: for main road illumination)
- Light distribution: ASY35 asymmetrical, extra wide distribution
(Characteristic: for illumination of main roads and residential streets)
- Light distribution: PC02L asymmetric left-beam distribution
(Characteristic: for illumination of pedestrian crossings, with
left-hand traffic) (C14896)
- Light distribution: PC02R asymmetrical right-oriented
(Characteristic: for pedestrian crossing illumination)
Selection of fittings:
- With LED fitting 16 LED 200-700mA, power 11-34W
- With LED fitting 32 LED 200-700mA, power 20-66W
- With LED fitting 48 LED 200-700mA, power 29-98W
- With LED fitting 64 LED 200-700mA, power 39-130W
Selection of light colours:
- Light colour: 2200K
- Light colour: 2700K
- Light colour: 3000K
- Light colour: 4000K
- Light colour: 1700K generated by amber optics
- Light colour: 1900K generated by amber optics
- Light colour: 2000K generated by amber optics
With electronic ballast (220-240V/50-60Hz)
Selection of possible dimming/control:
- With dimming via Dali
- With dimming via StepDim (control phase)
- With dimming via AstroDim
- With Zhaga socket Book 18 on top, open source (D4i)
- With Zhaga socket Book 18 at the bottom, open source (D4i)
- With Zhaga socket Book 18 top and bottom, open source (D4i)
- With Zhaga socket Book 18 on top, City Touch (D4i)
- With Zhaga socket Book 18 at the bottom, City Touch (D4i)
- With Zhaga socket Book 18 top and bottom, City Touch (D4i)
Selection with or without constant luminous flux:
- with CLO (constant luminous flux)
(corresponds to output mA and W -10%)
- without CLO (constant luminous flux)
Optionally available with:
- 10KV module
- LS3 Dip switch (only possible with 350/500/620mA)
Cable selection (specify in 1000 mm steps):
- Without pre-wiring
- Cable: 5G x 1.5 mm² - Length: 3000 mm # 15000 mm
Ingress protection IP66
Selection of protection class:
- Protection class I
- Protection class II
Selection of colour:
- Colour standard: DB 703 (similar to Gris 2900 sablé)
- Colour standard: RAL 7035
- Colour: (please specify a different colour)
Optionally available with special coating:
- Sea-air resistant coating for medium requirements (C5)
- Sea-air resistant coating for high, extreme requirements (CX)
(this requires precise testing in advance)
Technical specifications
- Ingress protection
- IP66
- Safety class
- I , II
- IK-Value
- IK08
- Width [mm]
- 380
- Spigot ø in [mm]
- 42-60
- LED Lifetime
- L90 B10 / 100.000h - TA <=25° C
- Rated input power
- 11 - 34 W , 20 - 66 W , 29 - 98 W , 39 - 130 W
- Height [mm]
- 130
- Length [mm]
- 690

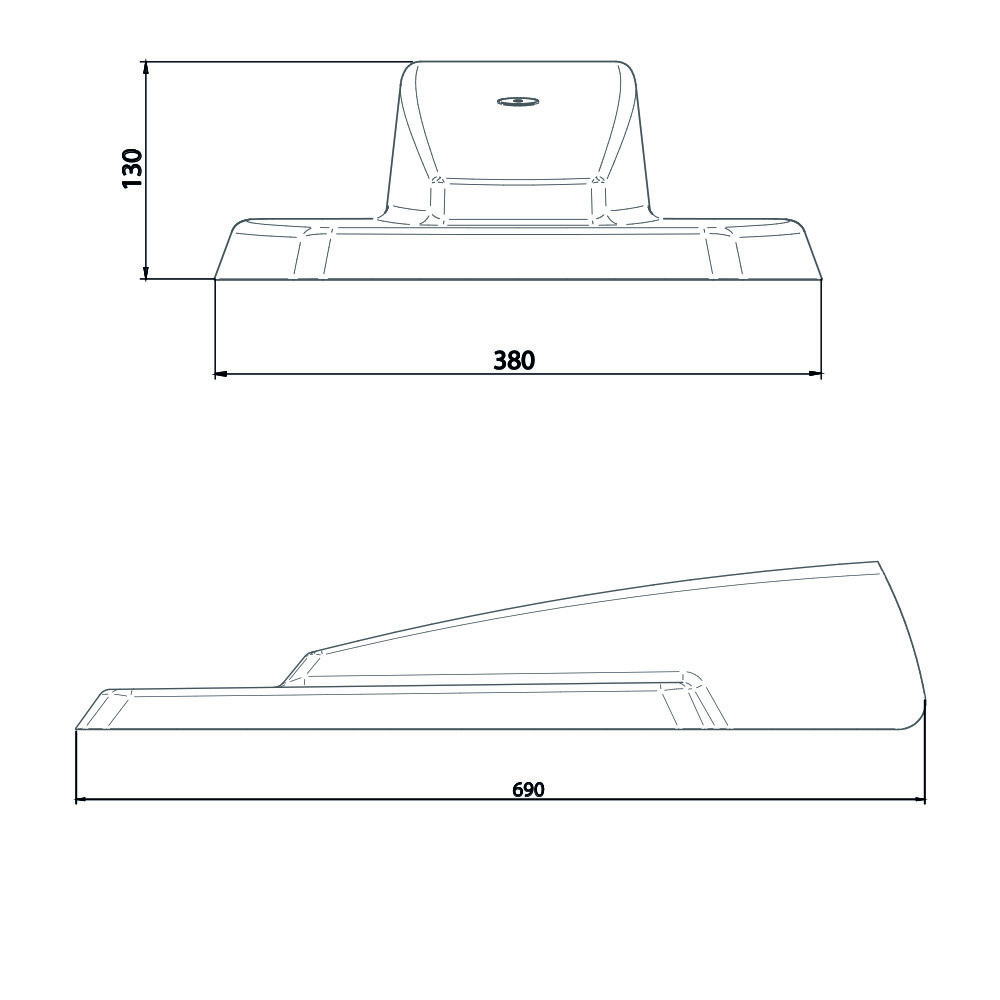

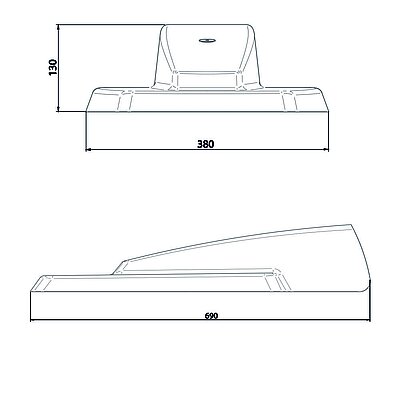

Drawing
