Technical street luminaire V3606
Luminaire housing made of die-cast aluminium
Luminaire cover made of UV-hardened polycarbonate (IK10), clear
Inclination angle of the luminaire can be adjusted on site:
Side mounting 0°/-5°/-10°/-15°
Top mounting 0°/5°/10°/15°
Spigot ø 42-48 mm (pole attachment piece enclosed)
Selection of optics:
- Light distribution: ASY10 asymmetrical
(developed for the standard-compliant illumination of roads, paths
and squares in accordance with DIN-EN 13201)
- Light distribution: ASY11 asymmetrical, optimized for illuminance
(Characteristic: for main road illumination)
- Light distribution: ASY12 asymmetrical, optimized for illuminance
(Characteristic: for main road illumination)
- Light distribution: ASY13 asymmetrical wide
(Characteristic: for main and residential road illumination)
- Light distribution: ASY14 asymmetric narrow distribution
(Characteristic: for the illumination of storage areas)
- Light distribution: ASY17 asymmetrical, ultra wide distribution
(Characteristic: for large-area emergency lighting)
- Light distribution: ASY26 asymmetrical, optimized for luminance
(Characteristic: for main road illumination)
- Light distribution: ASY27 asymmetrical, optimized for illuminance
(Characteristic: for main road illumination)
- Light distribution: ASY28 asymmetrical, optimized for uniformity
(Characteristic: for lighting main roads and residential streets)
- Light distribution: ASY30 asymmetrical, optimized for luminance
(Characteristic: for main road illumination)
- Light distribution: ASY32 asymmetric extra narrow distribution
(Characteristic: for e.g. parking space illumination)
- Light distribution: ASY33 asymmetrical, optimized for illuminance
(Characteristic: for illumination of main roads and residential streets)
- Light distribution: ASY34 asymmetrical, optimized for illuminance
(Characteristic: for main road illumination)
- Light distribution: ASY35 asymmetrical, extra wide distribution
(Characteristic: for illumination of main roads and residential streets)
- Light distribution: M2 asymmetrical, narrow and wide distribution
with high light component on the back
(Characteristic: for the illumination of spacious main road situations)
- Light distribution: PC02L asymmetric left-beam distribution
(Characteristic: for illumination of pedestrian crossings, with
left-hand traffic) (C14896)
- Light distribution: PC02R asymmetrical right-oriented
(Characteristic: for pedestrian crossing illumination)
Selection of fittings:
- With LED fitting 24 LED 200-700mA, power 16-50W
- With LED fitting 36 LED 200-700mA, power 23-74W
Selection of light colours:
- Light colour 2200K
- Light colour 2700K
- Light colour 3000K
- Light colour 4000K
- Light colour 1700K generated by amber optics
- Light colour 1900K generated by amber optics
- Light colour 2000K generated by amber optics
With electronic ballast (220-240V/50-60Hz)
Selection of possible dimming/control:
- With dimming via Dali
- With dimming via StepDim (control phase)
- With dimming via AstroDim
- With Zhaga socket Book 18 on top, open source (D4i)
- With Zhaga socket Book 18 at the bottom, open source (D4i)
- With Zhaga socket Book 18 top and bottom, open source (D4i)
- With Zhaga socket Book 18 on top, City Touch (D4i)
- With Zhaga socket Book 18 at the bottom, City Touch (D4i)
- With Zhaga socket Book 18 top and bottom, City Touch (D4i)
Selection with or without constant luminous flux:
- with CLO (constant luminous flux)
(corresponds to output mA and W -10%)
- without CLO (constant luminous flux)
Cable selection (specify in 1000 mm steps):
- Without pre-wiring
- Cable: NYM-O 4 x 1,5 mm² - Length: 3000 mm # 15000 mm
Ingress protection IP66
Protection class II
Colour standard: DB 703 (similar to Gris 2900 sablé)
Technical specifications
- Ingress protection
- IP66
- Safety class
- I , II
- IK-Value
- IK08
- Spigot ø in [mm]
- 42-48
- Width [mm]
- 163
- Rated input power
- 16 W , 19 W , 23 W , 26 W , 29 W , 33 W , 36 W , 40 W , 43 W , 50 W , 47 W
- LED Lifetime
- L90 B10 / 100.000h - TA <=25° C
- Height [mm]
- 112
- Length [mm]
- 1004

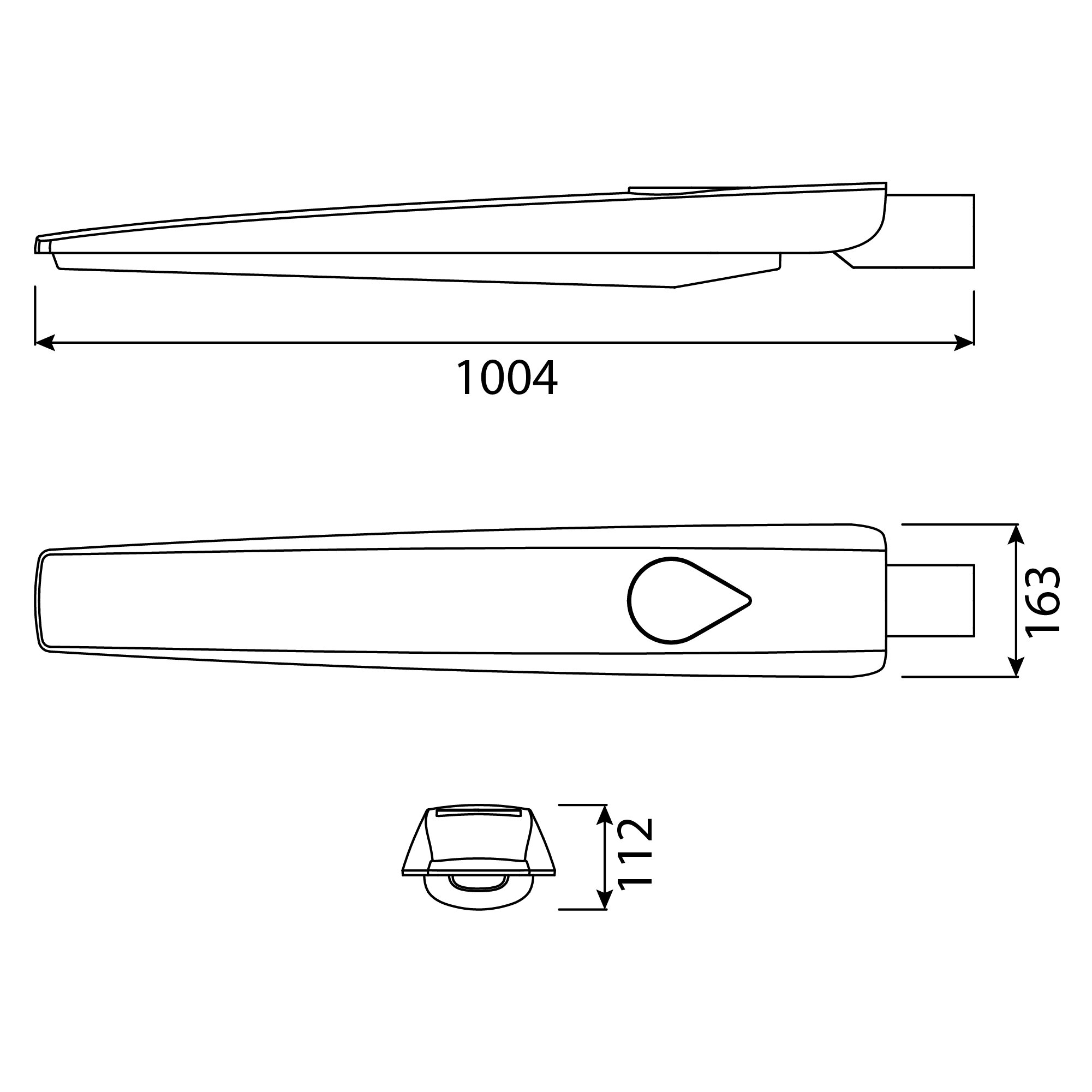

Drawing
