V3457
14.83457.2V001 TOP Z76 PMMA
V3457

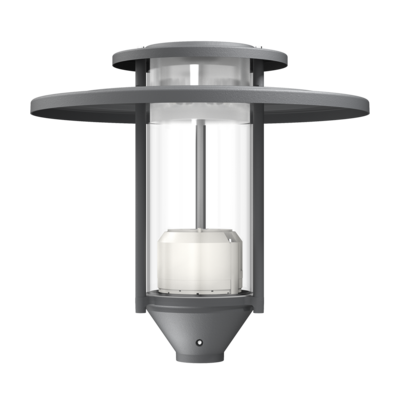

Decorative cylinder luminaire V3457
For top mounting on pole or bracket
Base made of cast aluminium, rods made of aluminium,
Luminaire roof ø 635 mm made of aluminium (unicolour lacquered),
Glass made of polymethyl methacrylate, clear smooth (PMMA)
Standard spigot ø 76 mm
(An additional adapter to reduce the spigot ø 76 mm
to spigot ø 60 mm can be ordered separately if required 14.80000.0V195)
Selection of optics:
- Light distribution: ASY11 asymmetrical, optimized for illuminance
(Characteristic: for main road illumination)
- Light distribution: ASY13 asymmetrical wide
(Characteristic: for main and residential road illumination)
- Light distribution: M8 rotationally symmetric
(Characteristic: for place illumination)
- Light distribution: M9 axially symmetrical
(Characteristic: for main road or pedestrian zone illumination)
- With LED fitting 16 LED 200-700mA, power 11-34W
Selection of light colours:
- Light colour: 2200K
- Light colour: 2700K
- Light colour: 3000K
- Light colour: 4000K
- Light colour: 1700K generated by amber optics
- Light colour: 1900K generated by amber optics
- Light colour: 2000K generated by amber optics
With electronic ballast (220-240V/50-60Hz)
Selection of possible dimming/control:
- Without dimming (For luminaires with E-block and protection class I)
- With dimming via Dali (with SKII)
- With dimming via StepDim (control phase)
- With dimming via AstroDim
- With Zhaga Socket top, open source (D4i)
- With Zhaga Socket top, City Touch (D4i)
Selection with or without constant luminous flux:
- with CLO (constant luminous flux)
(corresponds to output mA and W -10%)
- without CLO (constant luminous flux)
Optionally available with:
- 10KV module
- RWE special wire assignment:
black:L; blue:N; green-yellow:PE; brown:Lst; grey:reserve
Cable selection (specify in 1000 mm steps):
- Without pre-wiring
- Cable: 5G x 1.5 mm² - Length: 3000 mm – 15000 mm
Ingress protection IP65
Selection of protection class:
- Protection class I
- Protection class II
Selection of colour:
- Colour: (please specify)
Optionally available with special coating:
- Sea-air resistant coating for medium requirements (C5)
- Sea-air resistant coating for high, extreme requirements (CX)
(this requires precise testing in advance)
Technical specifications
- Ingress protection
- IP65
- Safety class
- I , II
- IK-Value
- IK10
- Spigot ø in [mm]
- 76,1
- Width [mm]
- 635
- Rated input power
- 11 W , 13 W , 16 W , 18 W , 20 W , 23 W , 25 W , 27 W , 29 W , 32 W , 34 W
- LED Lifetime
- L90 B10 / 100.000h - TA <=25° C
- Height [mm]
- 585

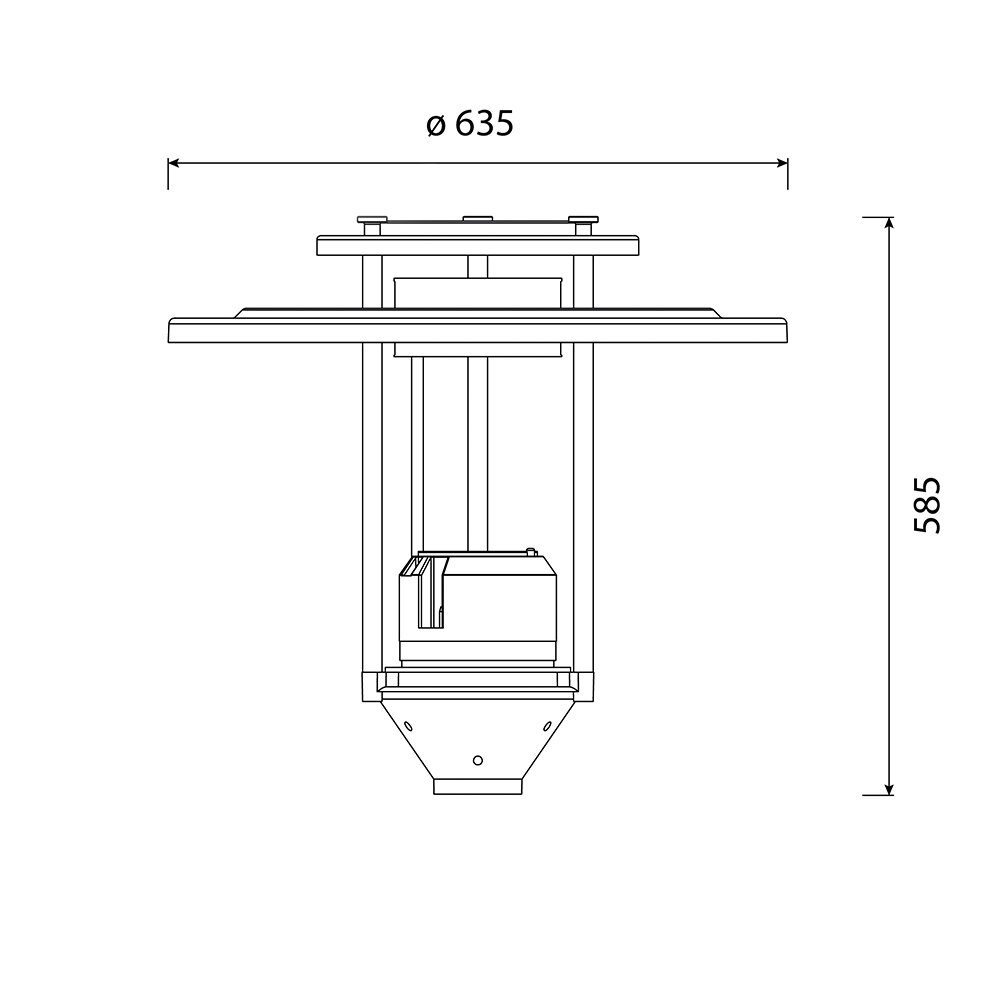

Drawing
