V3456
14.83456.2V001 TOP Z76 PMMA
V3456

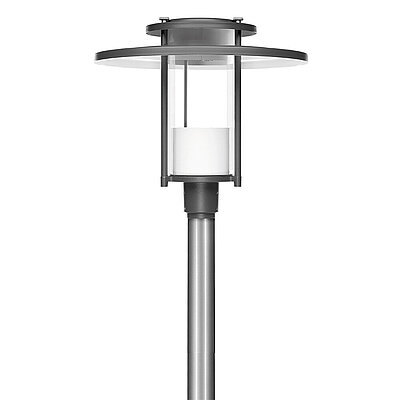

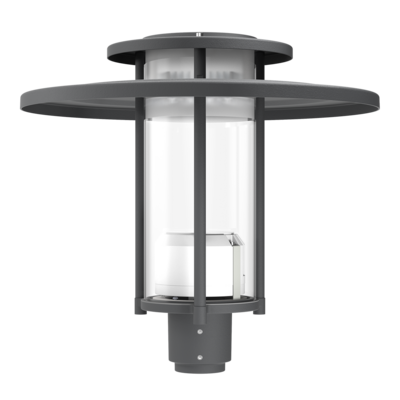

Decorative cylinder luminaire V3456
Decorative cylinder luminaire V3456
Decorative cylinder luminaire V3456
Decorative cylinder luminaire V3456
For top mounting on pole or bracket
For top mounting on pole or bracket
For top mounting on pole or bracket
For top mounting on pole or bracket
Luminaire housing made of cast aluminium
Luminaire housing made of cast aluminium
Luminaire housing made of cast aluminium
Luminaire housing made of cast aluminium
Luminaire shade ø 635 mm and cover made of aluminium,
Luminaire shade ø 635 mm and cover made of aluminium,
Luminaire shade ø 635 mm and cover made of aluminium,
Luminaire shade ø 635 mm and cover made of aluminium,
single-colour lacquered, rods single-colour lacquered
single-colour lacquered, rods single-colour lacquered
single-colour lacquered, rods single-colour lacquered
single-colour lacquered, rods single-colour lacquered
Glass made of polymethyl methacrylate, clear smooth (PMMA)
Glass made of polymethyl methacrylate, clear smooth (PMMA)
Glass made of polymethyl methacrylate, clear smooth (PMMA)
Glass made of polymethyl methacrylate, clear smooth (PMMA)
Standard spigot ø 76 mm
Standard spigot ø 76 mm
Standard spigot ø 76 mm
Standard spigot ø 76 mm
(An additional adapter to reduce the spigot ø 76 mm
(An additional adapter to reduce the spigot ø 76 mm
(An additional adapter to reduce the spigot ø 76 mm
(An additional adapter to reduce the spigot ø 76 mm
to spigot ø 60 mm can be ordered separately if required)
to spigot ø 60 mm can be ordered separately if required)
to spigot ø 60 mm can be ordered separately if required)
to spigot ø 60 mm can be ordered separately if required)
Selection of optics:
Selection of optics:
Selection of optics:
Selection of optics:
- Light distribution: ASY11 asymmetrical, optimised for illuminance
- Light distribution: ASY11 asymmetrical, optimised for illuminance
- Light distribution: ASY11 asymmetrical, optimised for illuminance
- Light distribution: ASY11 asymmetrical, optimised for illuminance
(Characteristic: for main road illumination)
(Characteristic: for main road illumination)
(Characteristic: for main road illumination)
(Characteristic: for main road illumination)
- Light distribution: ASY13 asymmetrical wide
- Light distribution: ASY13 asymmetrical wide
- Light distribution: ASY13 asymmetrical wide
- Light distribution: ASY13 asymmetrical wide
(Characteristic: for main and residential road illumination)
(Characteristic: for main and residential road illumination)
(Characteristic: for main and residential road illumination)
(Characteristic: for main and residential road illumination)
- Light distribution: M8 rotationally symmetric
- Light distribution: M8 rotationally symmetric
- Light distribution: M8 rotationally symmetric
- Light distribution: M8 rotationally symmetric
(Characteristic: for place illumination)
(Characteristic: for place illumination)
(Characteristic: for place illumination)
(Characteristic: for place illumination)
- Light distribution: M9 axially symmetrical
- Light distribution: M9 axially symmetrical
- Light distribution: M9 axially symmetrical
- Light distribution: M9 axially symmetrical
(Characteristic: for main road or pedestrian zone illumination)
(Characteristic: for main road or pedestrian zone illumination)
(Characteristic: for main road or pedestrian zone illumination)
(Characteristic: for main road or pedestrian zone illumination)
With LED fitting 16 LED 200-700mA, power 11-34W
With LED fitting 16 LED 200-700mA, power 11-34W
With LED fitting 16 LED 200-700mA, power 11-34W
With LED fitting 16 LED 200-700mA, power 11-34W
Selection of light colours:
Selection of light colours:
Selection of light colours:
Selection of light colours:
- Light colour: 2200K
- Light colour: 2200K
- Light colour: 2200K
- Light colour: 2200K
- Light colour: 2700K
- Light colour: 2700K
- Light colour: 2700K
- Light colour: 2700K
- Light colour: 3000K
- Light colour: 3000K
- Light colour: 3000K
- Light colour: 3000K
- Light colour: 4000K
- Light colour: 4000K
- Light colour: 4000K
- Light colour: 4000K
- Light colour: 1700K generated by amber optics
- Light colour: 1700K generated by amber optics
- Light colour: 1700K generated by amber optics
- Light colour: 1700K generated by amber optics
- Light colour: 1900K generated by amber optics
- Light colour: 1900K generated by amber optics
- Light colour: 1900K generated by amber optics
- Light colour: 1900K generated by amber optics
- Light colour: 2000K generated by amber optics
- Light colour: 2000K generated by amber optics
- Light colour: 2000K generated by amber optics
- Light colour: 2000K generated by amber optics
With electronic ballast (220-240V/50-60Hz)
With electronic ballast (220-240V/50-60Hz)
With electronic ballast (220-240V/50-60Hz)
With electronic ballast (220-240V/50-60Hz)
Selection of possible dimming/control:
Selection of possible dimming/control:
Selection of possible dimming/control:
Selection of possible dimming/control:
- Without dimming (For luminaires with E-block and protection class I)
- Without dimming (For luminaires with E-block and protection class I)
- Without dimming (For luminaires with E-block and protection class I)
- Without dimming (For luminaires with E-block and protection class I)
- With dimming via Dali (with SKII)
- With dimming via Dali (with SKII)
- With dimming via Dali (with SKII)
- With dimming via Dali (with SKII)
- With dimming via StepDim (control phase)
- With dimming via StepDim (control phase)
- With dimming via StepDim (control phase)
- With dimming via StepDim (control phase)
- With dimming via AstroDim
- With dimming via AstroDim
- With dimming via AstroDim
- With dimming via AstroDim
- With Zhaga Socket top, open source (D4i)
- With Zhaga Socket top, open source (D4i)
- With Zhaga Socket top, open source (D4i)
- With Zhaga Socket top, open source (D4i)
- With Zhaga Socket top, City Touch (D4i)
- With Zhaga Socket top, City Touch (D4i)
- With Zhaga Socket top, City Touch (D4i)
- With Zhaga Socket top, City Touch (D4i)
Selection with or without constant luminous flux:
Selection with or without constant luminous flux:
Selection with or without constant luminous flux:
Selection with or without constant luminous flux:
- with CLO (constant luminous flux)
- with CLO (constant luminous flux)
- with CLO (constant luminous flux)
- with CLO (constant luminous flux)
(corresponds to output mA and W -10%)
(corresponds to output mA and W -10%)
(corresponds to output mA and W -10%)
(corresponds to output mA and W -10%)
- without CLO (constant luminous flux)
- without CLO (constant luminous flux)
- without CLO (constant luminous flux)
- without CLO (constant luminous flux)
Optionally available with:
Optionally available with:
Optionally available with:
Optionally available with:
- 10KV module
- 10KV module
- 10KV module
- 10KV module
- RWE special wire assignment:
- RWE special wire assignment:
- RWE special wire assignment:
- RWE special wire assignment:
black:L; blue:N; green-yellow:PE; brown:Lst; grey:reserve
black:L; blue:N; green-yellow:PE; brown:Lst; grey:reserve
black:L; blue:N; green-yellow:PE; brown:Lst; grey:reserve
black:L; blue:N; green-yellow:PE; brown:Lst; grey:reserve
Cable selection (specify in 1000 mm steps):
Cable selection (specify in 1000 mm steps):
Cable selection (specify in 1000 mm steps):
Cable selection (specify in 1000 mm steps):
- Without pre-wiring
- Without pre-wiring
- Without pre-wiring
- Without pre-wiring
- Cable: 5G x 1.5 mm² - Length: 3000 mm - 15000 mm
- Cable: 5G x 1.5 mm² - Length: 3000 mm - 15000 mm
- Cable: 5G x 1.5 mm² - Length: 3000 mm - 15000 mm
- Cable: 5G x 1.5 mm² - Length: 3000 mm - 15000 mm
Ingress protection IP65
Ingress protection IP65
Ingress protection IP65
Ingress protection IP65
Selection of protection class:
Selection of protection class:
Selection of protection class:
Selection of protection class:
- Protection class I
- Protection class I
- Protection class I
- Protection class I
- Protection class II
- Protection class II
- Protection class II
- Protection class II
Selection of colour:
Selection of colour:
Selection of colour:
Selection of colour:
- Colour standard: DB 703
- Colour standard: DB 703
- Colour standard: DB 703
- Colour standard: DB 703
- Colour: (please specify a different colour)
- Colour: (please specify a different colour)
- Colour: (please specify a different colour)
- Colour: (please specify a different colour)
Optionally available with special coating:
Optionally available with special coating:
Optionally available with special coating:
Optionally available with special coating:
- Sea-air resistant coating for medium requirements (C5)
- Sea-air resistant coating for medium requirements (C5)
- Sea-air resistant coating for medium requirements (C5)
- Sea-air resistant coating for medium requirements (C5)
- Sea-air resistant coating for high, extreme requirements (CX)
- Sea-air resistant coating for high, extreme requirements (CX)
- Sea-air resistant coating for high, extreme requirements (CX)
- Sea-air resistant coating for high, extreme requirements (CX)
(this requires precise testing in advance)
(this requires precise testing in advance)
(this requires precise testing in advance)
(this requires precise testing in advance)
Technical specifications
- Ingress protection
- IP65
- Safety class
- I , II
- IK-Value
- IK10
- Spigot ø in [mm]
- 76
- Width [mm]
- 635
- Rated input power
- 11 W , 13 W , 16 W , 18 W , 20 W , 23 W , 25 W , 27 W , 29 W , 32 W , 34 W
- LED Lifetime
- L90 B10 / 100.000h - TA <=25° C
- Height [mm]
- 585

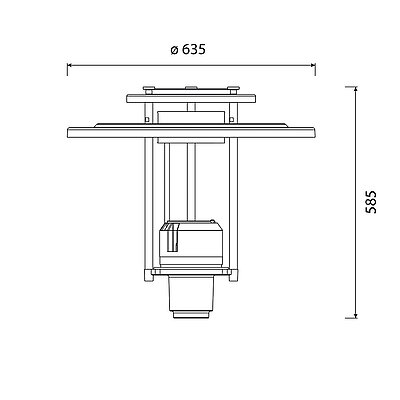

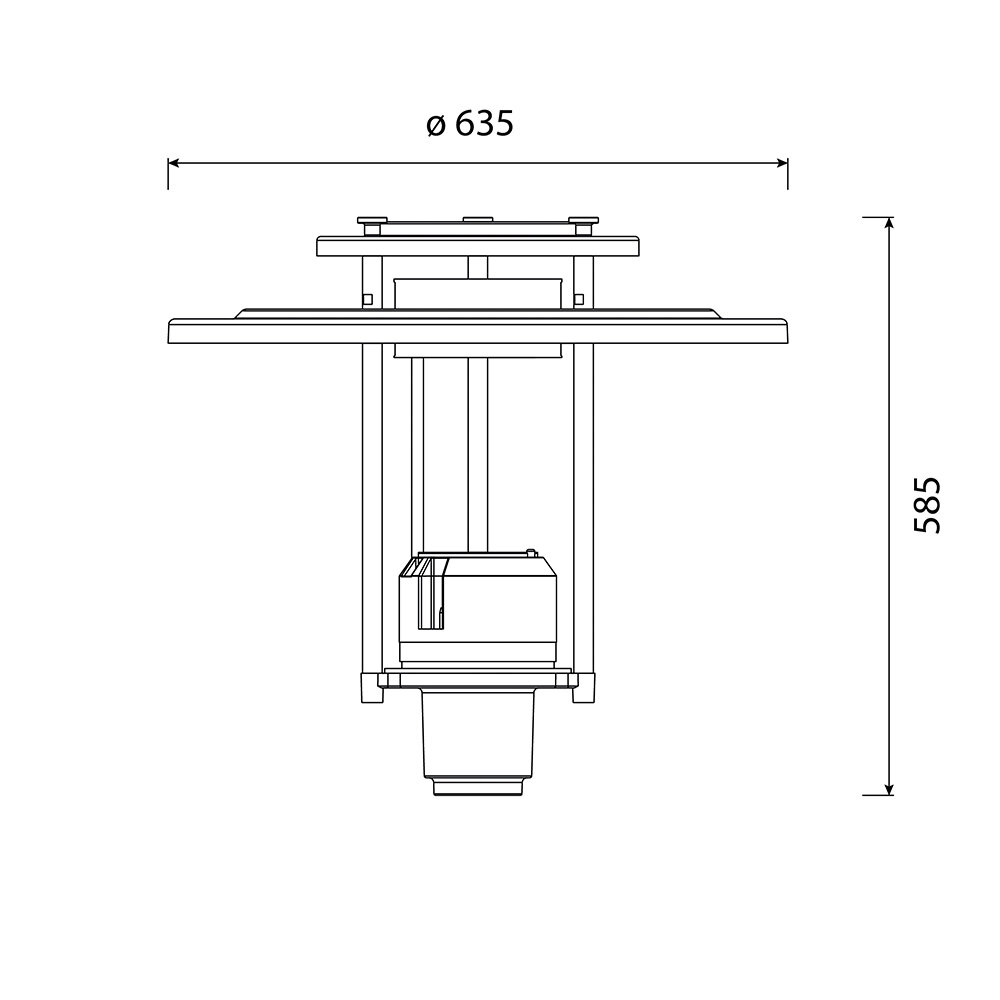

Drawing
