Surface mounted Wall-/Ceiling lum.TRENTO

12.12102.0V001 1X LED E27

Cylindrical luminaire body made of aluminium. Luminaire enclosure made of PMMA, frosted, with aluminium edge protection. Light colour: 3000K/4000K. Protection rating I.


Surface mounted Wall-/Ceiling lum.TRENTO

Surface mounted Wall-/Ceiling luminaire TRENTO
Housing made of aluminium ø 140 mm
Surface natural anodised
Cover of polyacrylic glass (PMMA)
Elec. equip.: 1xE27 socket for LED lamps (max. 250V)
Without lamp (LED Classic E27)
Ingress protection IP54, protection rating I
Connection: 3 x 2,5 mm² inside the luminaire


Technical specifications

Ingress protection
IP54
Safety class
I
ULOR
56,2%
IK-Value
IK04
Height [mm]
168
Area exposed to wind
0,027 m²

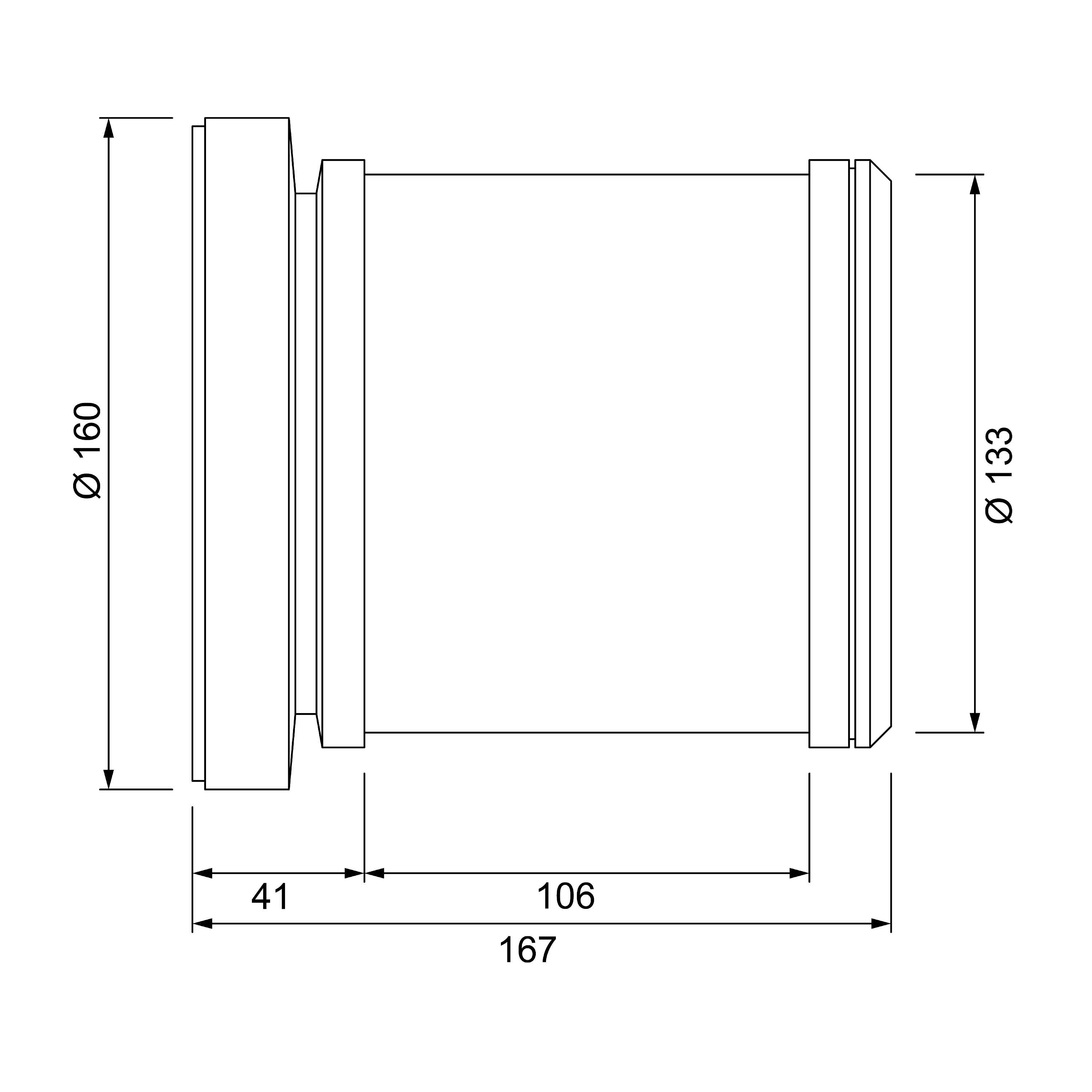

Drawing


Downloads

General

Installation instructions

Planning

Graphic with dimensions
3D DWG
